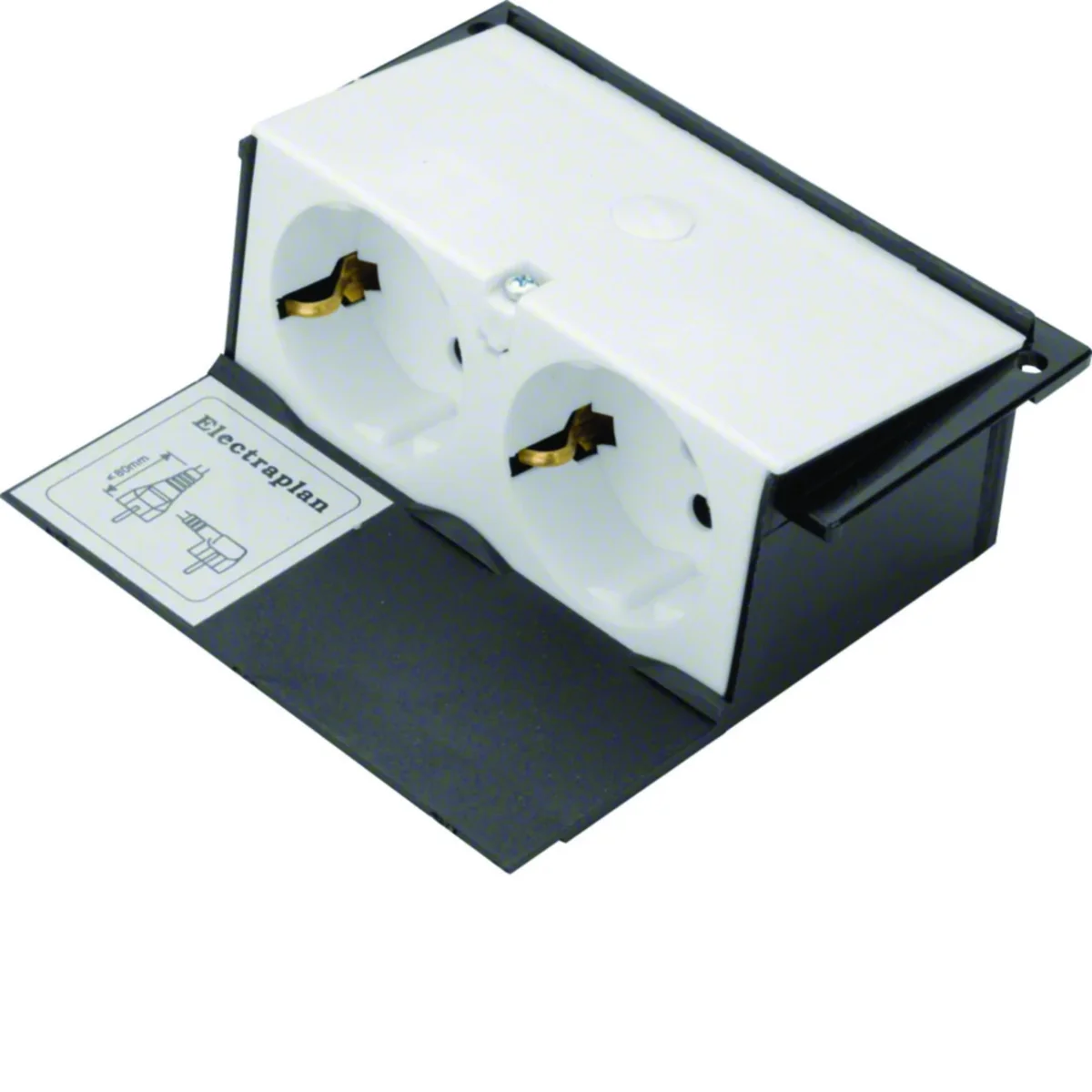

TEHALIT.VE-EE Housing with two SCHUKO sockets KDQ08/KDE04 white GBES29010

Índice local:
MGE008TEHA
Número de catálogo:
GBES29010
Código EAN:
4012002246207
Fabricante: TEHALIT
Halogen free: Yes
Depth [mm]: 45
Number of sockets: 2
Precio:
80,91 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Housing from the tehalit.VE-EE series. The product part number is GBES29010.



FEATURES



  • < strong>With two grounded SCHUKO sockets.
  • Color white.
  • Rated current 16A.< /li>
  • Rated voltage 230V.
  • Number of cable entries: 2.
  • Number of strain reliefs: 2 .
  • Number of built-in devices: 2.
  • For hinged covers KDQ08 and KDE04.

Datos técnicos

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    For floors
  • Height [mm]
    118
  • Standard
    European
  • PKWIU
    27.33.13.0
  • Depth [mm]
    45
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    TEHALIT.VE-EE
  • Width [mm]
    108
  • Ground
    schuko
  • Backlight
    NO
  • On the DATA key
    NO

Otros datos técnicos

  • Number of appliances to build in
    2
  • Length
    118 mm
  • Depth
    45 mm
  • Mounting method installation unit
    Snap
  • Material
    Other
  • Number of conduit inlets
    2
  • Width
    108 mm
  • Model
    Support shape
  • Number of strain relieves
    2

Detalles del fabricante

Empaquetado a granel

una especie de paquete Karton Paleta Karton Paleta
Cantidad 68 uds. 272 uds. 68 uds. 272 uds.
Peso (kg) 9,856 64,424 9,856 64,424
Ancho (m) 0,100 0,800 0,100 0,800
Longitud (m) 0,040 1,050 0,040 1,050
Profundidad (m) 0,120 1,200 0,120 1,200
