TEHALIT.GB-EG Socket 2P+E 33° 3-way 45x45mm halogen-free orange EER3332004
local index:
MGE065TEHA
Catalog No:
EER3332004
EAN code:
4012002245453
Price:
15,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

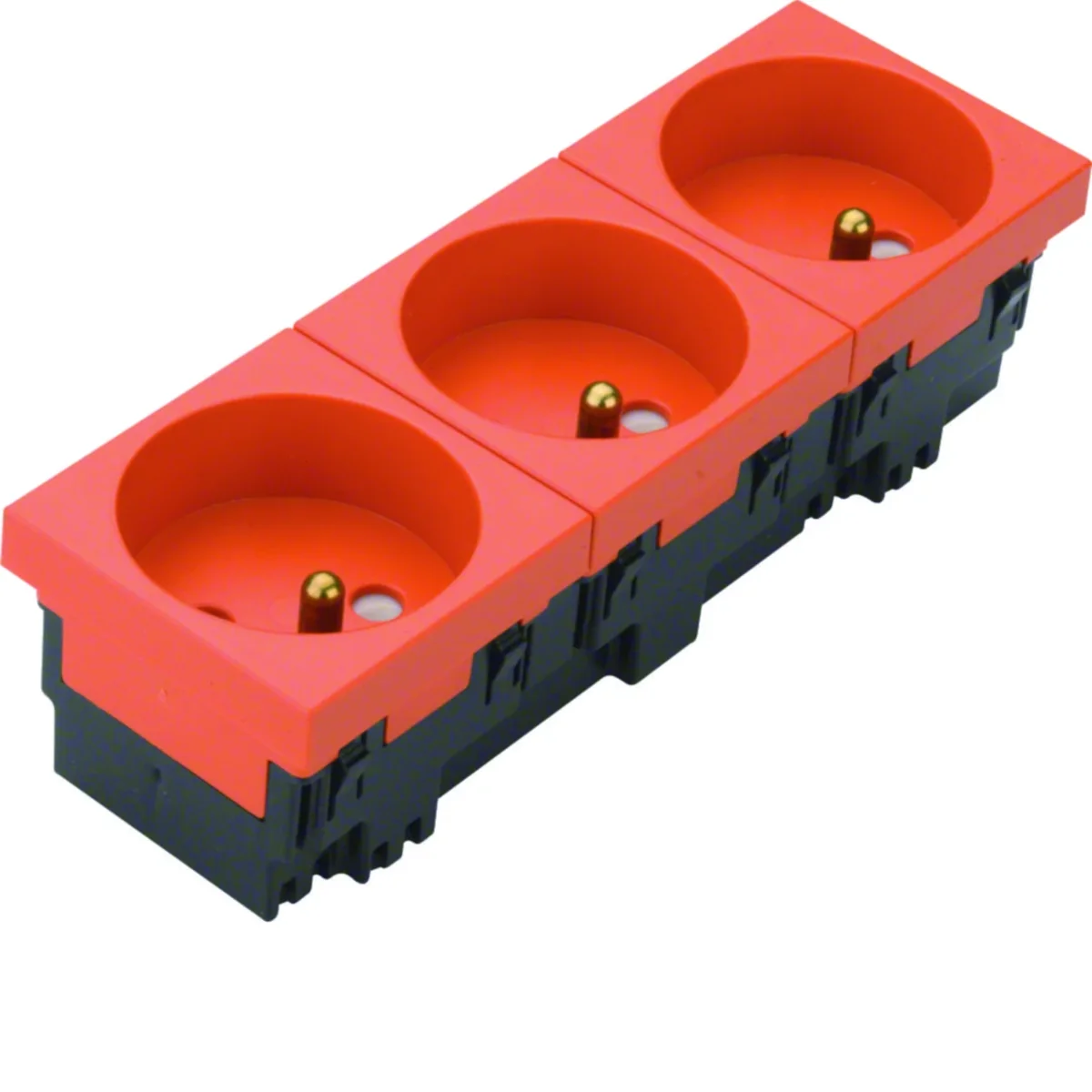

Electrical socket of the tehalit.GB-EG series, from the manufacturer Hager. The product catalog number is EER3332004 .
FEATURES
- Triple.
- 2P+Z.
- Earth; ground pin.
- Extended contact protection.
- Color orange.
- Rated current < strong>16A.
- Rated voltage 230V.
- Ingress protection IP20.
- Installation dimensions of a single socket 45 x 45 mm.
- Snap-on assembly.
- Clamp connection.
- Central insert twisted (33°).
- Number of available phases: 1.
Technical data
-
Halogen freeYes
-
Number of sockets3
-
ColorOrange
-
MaterialPlastic
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
Type45x45
-
GroundHurt
-
Surface protectionNatural
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
PKWIU27.33.13.0
-
Depth [mm]40
-
Number of modules6
-
ShapeRectangular
-
InstallationBuilt-in
-
Rated current [A]16
-
FamilyTEHALIT.GB-EG
-
Width [mm]45
-
Connection typeQuick Connect
-
Height [mm]135
-
Surface finishmatte
-
Conductor cross-section (wire) [mm²]1.5 / 2.5
-
Shutters of current pathsYes
-
Exact materialThermoplastic
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyYes
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)6
-
Number of phases1
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)2004
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyAdditional safety power supply (red)
-
MaterialOther
-
Halogen freeYes
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertYes
-
Nominal voltage250 V
-
Suitable for degree of protection (IP)IP20
-
Device height135 mm
-
Min. depth of built-in installation box45 mm
-
Protective contactYes
-
Number of active contacts (round)2
-
With signal lampNo
-
Number of units3
-
Number of socket outlets switchable0
-
Connection typePush-in clamp
-
With enhanced contact protectionYes
-
ColourOrange
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodOther
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionYes
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Device width45 mm
-
Device depth40 mm
Bulk packaging
| A kind of package | Karton | Paleta | |
| Quantity | 1 pcs. | 6 pcs. | 1440 pcs. |
| Weight (kg) | 0,107 | 0,754 | 205,960 |
| Width (m) | 0,045 | 0,180 | 0,800 |
| Length (m) | 0,037 | 0,100 | 1,050 |
| Depth (m) | 0,135 | 0,250 | 1,200 |
