el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic
el12 Electrical equipment Sockets Electric sockets
el12 sale Get in the game - HAGER

TEHALIT.GB-EG SCHUKO socket 33° 2-way 45x45mm halogen-free orange ESR2332004

local index:
MGE071TEHA
Catalog number:
ESR2332004
EAN code:
4012002245996

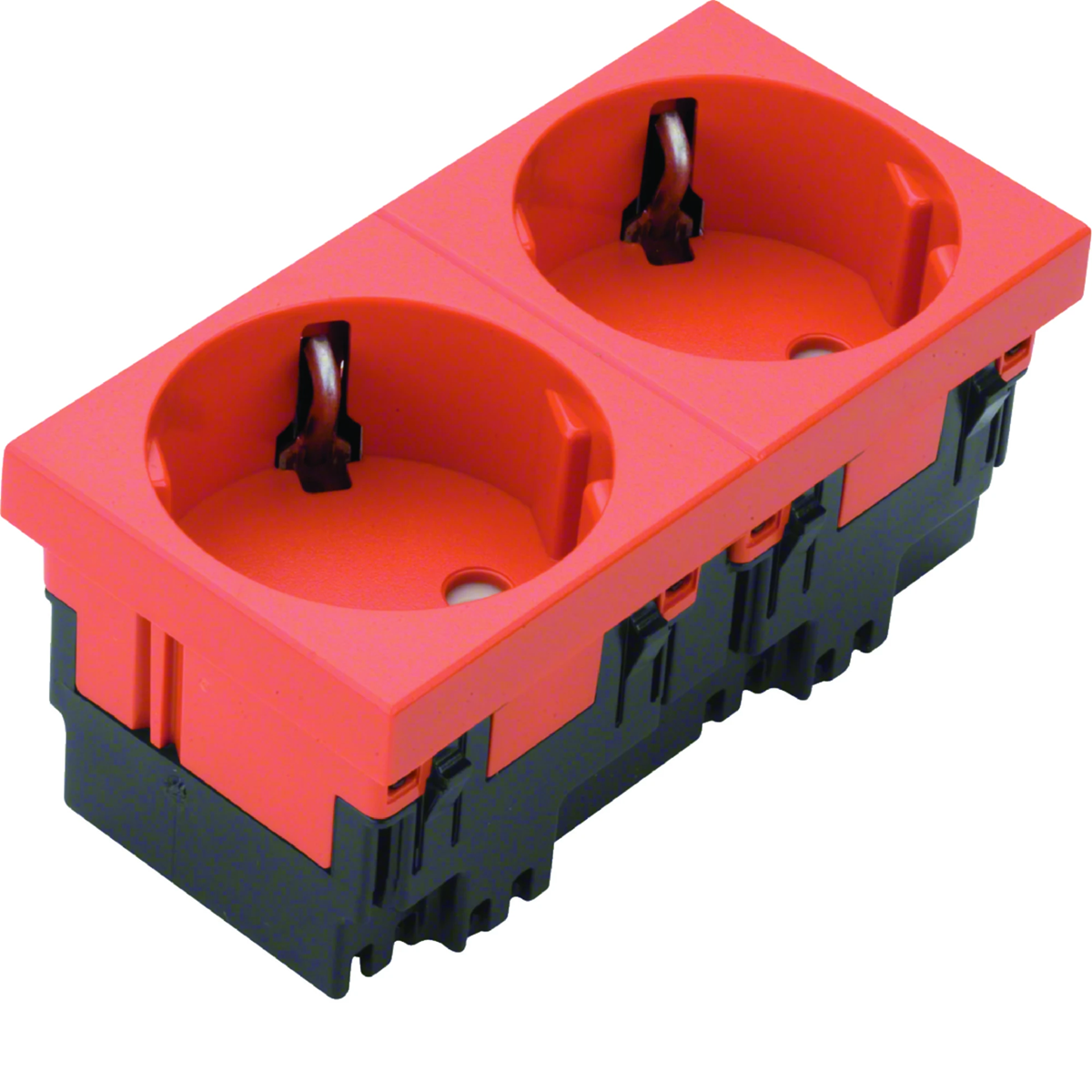

TEHALIT.GB-EG SCHUKO socket 33° 2-way 45x45mm halogen-free orange
TEHALIT.GB-EG SCHUKO socket 33° 2-way 45x45mm halogen-free orange

Click on the photo to enlarge

Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 40
Number of sockets: 2
See full description
Price:
53,00 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Electrical socket of the tehalit.GB-EG series, from the manufacturer Hager. The product catalog number is ESR2332004 .



FEATURES

  • Double.
  • 4 modules.
  • With SCHUKO ground.
  • Extended contact protection.
  • Color < strong>orange.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Single socket mounting dimensions 45 x 45 mm.
  • Clip-on mounting.
  • Clamp connection.
  • Turned center insert (33°).
  • Number of available phases: 1.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Color
    Orange
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    45x45
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    40
  • Number of modules
    4
  • Shape
    Square
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    TEHALIT.GB-EG
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    90
  • Surface finish
    matte
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Socket outlet CEE 7/3 (type F)
  • Protective contact
    Earthing clips
  • Number of active contacts (flat)
    0
  • Mounting direction
    Horizontal and vertical
  • With signal lamp
    No
  • Number of ports USB-C
    0
  • Number of modules (module system)
    4
  • Number of phases
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Orange
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Additional safety power supply (red)
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • Number of loop throughs
    1
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK00
  • Device height
    90 mm
  • Min. depth of built-in installation box
    45 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
  • With built-in bluetooth speaker
    No
  • Compliant with UK Building Regulations Part M
    No
  • Concurrently switching neutral conductor
    No
  • Number of active contacts (round)
    2
  • Number of active contacts (square)
    0
  • Assembly arrangement
    Basic element with housing top
  • Number of ports USB-A
    0
  • Max. current rating of USB power supply
    0 A
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    2004
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Other
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With loop through function
    Yes
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    45 mm
  • Device depth
    40 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • With Wi-Fi signal repeater
    No
  • For heavy conditions according to VDE
    No

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta Karton Pakiet Paleta
Quantity 10 pcs. 200 pcs. 1600 pcs. 10 pcs. 200 pcs. 1600 pcs.
Weight (kg) 0,778 16,230 152,840 0,778 16,230 152,840
Width (m) 0,180 0,330 0,800 0,180 0,330 0,800
Length (m) 0,050 0,340 1,050 0,050 0,340 1,050
Depth (m) 0,230 0,550 1,200 0,230 0,550 1,200
