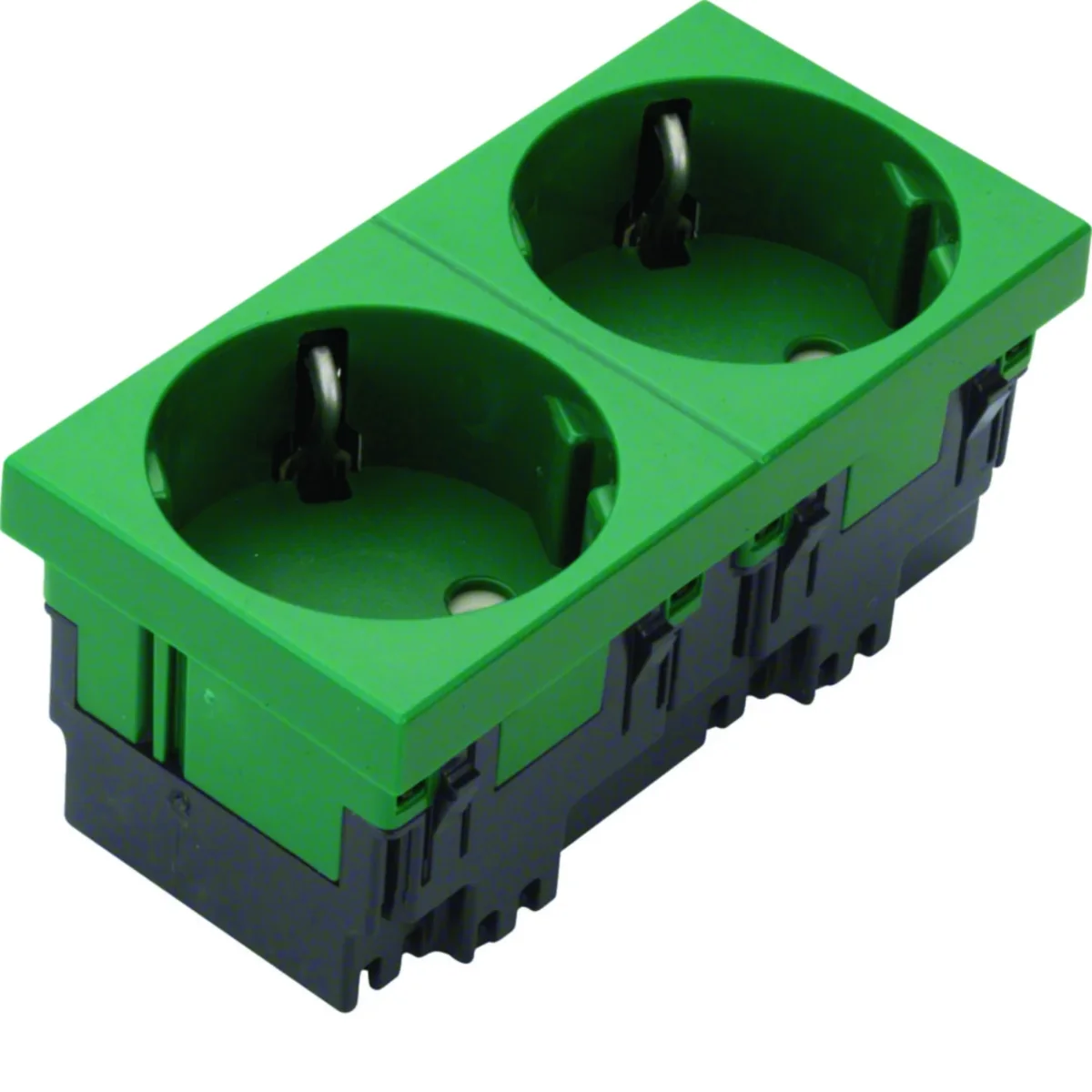

TEHALIT.GB-EG SCHUKO socket 33° 2-way 45x45mm halogen-free green ESR2336029

local index:
MGE072TEHA
Catalog No:
ESR2336029
EAN code:
4012002246009
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 40
Number of sockets: 2
Price:
11,89 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electrical socket of the tehalit.GB-EG series, from the manufacturer Hager. The product catalog number is ESR2336029 .



FEATURES

  • Double.
  • 4 modules.
  • With SCHUKO ground.
  • Extended contact protection.
  • Color < strong>green.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Single socket mounting dimensions 45 x 45 mm.
  • Clip-on mounting.
  • Clamp connection.
  • Turned center insert (33°).
  • Number of available phases: 1.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Color
    Green
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    45x45
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    40
  • Number of modules
    4
  • Shape
    Square
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    TEHALIT.GB-EG
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    90
  • Surface finish
    matte
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    4
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    6029
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Safety power supply (green)
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    90 mm
  • Min. depth of built-in installation box
    45 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    2
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Green
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Device width
    45 mm
  • Device depth
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 200 pcs. 1600 pcs.
Weight (kg) 0,070 0,774 16,274 155,192
Width (m) 0,045 0,190 0,330 0,800
Length (m) 0,040 0,050 0,340 1,050
Depth (m) 0,090 0,230 0,560 1,200
