TEHALIT.GB-EG SCHUKO socket 33° 1-way 45x45mm halogen-free orange ESR1332004

local index:
MGE068TEHA
Catalog No:
ESR1332004
EAN code:
4012002245934
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 40
Number of sockets: 1
Price:
7,92 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

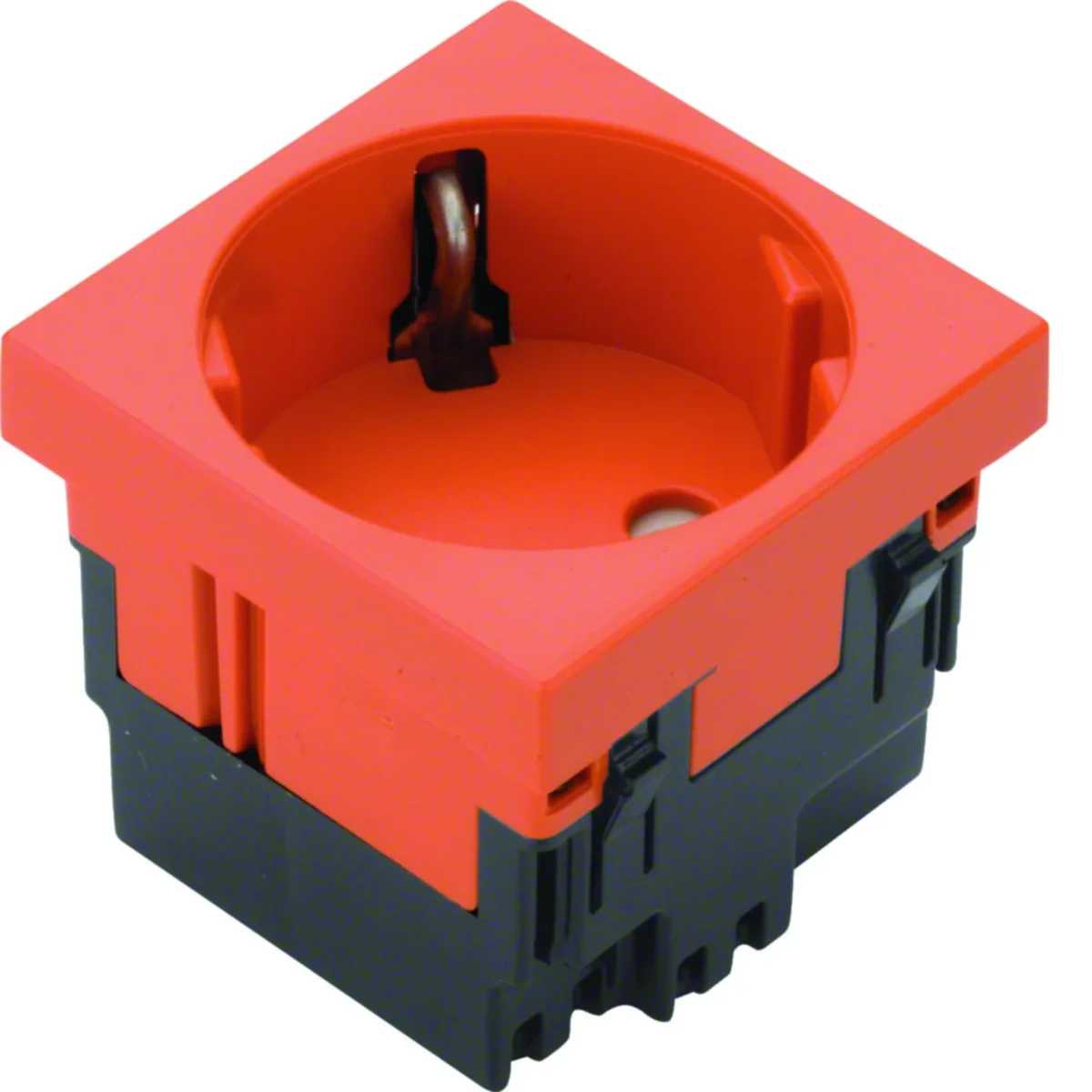

Electrical socket of the tehalit.GB-EG series, from the manufacturer Hager. The product catalog number is ESR1332004 .



FEATURES

  • Single.
  • With SCHUKO grounding.
  • Extended contact protection.
  • Color orange.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting dimensions of a single socket 45 x 45 mm.
  • Snap-on assembly.
  • Clamp connection.
  • Central insert twisted ( 33°).
  • Number of available phases: 1.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Color
    Orange
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    45x45
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    40
  • Number of modules
    2
  • Shape
    Square
  • Installation
    Built-in
  • Rated current [A]
    16
  • Family
    TEHALIT.GB-EG
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    45
  • Surface finish
    matte
  • Conductor cross-section (wire) [mm²]
    1.5 / 2.5
  • Shutters of current paths
    Yes
  • Exact material
    Thermoplastic

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    2
  • Number of phases
    1
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    2004
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    Additional safety power supply (red)
  • Material
    Other
  • Halogen free
    Yes
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    45 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With signal lamp
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    Orange
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Other
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Device width
    45 mm
  • Device depth
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 20 pcs. 400 pcs. 8800 pcs.
Weight (kg) 0,038 0,785 16,080 376,760
Width (m) 0,045 0,185 0,340 0,800
Length (m) 0,040 0,045 0,340 1,050
Depth (m) 0,045 0,230 0,540 1,200
