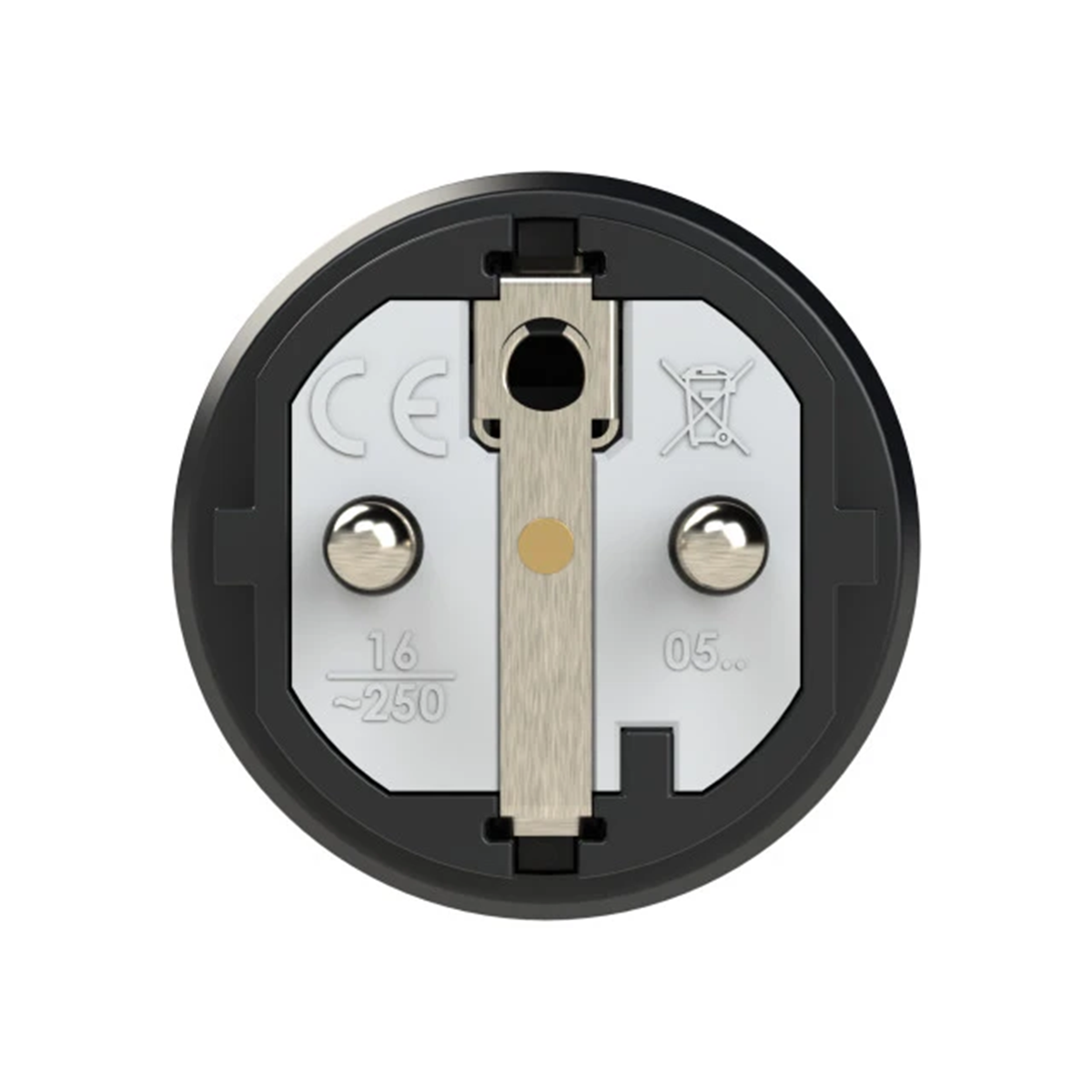

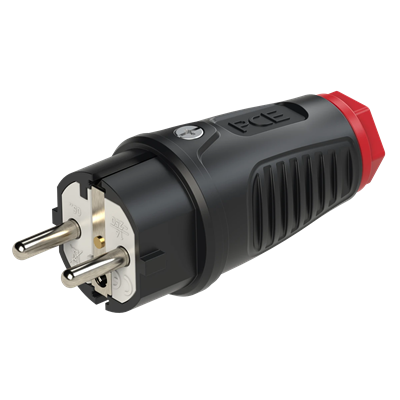

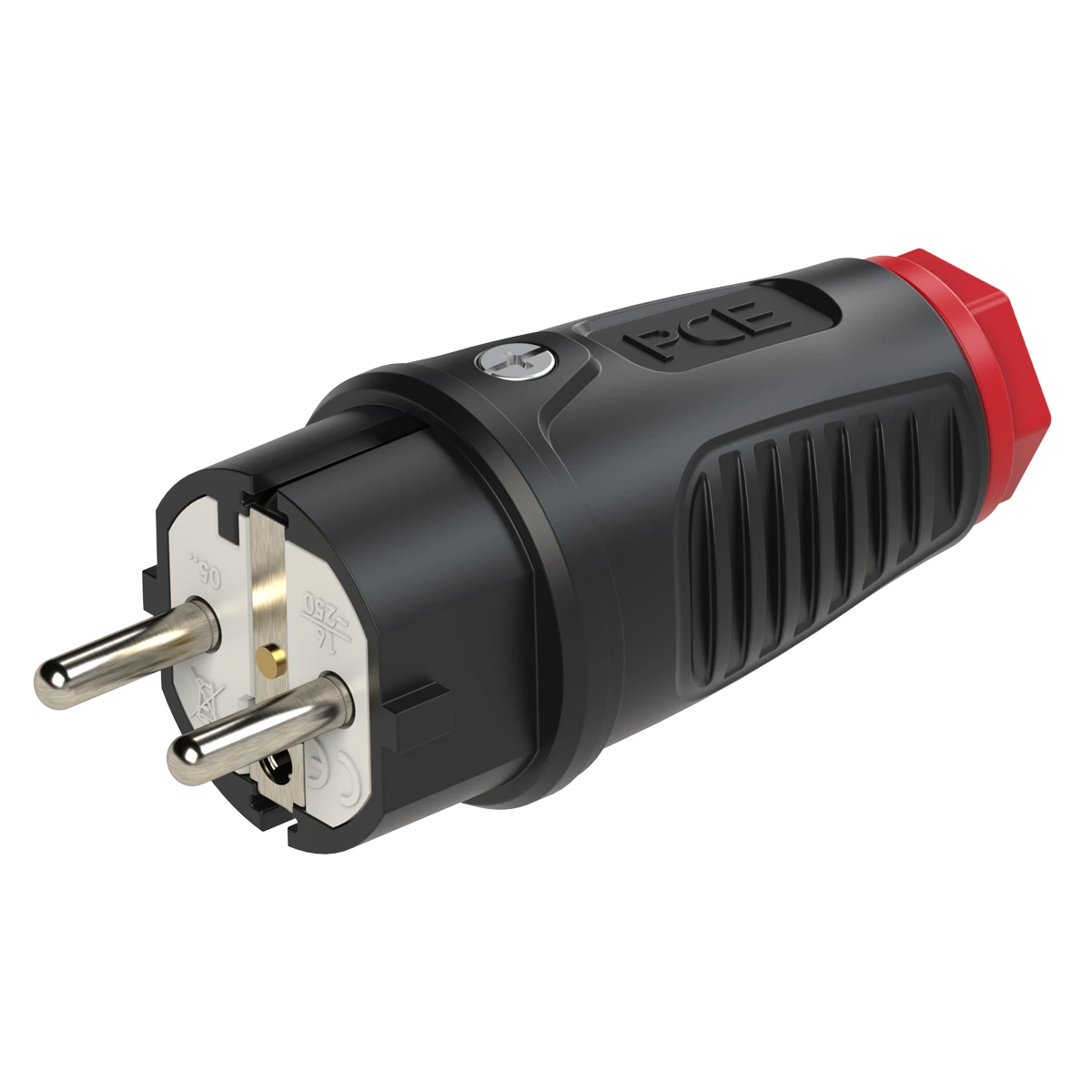

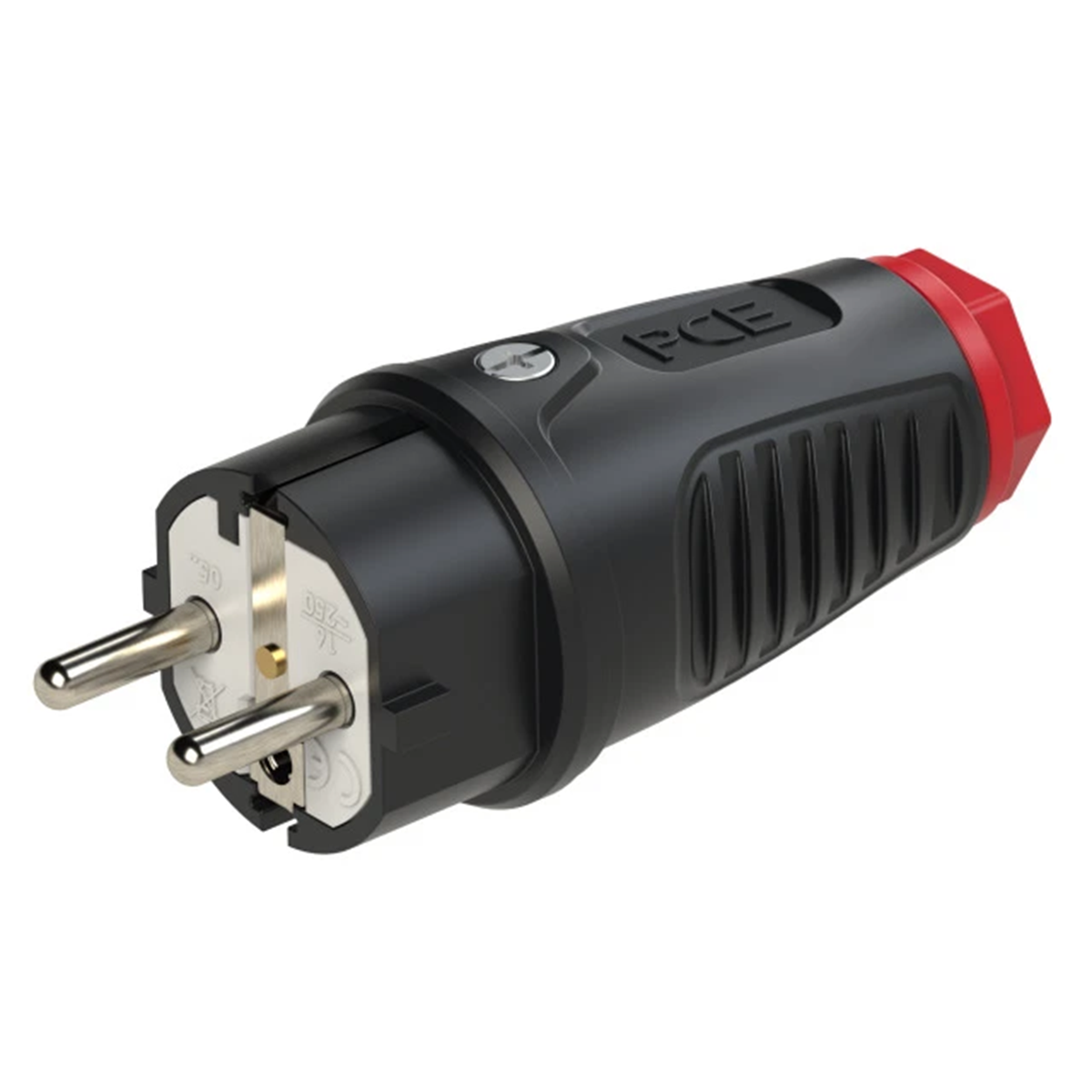

TAURUS2 Rubber plug 16A 2P+E 230V uni-schuko IP54 black 0521-SR

Index local:
MKE007PCEQ
Numéro de catalogue:
0521-SR
Code EAN:
9003399465208
Producteur: PCE
Length [mm]: 102
Color: Black
Material: Housing: Rubber, Insert: Polyamide
Prix:
13,92 zł
gross / pcs.
(y compris la TVA 23%)
Accessible 2147 pcs.
Ramassage en 1h
Livraison en 3h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

The TAURUS series of portable plugs and sockets from PCE has stood for robustness and reliability since 2012. This successful family of products, used millions of times, has taken its strengths to the next generation. The new TAURUS2 impresses with its modern design and extraordinary versatility. The functional design guarantees simple and quick assembly and easy operation.

  • Modern, aesthetic and ergonomic design
  • Optimized grip area - an ideal grip for safe plugging in and out
  • Solid rubber housing (TPE)
  • Optimum cable entry with anti-kink protection (membrane seal)
  • Reinforcement ring (prolongs cable entry life)
  • Easy body disassembly
  • Easy assembly and disassembly of the current section
  • Internal cable clamp
  • Easy to use clamp elements
  • All screws are easily accessible from one side
  • PE terminal placed centrally (no need to shorten wires (L and N)
  • Funnel-shaped cable entry

Données techniques

  • Length [mm]
    102
  • Material
    Housing: Rubber, Insert: Polyamide
  • Rated current [A]
    16
  • Level of security
    IP54
  • Diameter [mm]
    42
  • Ground
    Uni-schuko
  • Color
    Black
  • Rated voltage [V]
    230
  • Family
    TAURUS2
  • Contact
    2P+Z
  • Type
    Straight
  • PKWIU
    27.33.13.0

Autres données techniques

  • Model
    Hybrid plug CEE 7/7 (type E/F)
  • Protective contact
    Earthing clips

Détails du fabricant

  • Producteur
    PCE Polska Sp. z o.o.
  • Adresse
    58-200 Dzierżoniów Podwalna 8A Polska
