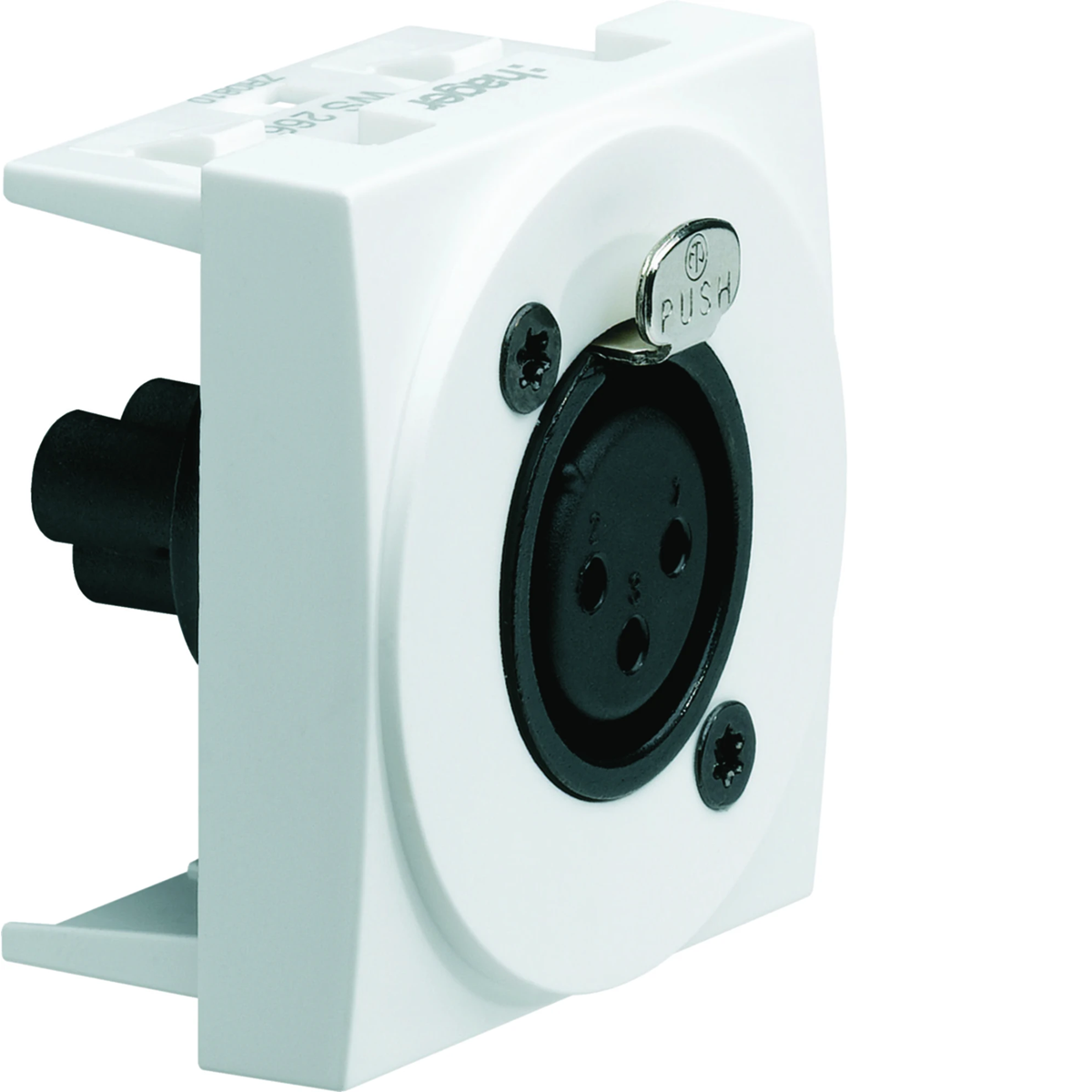

SYSTO XLR audio jack female screw terminals 2 modules white WS266

local index:
MGG002TEHA
Catalog No:
WS266
EAN code:
3250617082662
Manufacturer: TEHALIT
Depth [mm]: 35
Number of sockets: 1
Number of modules: 2
Price:
67,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

XLR socket of the systo series. The product part number is WS266.

 < /p>

FEATURES

  • XLR female audio jack.
  • Clamp connection.



< h3>SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. XLR socket< /strong> characterize the features of this unique series.

Technical data

  • Depth [mm]
    35
  • Number of modules
    2
  • Shape
    Square
  • Installation
    Flush-mounted
  • Family
    SYSTEM
  • Width [mm]
    45
  • Height [mm]
    45
  • Backlight
    NO
  • Variant
    XLR
  • Exact material
    PC
  • Number of sockets
    1
  • Color
    White
  • Material
    Plastic
  • Type
    speaker
  • Level of security
    IP20
  • Type
    45x45
  • Surface finish
    Matt satin
  • Terminal type
    Threaded
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Utilization
    XLR
  • With dust cover
    No
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    2
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    45 mm
  • Device depth
    35 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,039 0,055 4,000 116,000
Width (m) 0,045 0,067 0,321 0,800
Length (m) 0,035 0,061 0,221 1,106
Depth (m) 0,045 0,074 0,378 1,200
