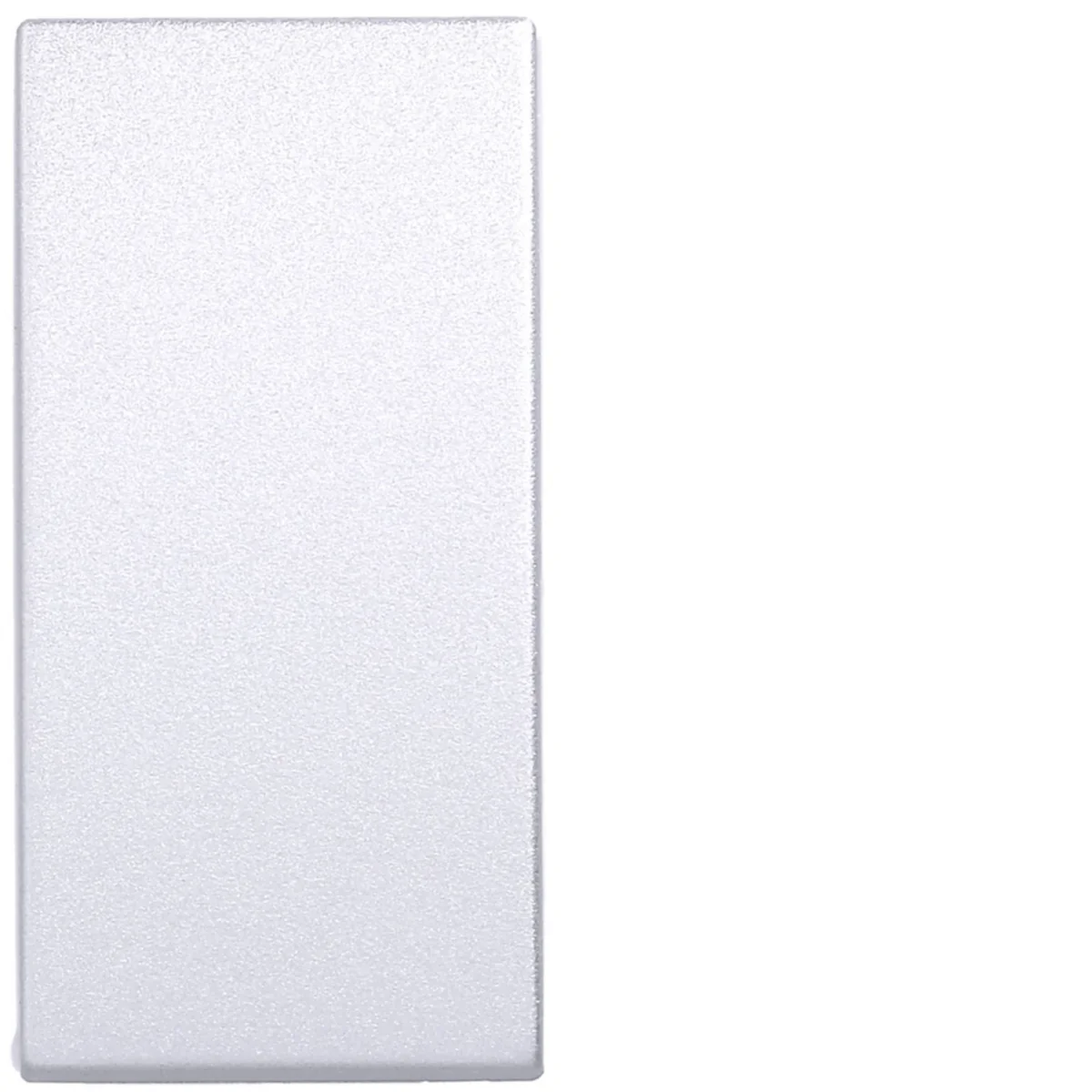

SYSTO Universal stair switch 1 module 10A/230V aluminum WS012T

local index:
MOS008TEHA
Catalog No:
WS012T
EAN code:
3250617140126
Manufacturer: TEHALIT
Depth [mm]: 33
Number of keys: 1
Number of modules: 1
Price:
8,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Universal switch from the  systo series. The product catalog number is WS012T.

  ;

FEATURES

  • 1M.
  • Single key.
  • Quick Connect.
  • Contact type : 2-way.
  • Number of modules for WA: 1.



SERIES DESCRIPTION

< p>systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Universal connector characterize the features of this unique series.

Technical data

  • Depth [mm]
    33
  • Number of modules
    1
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Stairs Single
  • Level of security
    IP31D
  • Type
    45x45
  • Surface protection
    varnishing
  • Accurate color
    Aluminum
  • Exact material
    PC
  • Number of keys
    1
  • Color
    Silver
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    SYSTEM
  • Width [mm]
    22.5
  • Height [mm]
    45
  • Degree of mechanical protection
    IK07
  • Backlight
    NO
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with central cover plate
  • Push button switch
    No
  • Type of fastening
    Engage (snap)
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Aluminium
  • Label space/information surface
    No
  • Function lighting
    Other
  • Suitable for degree of protection (IP)
    IP31
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Device width
    22 mm
  • Device depth
    33 mm
  • Min. depth of built-in installation box
    40 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9006
  • Illumination
    No
  • Type of lighting
    Other
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device height
    45 mm
  • Built-in depth
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 240 pcs. 5760 pcs.
Weight (kg) 0,020 0,236 5,964 163,136
Width (m) 0,022 0,055 0,306 0,800
Length (m) 0,045 0,055 0,210 1,050
Depth (m) 0,033 0,290 0,356 1,200
