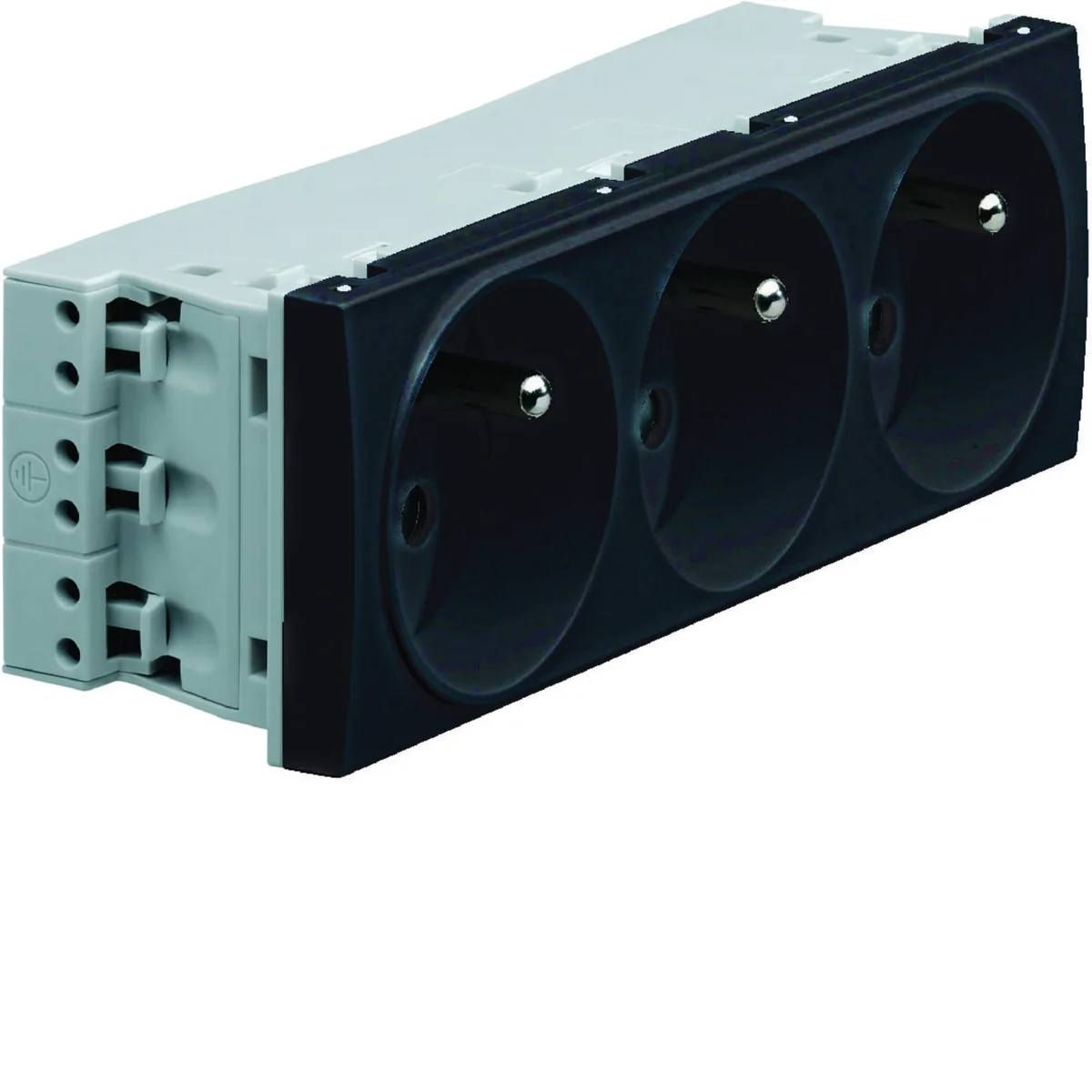

SYSTO Through-socket with grounding 3x(2P+E) self-clamping 6 modules 16A/230V black WS123N

local index:
MGE114TEHA
Catalog No:
WS123N
EAN code:
3250617111232
Manufacturer: TEHALIT
Depth [mm]: 42.5
Number of sockets: 3
Number of modules: 6
Price:
35,52 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket of the  systo series. The product part number is WS123N.



FEATURES

  • 3 x 2P+Z.
  • Through-through.
  • Grounded; ground pin.
  • Self-clamps.
  • 6 modules.
  • Color black .
  • Rated current 16A.
  • Rated voltage 230V.
  • Phase branch : L1.



SERIES DESCRIPTION

systo is a series of electrical installation equipment which can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    42.5
  • Number of modules
    6
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP36
  • Type
    45x45
  • Ground
    Hurt
  • Surface finish
    matte
  • Terminal type
    Threadless
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    3
  • Color
    Black
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    135
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Other technical data

  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With enhanced contact protection
    No
  • Colour
    Black
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    3
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9005
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    135 mm
  • Device depth
    42.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,120 1,325 8,375 224,000
Width (m) 0,135 0,240 0,321 0,800
Length (m) 0,043 0,054 0,249 1,146
Depth (m) 0,045 0,285 0,372 1,200
