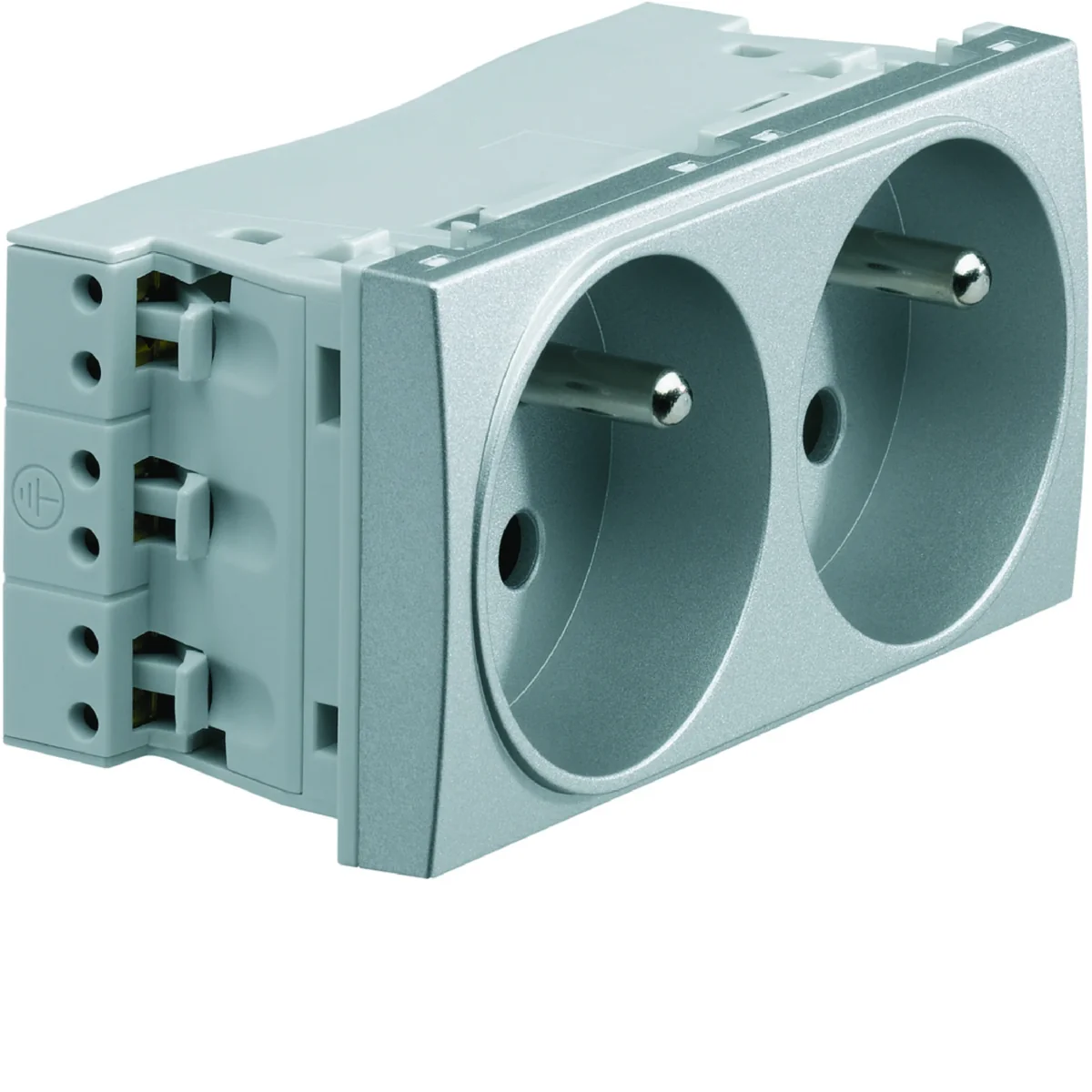

SYSTO Through-socket with grounding 2x(2P+E) self-locking 4 modules 16A/230V aluminum WS122T

Внутрішній артикул:
MGE110TEHA
№ каталоговий:
WS122T
Код EAN:
3250617141222
Виробник: TEHALIT
Depth [mm]: 42.5
Number of sockets: 2
Number of modules: 4
Ціна:
30,85 €
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 4 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

Electric socket of the systo series. The product part number is WS122T.



FEATURES

  • 2 x 2P+Z.
  • Through.
  • Grounded; ground pin.
  • Self clamps.
  • 4 modules.
  • Color aluminum.
  • Rated current 16A.
  • Rated voltage 230V.
  • Phase branch:  ;L1.
  • Surface: matt/satin.



SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.

Технічні дані

  • Depth [mm]
    42.5
  • Number of modules
    4
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP32
  • Type
    45x45
  • Ground
    Hurt
  • Accurate color
    Aluminum
  • Terminal type
    Threadless
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Color
    Silver
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    90
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Інші технічні дані

  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With enhanced contact protection
    No
  • Colour
    Aluminium
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    2
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9006
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    90 mm
  • Device depth
    42.5 mm

Об'ємна упаковка

Свого роду пакет Karton Pakiet Paleta
Кількість 1 шт. 10 шт. 80 шт. 1920 шт.
Вага (кг) 0,085 0,933 7,865 211,760
Ширина (м) 0,090 0,194 0,321 0,800
Довжина (м) 0,043 0,054 0,219 1,026
Глибина (м) 0,045 0,237 0,369 1,200
