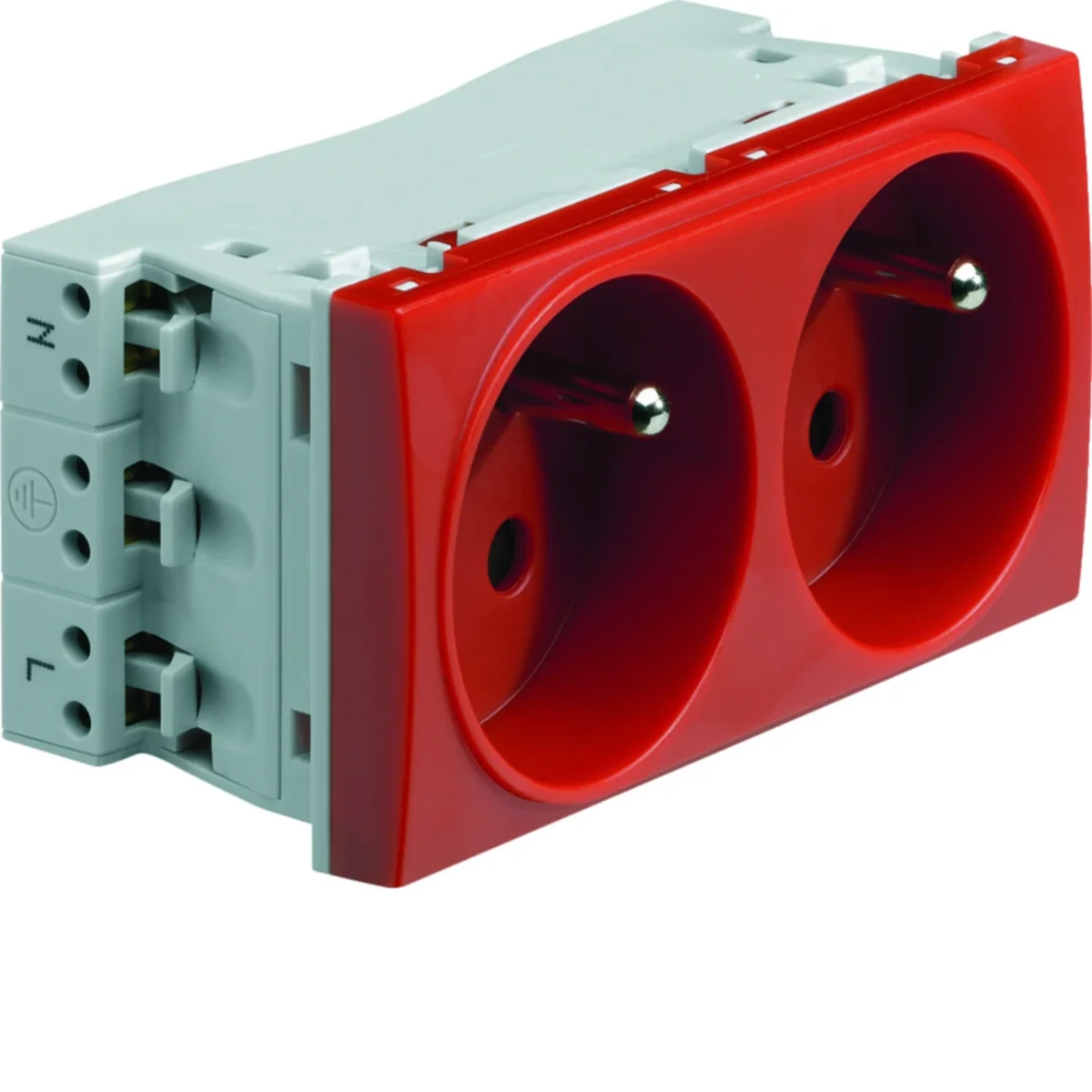

SYSTO Through-socket with grounding 2x(2P+E) self-clamping 4 modules 16A/230V red WS122R

local index:
MGE109TEHA
Catalog No:
WS122R
EAN code:
3250617110952
Manufacturer: TEHALIT
Depth [mm]: 42.5
Number of sockets: 2
Number of modules: 4
Price:
29,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Electric socket of the  systo series. The product part number is WS122R.



FEATURES

  • 2 x 2P+Z.
  • Through.
  • Grounded; ground pin.
  • Self-clamps.
  • 4 modules.
  • Color red.
  • Rated current 16A.
  • Rated voltage 230V.
  • Phase branch:  ;L1.



SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. The Electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    42.5
  • Number of modules
    4
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP31
  • Type
    45x45
  • Ground
    Hurt
  • Surface finish
    matte
  • Terminal type
    Threadless
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    2
  • Color
    Red
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    90
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Other technical data

  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With enhanced contact protection
    No
  • Colour
    Red
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Mounting method
    Wall duct
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    90 mm
  • Device depth
    42.5 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    2
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    3020
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 80 pcs. 1920 pcs.
Weight (kg) 0,085 0,920 7,740 210,760
Width (m) 0,090 0,195 0,315 0,800
Length (m) 0,043 0,050 0,215 1,050
Depth (m) 0,045 0,235 0,360 1,200
