SYSTO Stair switch with backlight option 1 module 10A/230V white WS013

Name: SYSTO Stair switch with backlight option 1 module 10A/230V white
Brand: TEHALIT
SKU: MOS009TEHA
Price: 9.88 PLN

local index:

MOS009TEHA

Catalog No:

WS013

EAN code:

3250617080132

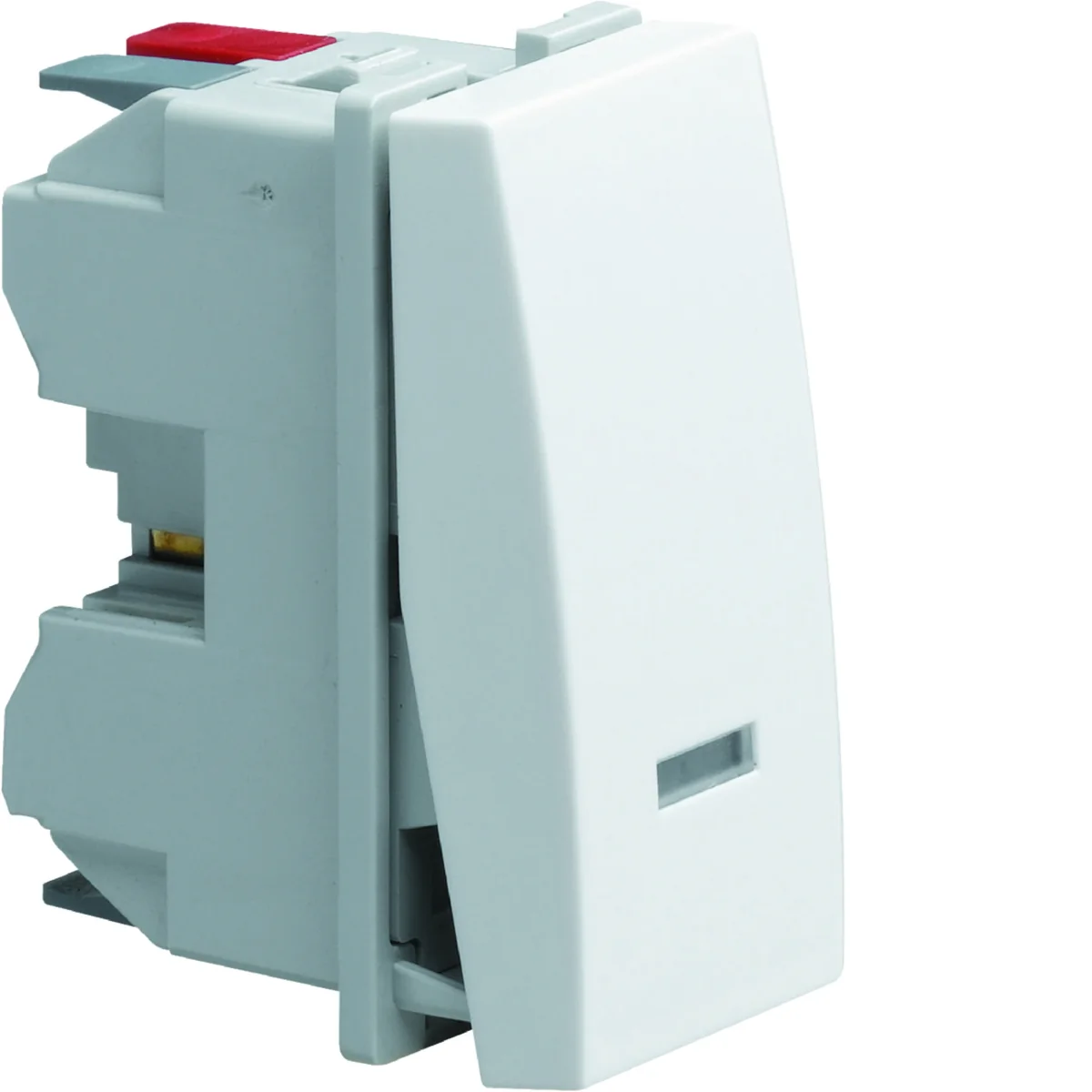

SYSTO Stair switch with backlight option 1 module 10A/230V white

Click on the photo to enlarge

Manufacturer: TEHALIT

Depth [mm]: 33

Number of keys: 1

Number of modules: 1

See full description

Price:

9,88 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 10 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Stair switch from the systo series. The product catalog number is WS013.

;

FEATURES

Backlight option.
1M.
Single key.
Quick Connect < /li>

SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Stair switch characterize the features of this unique series.

Technical data

Depth [mm]

33
Number of modules

1
Shape

Rectangular
Rated voltage [V]

230
Type

stairs
Level of security

IP31D
Type

45x45
Degree of mechanical protection

IK07
Backlight

Yes
PKWIU

27.33.11.0

Number of keys

1
Color

White
Material

Plastic
Rated current [A]

10
Family

SYSTEM
Width [mm]

22.5
Height [mm]

45
Surface finish

matte
Exact material

PC

Other technical data

Wiring system

Two-way switch
Assembly arrangement

Basic element with central cover plate
Push button switch

No
Type of fastening

Engage (snap)
Material

Plastic
Surface protection

Lacquered
Colour

White
Label space/information surface

No
Function lighting

Illuminated (on)
Suitable for degree of protection (IP)

IP31
Rated current

10 A
Feedback-signal contact

Yes
Device width

22 mm
Device depth

33 mm
Min. depth of built-in installation box

40 mm

Method of operation

Rocker/button
Number of modules (module system)

1
Mounting method

Flush-mounted
With mounting plate

No
Material quality

Thermoplastic
Surface finishing

Matt
RAL-number (similar)

9010
Illumination

Yes
Type of lighting

LED exchangeable
Nominal voltage

250 V
Switching current for fluorescent lamps

10 AX
Connection type

Push-in clamp
Device height

45 mm
Built-in depth

40 mm

Manufacturer details

Bulk packaging

A kind of package		Karton	Pakiet	Paleta
Quantity	1 pcs.	10 pcs.	240 pcs.	5760 pcs.
Weight (kg)	0,023	0,240	6,130	170,120
Width (m)	0,022	0,060	0,315	0,800
Length (m)	0,045	0,055	0,215	1,050
Depth (m)	0,033	0,295	0,360	1,200
