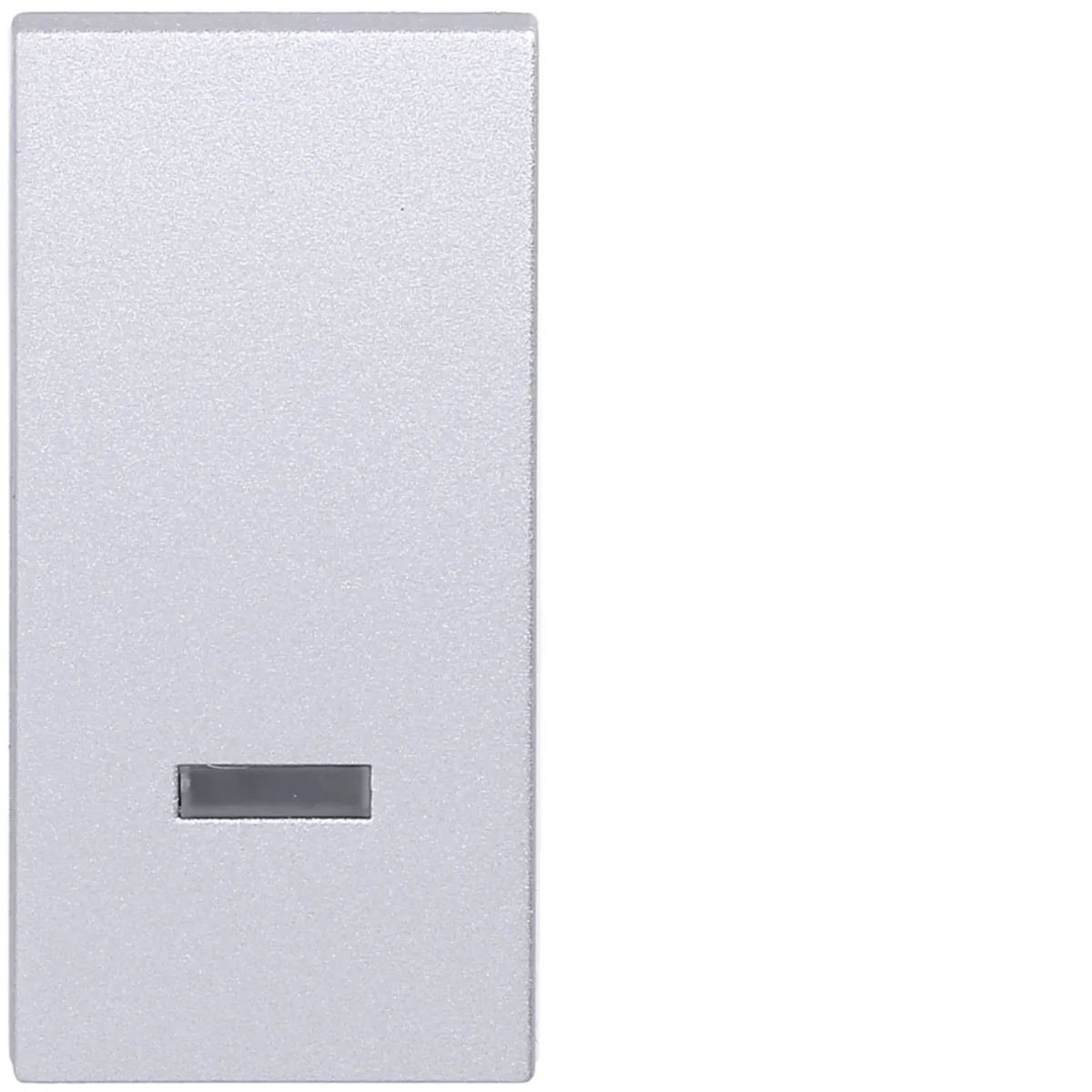

SYSTO Stair switch with backlight option 1 module 10A/230V aluminum WS013T
local index:
MOS010TEHA
Catalog No:
WS013T
EAN code:
3250617140133
Price:
13,39 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Rotary switch from the systo series. The product catalog number is WS013T.
;
FEATURES
- Backlight option.
- 1M.
- Single key.
- Quick Connect < /li>
SERIES DESCRIPTION
systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Stair switch characterize the features of this unique series.
Technical data
-
Depth [mm]33
-
Number of modules1
-
ShapeRectangular
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP31D
-
Type45x45
-
Surface protectionvarnishing
-
Accurate colorAluminum
-
Exact materialPC
-
Number of keys1
-
ColorSilver
-
MaterialPlastic
-
Rated current [A]10
-
FamilySYSTEM
-
Width [mm]22.5
-
Height [mm]45
-
Degree of mechanical protectionIK07
-
BacklightYes
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with central cover plate
-
Push button switchNo
-
Type of fasteningEngage (snap)
-
MaterialPlastic
-
Surface protectionLacquered
-
ColourAluminium
-
Label space/information surfaceNo
-
Function lightingIlluminated (on)
-
Suitable for degree of protection (IP)IP31
-
Rated current10 A
-
Feedback-signal contactYes
-
Device width22 mm
-
Device depth33 mm
-
Min. depth of built-in installation box40 mm
-
Method of operationRocker/button
-
Number of modules (module system)1
-
Mounting methodFlush-mounted
-
With mounting plateNo
-
Material qualityThermoplastic
-
Surface finishingMatt
-
RAL-number (similar)9006
-
IlluminationYes
-
Type of lightingLED exchangeable
-
Nominal voltage250 V
-
Switching current for fluorescent lamps10 AX
-
Connection typePush-in clamp
-
Device height45 mm
-
Built-in depth40 mm
Bulk packaging
| A kind of package | Karton | Pakiet | Paleta | |
| Quantity | 1 pcs. | 10 pcs. | 240 pcs. | 5760 pcs. |
| Weight (kg) | 0,026 | 0,296 | 7,404 | 197,696 |
| Width (m) | 0,022 | 0,055 | 0,306 | 0,800 |
| Length (m) | 0,045 | 0,055 | 0,210 | 1,050 |
| Depth (m) | 0,033 | 0,290 | 0,356 | 1,200 |
