el12 Electrical equipment Sockets System sockets 45x45, CIMA, SIMON 500, Mosaic
el12 Electrical equipment Sockets Electric sockets

SYSTO Socket with grounding self-locking 2 modules 16A/230V aluminum WS100T

Indice locale:
MGE088TEHA
Numero di catalogo:
WS100T
Codice EAN:
3250617141000

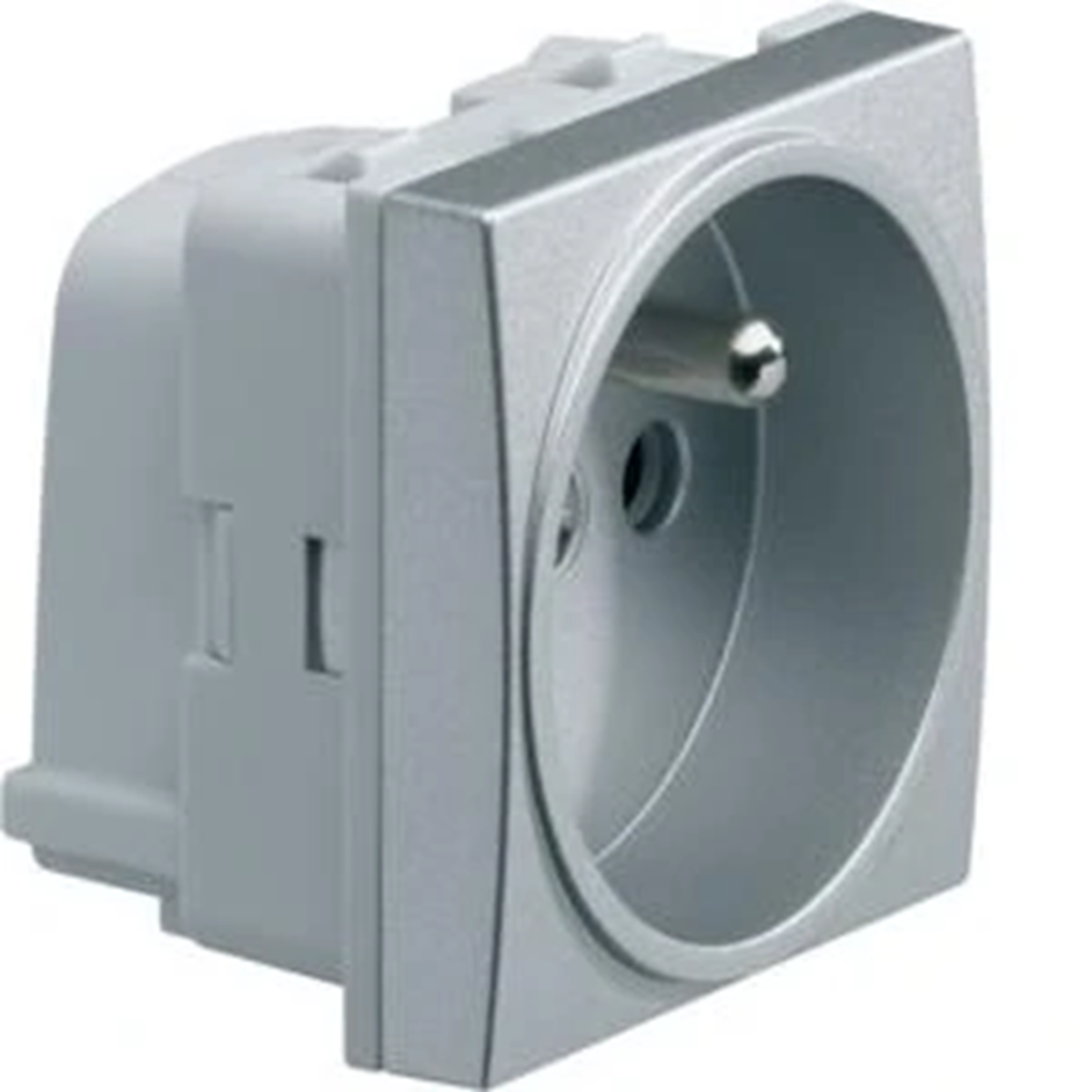

SYSTO Socket with grounding self-locking 2 modules 16A/230V aluminum
SYSTO Socket with grounding self-locking 2 modules 16A/230V aluminum

Clicca sulla foto per ingrandire

Produttore: TEHALIT
Depth [mm]: 37
Number of sockets: 1
Number of modules: 2
Vedi la descrizione completa
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Outlet
Prezzo:
8,60 €
gross / pezzi
(inclusa IVA 23%)
Prezzo più basso da 30 giorni prima dello sconto: 8,60 € gross
Lo storico dei prezzi di questo prodotto
1. 8,60 € gross / pezzi
2. Prezzo più basso da 30 giorni prima dello sconto: 8,60 €
3. Prezzo base: 24,24 €

1. Quanto costa oggi questo prodotto
2. Prezzo più basso da 30 giorni prima dello sconto
3. Prezzo base del prodotto
Prezzo base: 24,24 € gross
Consegna in 3 ore
Accessibile 1 pezzi
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa
Descrizione del prodotto Dati tecnici

Descrizione del prodotto

Socket of the  systo series. The product part number is WS100T.

 < /p>

FEATURES

  • Single.
  • Grounded; ground pin.
  • Self-clamps.
  • Color aluminum.
  • Rated current 16A< /strong>.
  • Rated voltage 230V.
  • Cross-section of a rigid conductor (wire) in the terminal: 1.5 / 2.5mm² .
  • Phase branch: L1.
  • Pole arrangement 2P+T.

  ;

SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.

Dati tecnici

  • Depth [mm]
    37
  • Number of modules
    2
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP2X
  • Type
    45x45
  • Ground
    Hurt
  • Accurate color
    Aluminum
  • Terminal type
    Threadless
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Color
    Silver
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    45
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Altri dati tecnici

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    2
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    Aluminium
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9006
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    45 mm
  • Device depth
    22.8 mm
