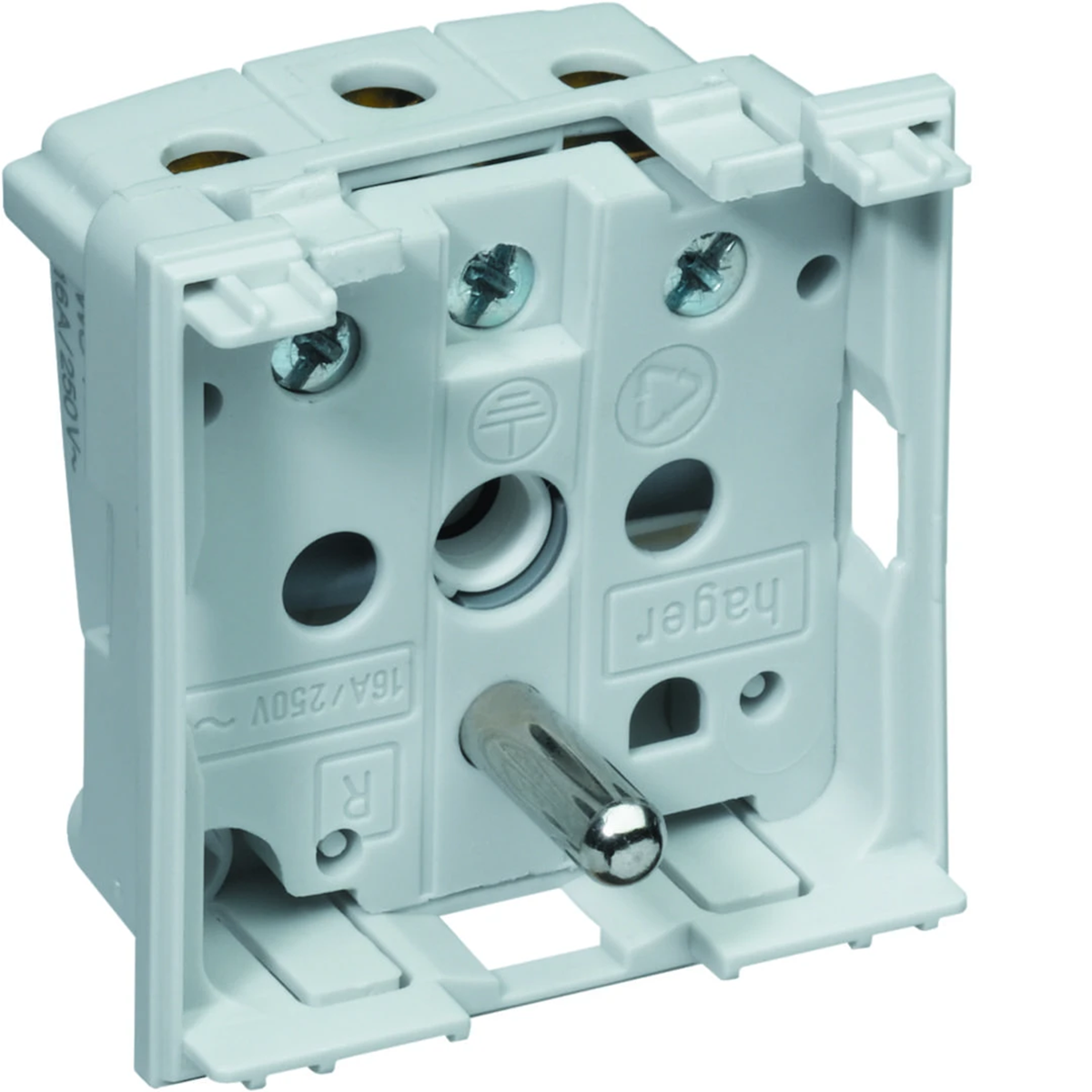

SYSTO Socket with ground screw terminals 2 modules 16A/250V white WS101

local index:
MGE010TEHA
Catalog No:
WS101
EAN code:
3250617081016
Manufacturer: TEHALIT
Depth [mm]: 37
Number of sockets: 1
Number of modules: 2
Price:
8,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Twoja hurtownia Choose your wholesaler
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket of the  systo series. The product part number is WS101.

 < /p>

FEATURES

  • Single.
  • Grounded; ground pin.
  • Screw terminals.
  • Color white.
  • Rated current 16A .
  • Rated voltage 230V.
  • Cross-section of the solid conductor (wire) in the terminal: 1.5 / 2.5mm² ;.
  • Phase branch: L1.
  • Pole arrangement  2P+T.



SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    37
  • Number of modules
    2
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP25
  • Type
    45x45
  • Height [mm]
    45
  • Terminal type
    Threaded
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    1
  • Color
    White
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Ground
    Hurt
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Other technical data

  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    45 mm
  • Device depth
    22.8 mm
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of modules (module system)
    2
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm

Manufacturer details

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 2880 pcs.
Weight (kg) 0,045 0,460 5,900 164,600
Width (m) 0,045 0,120 0,315 0,800
Length (m) 0,045 0,055 0,225 1,050
Depth (m) 0,037 0,295 0,365 1,200
