TEHALIT

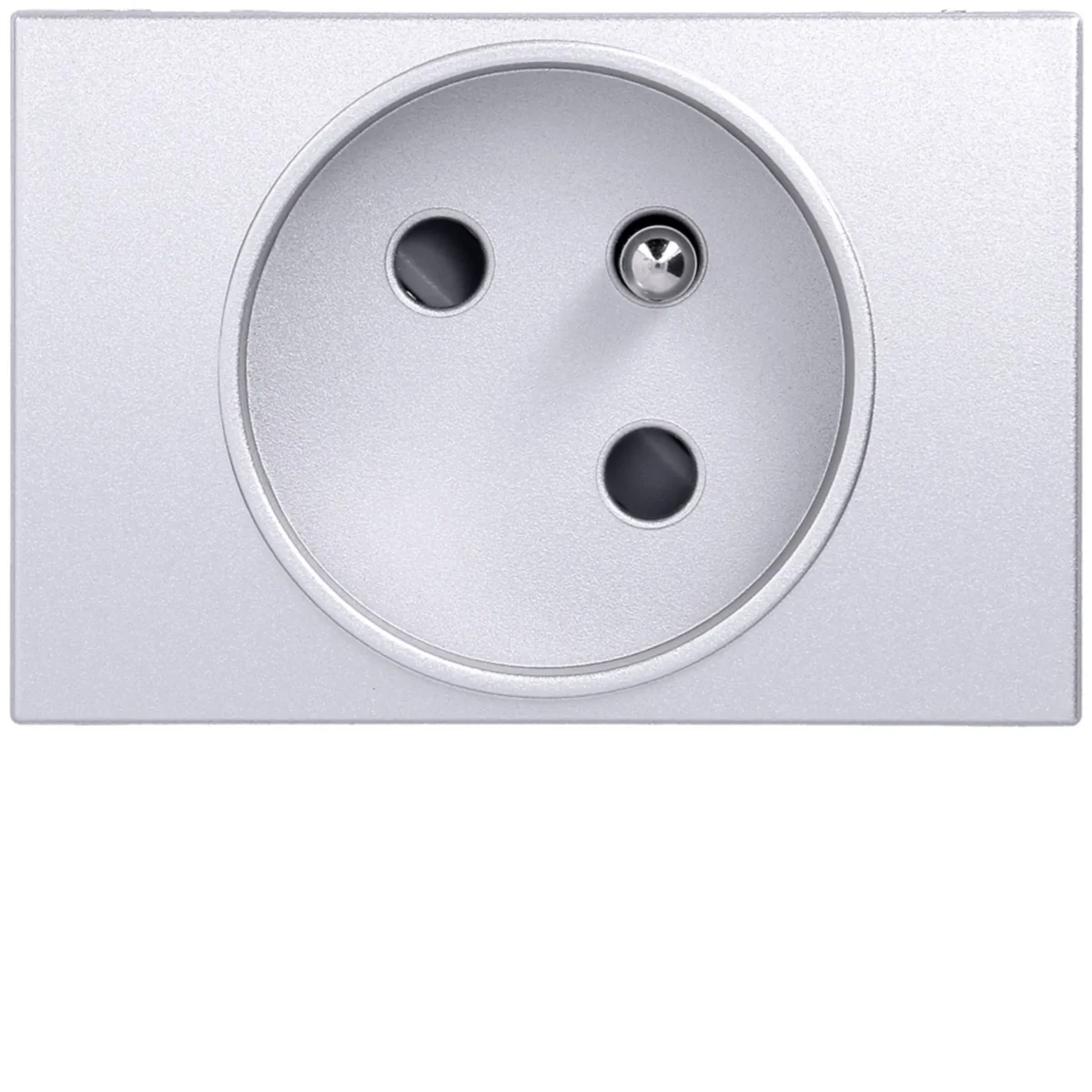

SYSTO Pass-through socket outlet with grounding 2P+E self-locking 3 modules 16A/230V aluminum WS121T

local index:
MGE105TEHA
Catalog No:
WS121T
EAN code:
3250617141215
Price:
21,68 €
gross / pcs.
including VAT 23%
Availability:
up to 10 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Electric socket of the systo series. The product part number is WS121T.



FEATURES

  • 2P+Z.
  • Through-hole.
  • Grounded ; ground pin.
  • Self clamps.
  • 3 modules.
  • Color aluminum.
  • Rated current 16A.
  • Rated voltage 230V.
  • Phase branch:  ;L1.
  • Surface: matt/satin.



SERIES DESCRIPTION

system< /strong> is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.

Technical data

  • Depth [mm]
    43.5
  • Number of modules
    3
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP2X
  • Type
    45x45
  • Ground
    Hurt
  • Accurate color
    Aluminum
  • Terminal type
    Threadless
  • On the DATA key
    NO
  • Number of sockets
    1
  • Color
    Silver
  • Material
    Plastic
  • Rated current [A]
    16
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    67.5
  • Backlight
    NO
  • Standard
    European
  • For the frame system
    Yes

Other technical data

  • Model
    Protective contact CEE 7/3 / CEE 7/4 (type F)
  • Number of active contacts (round)
    1
  • With signal lamp
    no
  • Number of modules (module system)
    3
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    no
  • Colour
    Aluminium
  • Transparent
    no
  • Eject-mechanism
    no
  • With function lighting
    no
  • Over voltage protection
    no
  • Mounting method
    Wall duct
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    no
  • With loop through function
    no
  • Nominal current
    16 A
  • Frequency
    50 ... 60 Hz
  • Suitable for degree of protection (IP)
    IP2X
  • Device width
    67.5 mm
  • Device depth
    43.5 mm
  • Okrągły styk ochronny
    yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    no
  • Number of socket outlets switchable
    0
  • With hinged lid
    no
  • Label space/information surface
    no
  • RAL-number (similar)
    9006
  • Lockable
    no
  • Insulated mounting
    yes
  • With orientation lighting
    no
  • With miniature fuse
    no
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Other
  • Surface finishing
    Matt
  • With on/off switch
    no
  • Rotated central insert
    yes
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK07
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
