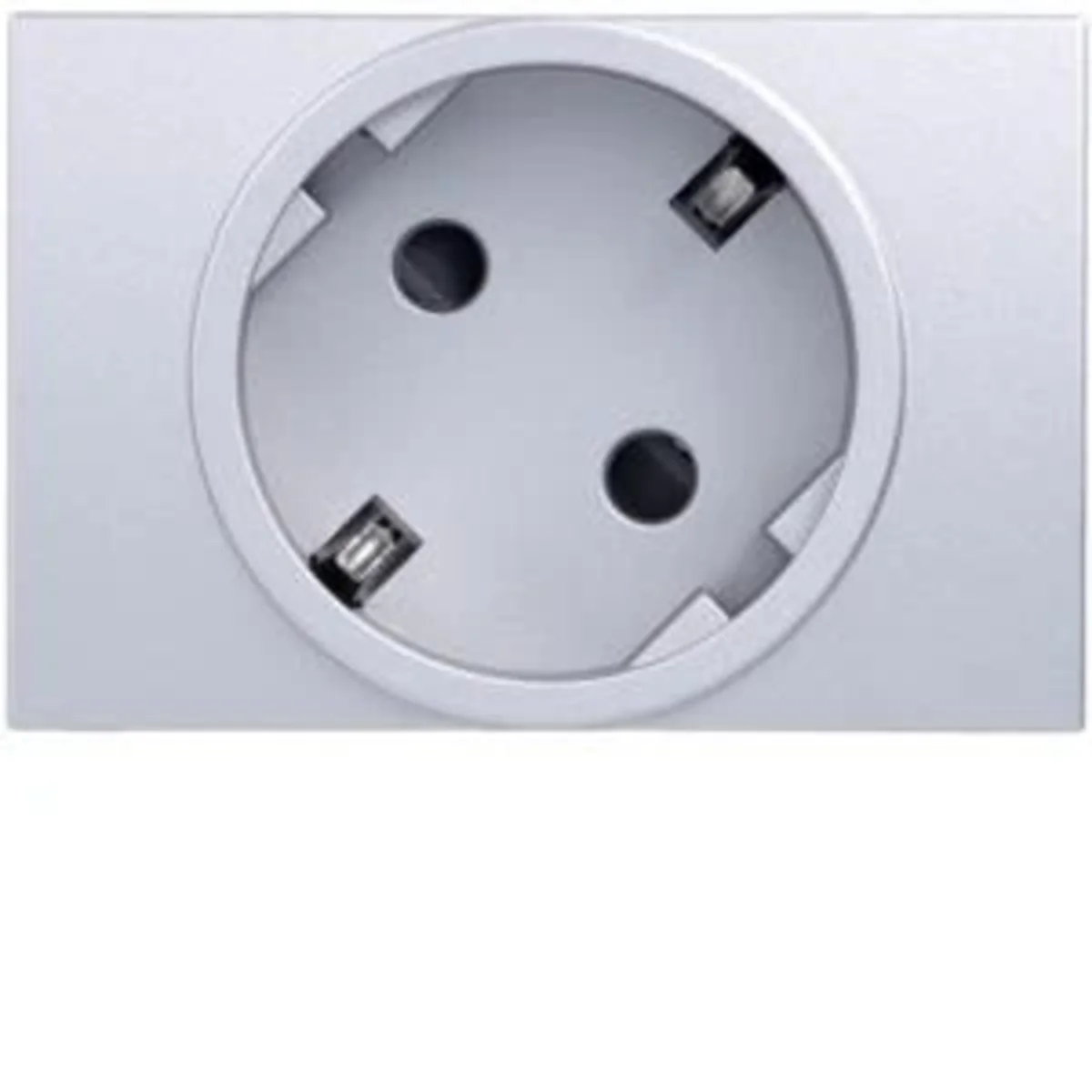

SYSTO Pass-through socket outlet SCHUKO 2P+E self-locking touch protection 3 modules 16A/230V aluminum WS171T
local index:
MGE121TEHA
Catalog No:
WS171T
EAN code:
3250617141710
Price:
21,12 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket of the systo series. The product part number is WS171T.
FEATURES
- Line-through.
- 2P+E.
- Earthed SCHUKO.
- With touch protection.
- Self-clamps.
- 3 modules.
- Color aluminum.
- Rated current 16A.
- Rated voltage 230V.
- Phase branch: L1.
SERIES DESCRIPTION
systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or ducts. Electrical socket characterizes the features of this unique series.
Technical data
-
Depth [mm]42.5
-
Number of modules3
-
ShapeRectangular
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP2X
-
Type45x45
-
Height [mm]90
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
PKWIU27.33.13.0
-
Number of sockets1
-
ColorSilver
-
MaterialPlastic
-
Rated current [A]16
-
FamilySYSTEM
-
Width [mm]45
-
Groundschuko
-
Accurate colorAluminum
-
Terminal typeThreadless
-
Shutters of current pathsYes
-
For the frame systemYes
Other technical data
-
ModelProtective contact CEE 7/3 / CEE 7/4 (type F)
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)2
-
With built-in USB power supplyNo
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)9006
-
LockableNo
-
Insulated mountingYes
-
With orientation lightingNo
-
With miniature fuseNo
-
Type of fasteningSnap mounting (engagement)
-
Material qualityOther
-
Surface finishingMatt
-
With on/off switchNo
-
Rotated central insertYes
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK07
-
Device height45 mm
-
Min. depth of built-in installation box40 mm
-
Protective contactYes
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of modules (module system)3
-
Connection typePush-in clamp
-
With enhanced contact protectionNo
-
ColourAluminium
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
Mounting methodOther
-
MaterialPlastic
-
Surface protectionLacquered
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency50 ... 60 Hz
-
Suitable for degree of protection (IP)IP2X
-
Device width90 mm
-
Device depth42.5 mm
Bulk packaging
| A kind of package | Pakiet | Paczka | Paleta |
| Quantity | 20 pcs. | 120 pcs. | 2880 pcs. |
| Weight (kg) | 1,508 | 9,488 | 252,712 |
| Width (m) | 0,247 | 0,321 | 0,800 |
| Length (m) | 0,054 | 0,214 | 1,006 |
| Depth (m) | 0,286 | 0,370 | 1,200 |
