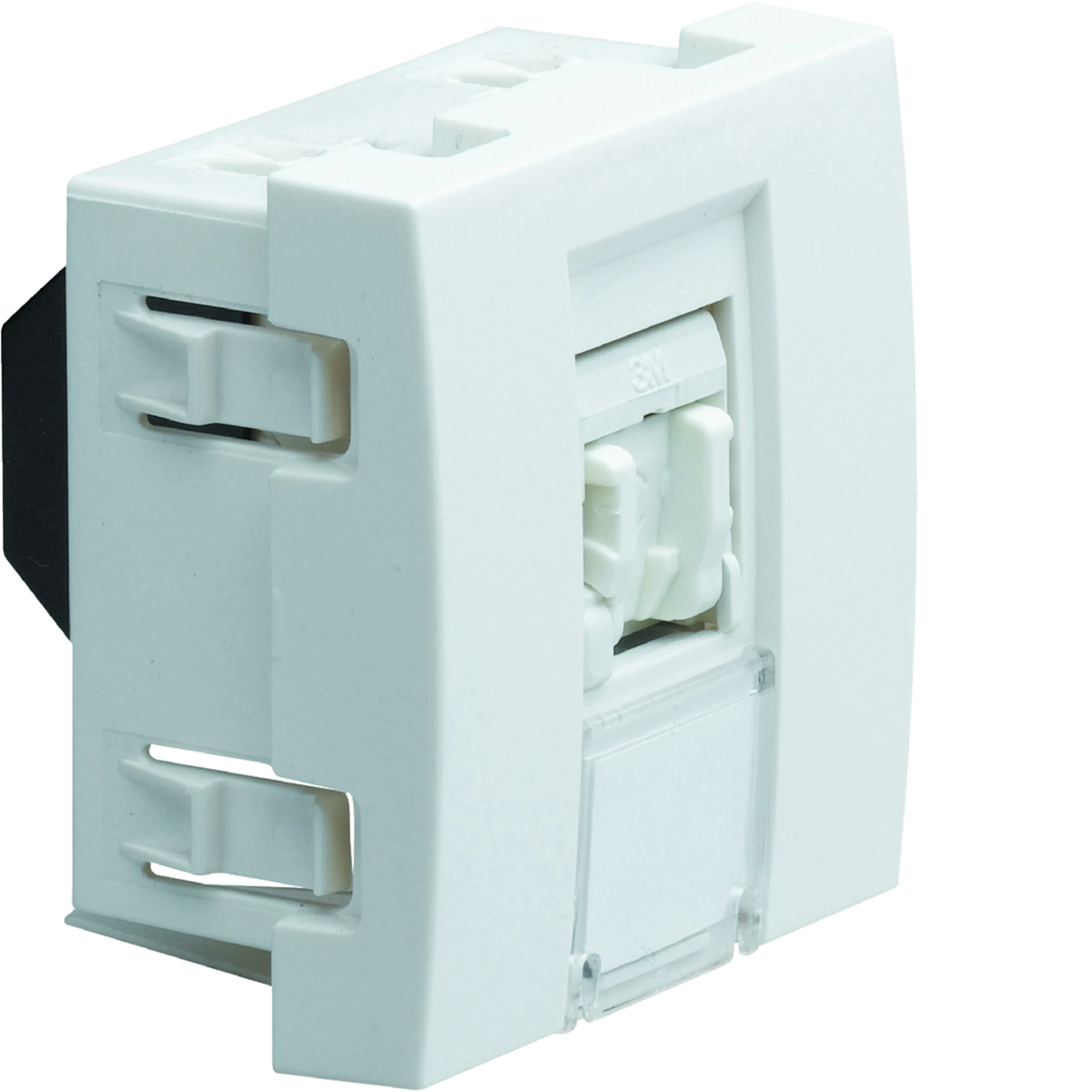

SYSTO IT socket RJ45 category 6 UTP 2 white modules WS220

local index:
AEB002TEHA
Catalog No:
WS220
EAN code:
3250617082204
Manufacturer: TEHALIT
Halogen free: Yes
Depth [mm]: 35.75
Category: 6
Price:
17,76 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

IT socket, systo series:

  • RJ45
  • category 6
  • number of modules for WA: 2
  • UTP

Series characteristics:

Systo wiring accessories 45 mm wide enables many applications: in ducts, in desk carriers, floor boxes and electrical installation columns.

Technical data

  • Halogen free
    Yes
  • Category
    6
  • Material
    PC
  • Rated voltage [V]
    263
  • Rated current [A]
    49
  • Level of security
    IP20
  • Connection type
    Quick Connect
  • Surface finish
    Lacquered
  • Conductor cross-section (wire) [mm²]
    1.5 - 2.38
  • Depth [mm]
    35.75
  • Color
    White
  • Fixing
    Clamps
  • Surface
    Matt
  • Family
    SYSTEM
  • Width [mm]
    45
  • Height [mm]
    45
  • Number of outputs
    1
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    45 mm
  • Device depth
    35.75 mm
  • Utilization
    UAE/IAE (ISDN)
  • With dust cover
    Yes
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    2
  • With strain relief
    No
  • Shielded housing
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 1 pcs. 60 pcs. 1440 pcs.
Weight (kg) 0,039 0,045 3,090 97,160
Width (m) 0,045 0,060 0,315 0,800
Length (m) 0,045 0,065 0,215 1,050
Depth (m) 0,036 0,075 0,360 1,200
