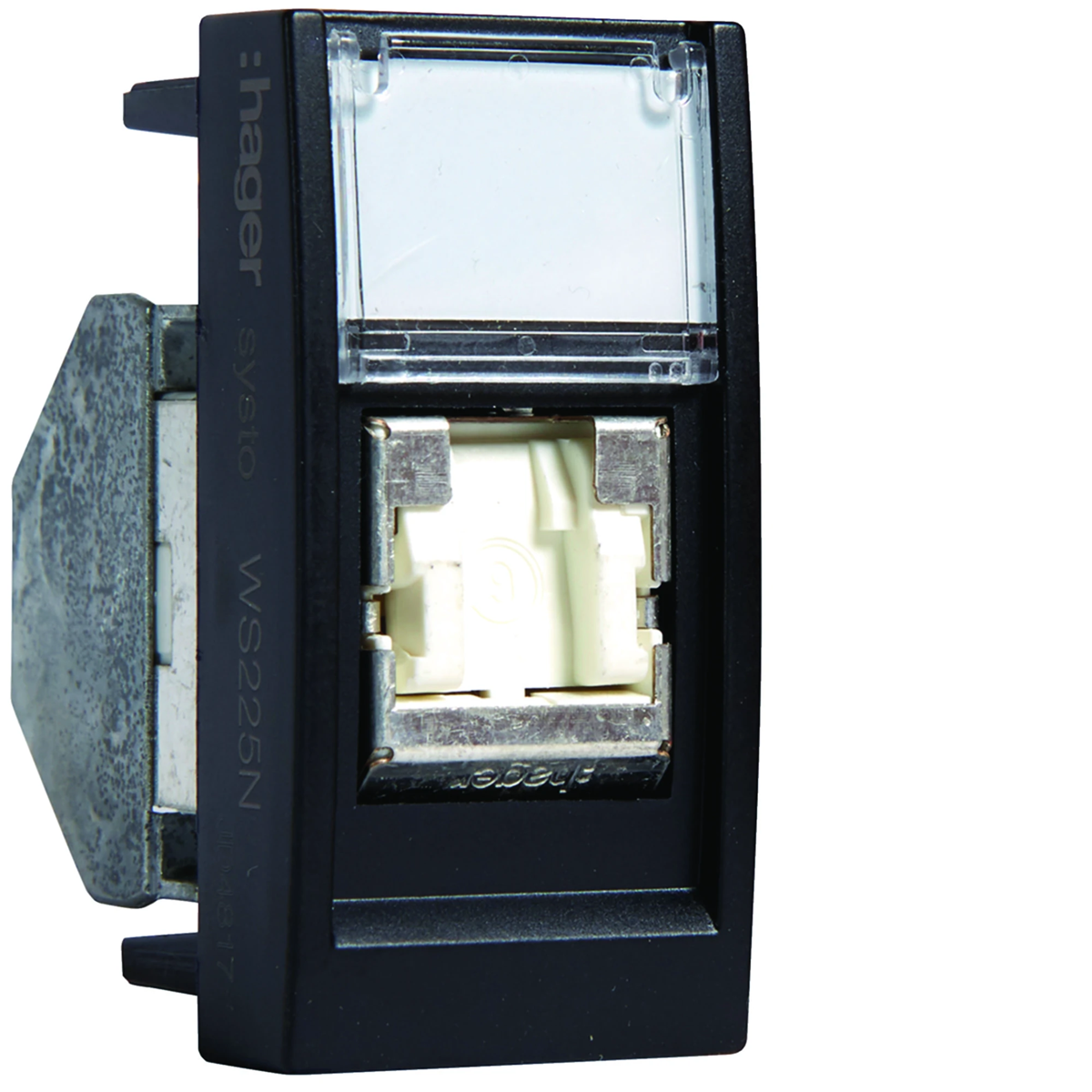

SYSTO IT socket RJ45 category 6 STP 1 module black WS225N

local index:
MGI029TEHA
Catalog No:
WS225N
EAN code:
3250617112253
Manufacturer: TEHALIT
Number of modules: 1
Category: 6
Color: Black
Price:
33,01 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Internet socket of the systo series. The product part number is WS225N.



FEATURES

  • Single.
  • RJ45.
  • Category 6.
  • STP.
  • 1 module.
  • With description field.
  • Clamp connection.



SERIES DESCRIPTION

systo is a series of electro-installation equipment that can be used in a ró various installations: floor boxes, columns or ducts. Internet socket is characterized by the features of this unique series.

Technical data

  • Number of modules
    1
  • Color
    Black
  • Material
    Plastic
  • Type
    Internet
  • Level of security
    IP20
  • Type
    45x45
  • Version
    STP
  • Surface protection
    varnishing
  • Surface finish
    matte
  • For the frame system
    Yes
  • Dust cover
    Yes
  • PKWIU
    27.33.13.0
  • Category
    6
  • Shape
    Rectangular
  • Descriptive field
    Yes
  • Family
    SYSTEM
  • Width [mm]
    22.5
  • Connection type
    Quick Connect
  • Height [mm]
    45
  • Degree of mechanical protection
    IK07
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    8022
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm
  • Utilization
    UAE/IAE (ISDN)
  • With dust cover
    Yes
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Transparent
    No
  • Number of modules (module system)
    1
  • With strain relief
    No
  • Luster terminal
    No
  • Device width
    22 mm
  • Device depth
    38.5 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 2880 pcs.
Weight (kg) - 0,443 5,528 157,672
Width (m) 0,023 0,092 0,323 0,800
Length (m) 0,045 0,087 0,214 1,006
Depth (m) 0,036 0,249 0,369 1,200
