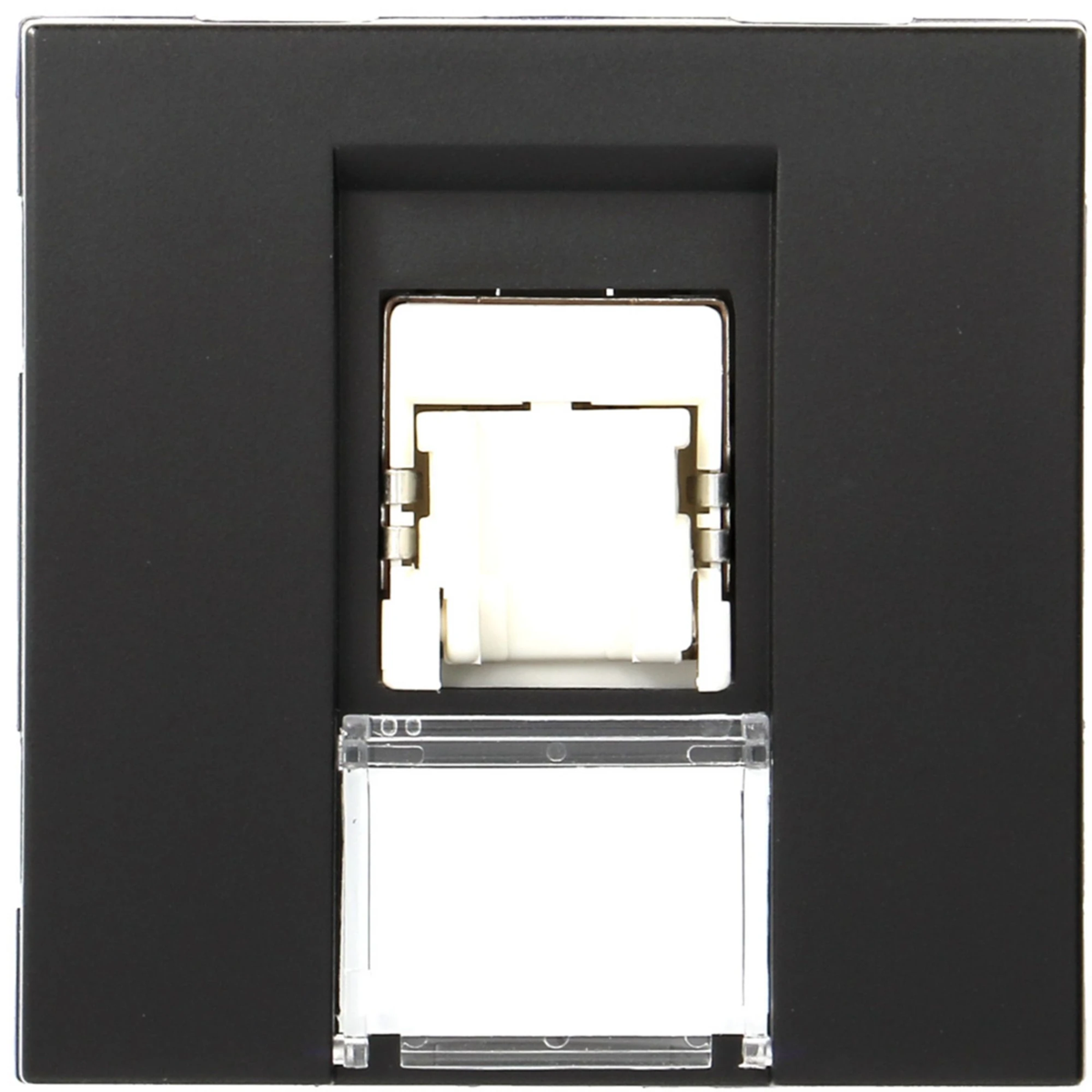

SYSTO IT socket RJ45 category 6 FTP 2 black modules WS223N

local index:
MGI026TEHA
Catalog No:
WS223N
EAN code:
3250617112239
Manufacturer: TEHALIT
Depth [mm]: 36
Number of modules: 2
Category: 6
Price:
25,15 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 10 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Internet socket of the systo series. The product part number is WS223N.



FEATURES

  • Single.
  • RJ45.
  • Category 6.
  • FTP.
  • 2 modules.
  • With description field.
  • Clamp connection.



SERIES DESCRIPTION

systo is a series of electro-installation equipment that can be used in a ró various installations: floor boxes, columns or ducts. Internet socket is characterized by the features of this unique series.

Technical data

  • Depth [mm]
    36
  • Category
    6
  • Shape
    Square
  • Descriptive field
    Yes
  • Family
    SYSTEM
  • Width [mm]
    45
  • Connection type
    Quick Connect
  • Height [mm]
    45
  • Degree of mechanical protection
    IK07
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Exact material
    PC
  • Number of modules
    2
  • Color
    Black
  • Material
    Plastic
  • Type
    Internet
  • Level of security
    IP20
  • Type
    45x45
  • Version
    FTP
  • Surface protection
    varnishing
  • Surface finish
    matte
  • For the frame system
    Yes
  • Dust cover
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    8022
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    45 mm
  • Device depth
    35.75 mm
  • Utilization
    UAE/IAE (ISDN)
  • With dust cover
    Yes
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Black
  • Transparent
    No
  • Number of modules (module system)
    2
  • With strain relief
    No
  • Shielded housing
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 120 pcs. 2880 pcs.
Weight (kg) 0,022 0,320 4,262 125,288
Width (m) 0,045 0,115 0,315 0,800
Length (m) 0,045 0,055 0,237 1,098
Depth (m) 0,036 0,295 0,362 1,200
