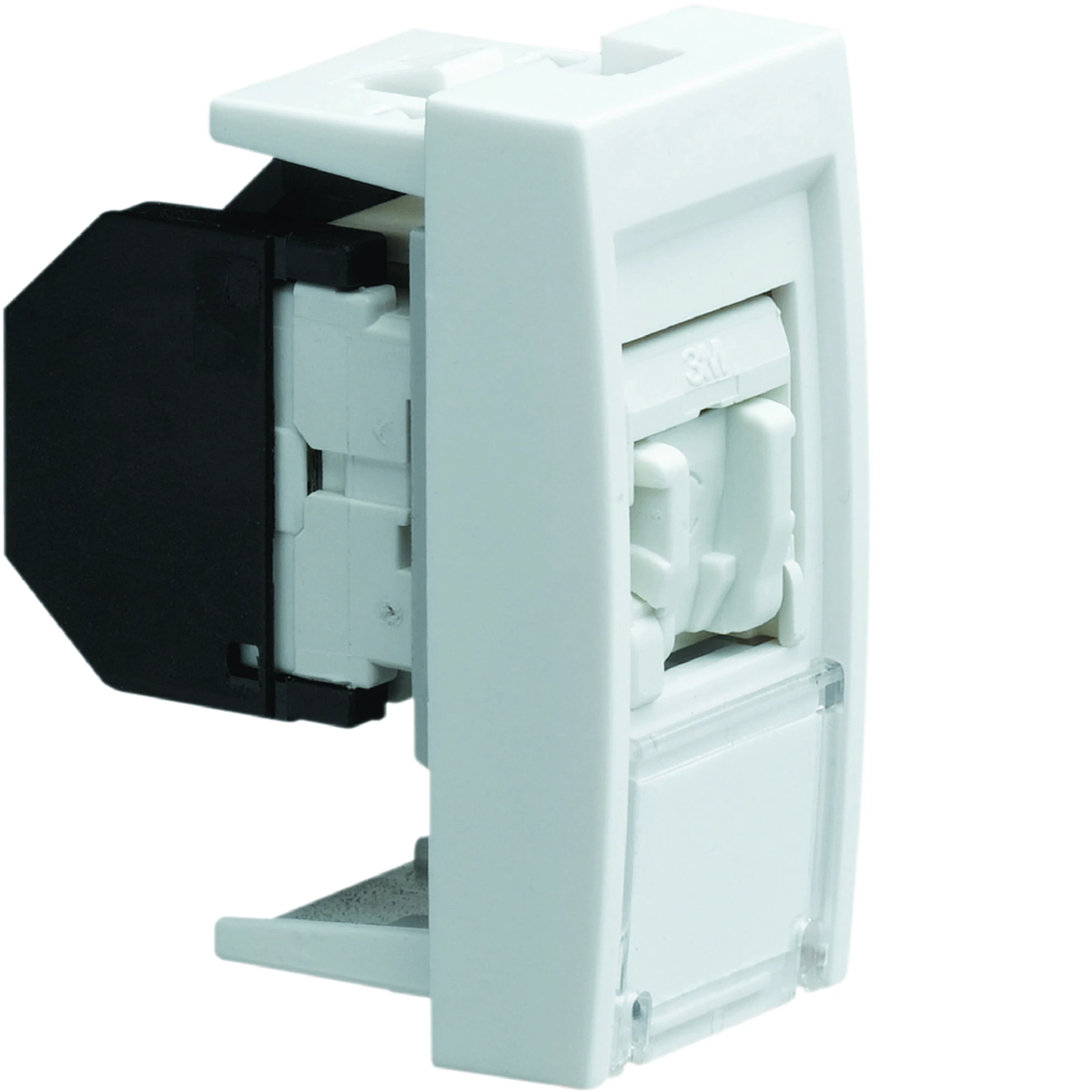

SYSTO IT socket RJ45 category 5e FTP 1 module white WS213

local index:
MGI008TEHA
Catalog No:
WS213
EAN code:
3250617082136
Manufacturer: TEHALIT
Depth [mm]: 36
Number of modules: 1
Category: 5e
Price:
18,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Internet socket of the systo series. The product part number is WS213.



FEATURES

  • Single.
  • RJ45.
  • Category 5e.
  • FTP.
  • 1 module.
  • With description field.
  • Clamp connection.



SERIES DESCRIPTION

systo is a series of electrical installation accessories that can be used in various installations: floor boxes, columns or channels. Internet socket is characterized by the features of this unique series.

Technical data

  • Depth [mm]
    36
  • Category
    5e
  • Shape
    Rectangular
  • Descriptive field
    Yes
  • Family
    SYSTEM
  • Width [mm]
    22.5
  • Connection type
    Quick Connect
  • Height [mm]
    45
  • Surface finish
    Matt satin
  • For the frame system
    Yes
  • Dust cover
    Yes
  • PKWIU
    27.33.13.0
  • Number of modules
    1
  • Color
    White
  • Material
    Plastic
  • Type
    Internet
  • Level of security
    IP20
  • Type
    45x45
  • Version
    FTP
  • Degree of mechanical protection
    IK07
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Exact material
    PC

Other technical data

  • Assembly arrangement
    Basic element with central cover plate
  • Support ring
    No
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • RAL-number (similar)
    9010
  • Type of fastening
    Clamp mounting
  • Suitable for number of connectors
    1
  • Shielded buses
    No
  • Luster terminal
    No
  • Device width
    22 mm
  • Device depth
    35.75 mm
  • Utilization
    UAE/IAE (ISDN)
  • With dust cover
    Yes
  • Outlet direction
    Straight
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    White
  • Transparent
    No
  • Number of modules (module system)
    1
  • With strain relief
    No
  • Shielded housing
    Yes
  • Suitable for degree of protection (IP)
    IP20
  • Device height
    45 mm
  • Min. depth of built-in installation box
    40 mm

Bulk packaging

A kind of package Karton Pakiet Paleta
Quantity 1 pcs. 10 pcs. 240 pcs. 5760 pcs.
Weight (kg) 0,023 0,238 6,093 169,232
Width (m) 0,030 0,062 0,318 0,800
Length (m) 0,056 0,054 0,252 1,158
Depth (m) 0,062 0,297 0,369 1,200
