SYSTEM M Single switch mechanism 1-speed with backlight Flush-mounted 10AX 250VAC screwless terminals MTN3131-0000

Indice locale:
MPP007MERT
Numero di catalogo:
MTN3131-0000
Codice EAN:
3606480306983
Produttore: MERTEN
Number of keys: 1
Shape: Square
Material: Plastic | Metal
Prezzo:
102,94 zł
gross / pezzi
(inclusa IVA 23%)
2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

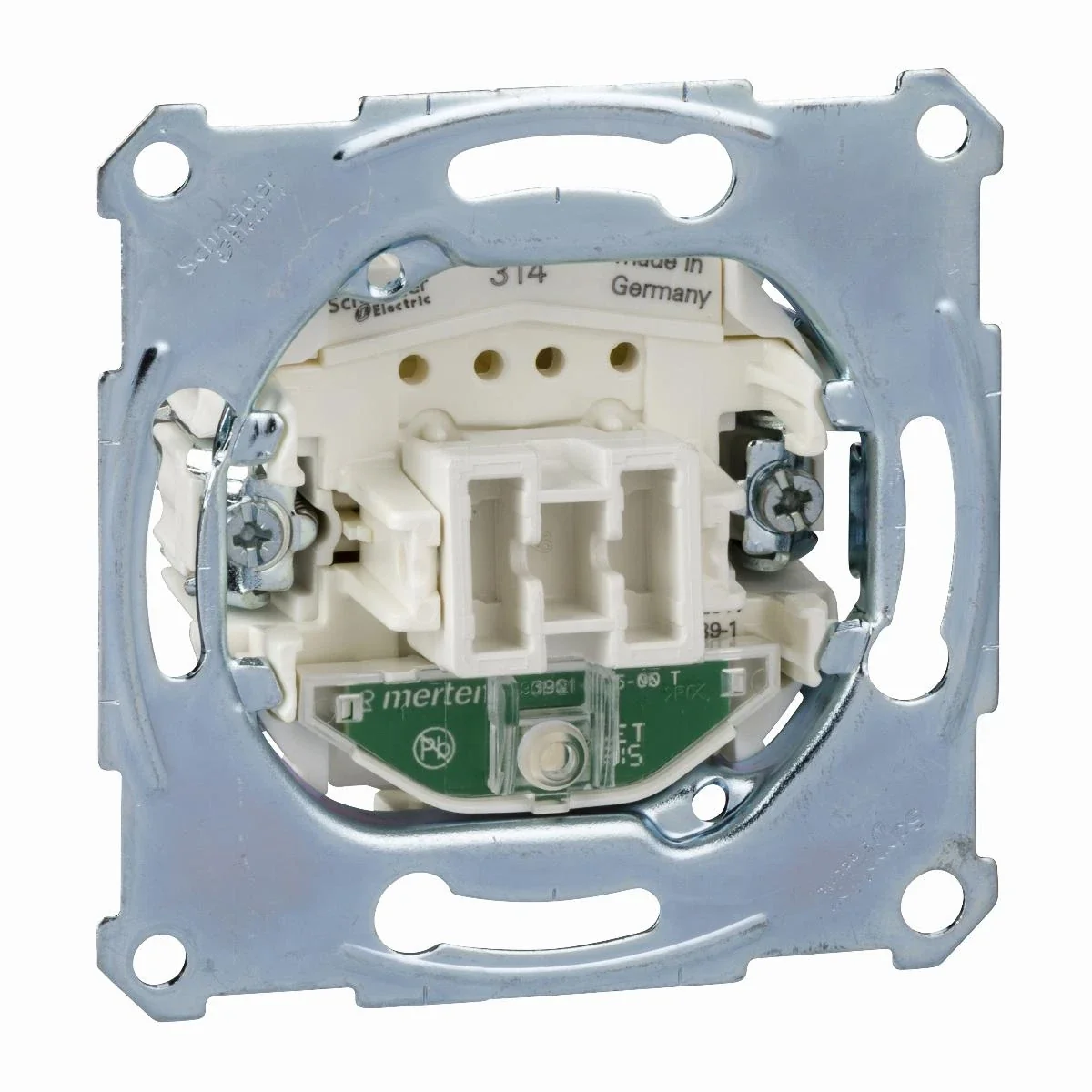

Mechanism of a single single-pole switchfrom the Merten System M series. The product part number is MTN3131-0000.



FEATURES

  • Backlit.



SERIES DESCRIPTION

Merten System M is an exclusive series divided into mechanisms, keys and frames that can be freely combine with each other. The mechanism of the single-pole switch characterizes the features of this unique series.

Dati tecnici

  • Number of keys
    1
  • Material
    Plastic Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SYSTEM M
  • Type
    The linkage mechanism
  • Terminal type
    Threadless
  • Backlight color
    Red
  • Shape
    Square
  • Fixing
    Screws Pliers
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Backlight
    Yes
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Altri dati tecnici

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Other
  • Halogen free
    Yes
  • Illumination
    Yes
  • Type of lighting
    LED exchangeable
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    10 AX
  • Connection type
    Push-in clamp
  • Device width
    71 mm
  • Device depth
    37 mm
  • Method of operation
    Rocker/button
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    Yes
  • Material quality
    Other
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    71 mm
  • Built-in depth
    28 mm

Dettagli del produttore

  • Produttore
    Schneider Electric Polska
  • Indirizzo
    02-673 Warszawa Konstruktorska 12 Polska
