SYSTEM M Single 1-speed switch mechanism with activation signaling flush-mounted 16AX 250VAC screw terminals MTN3501-0000
Índice local:
MPP001MERT
Número de catálogo:
MTN3501-0000
Código EAN:
3606480307140
Precio:
152,38 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto

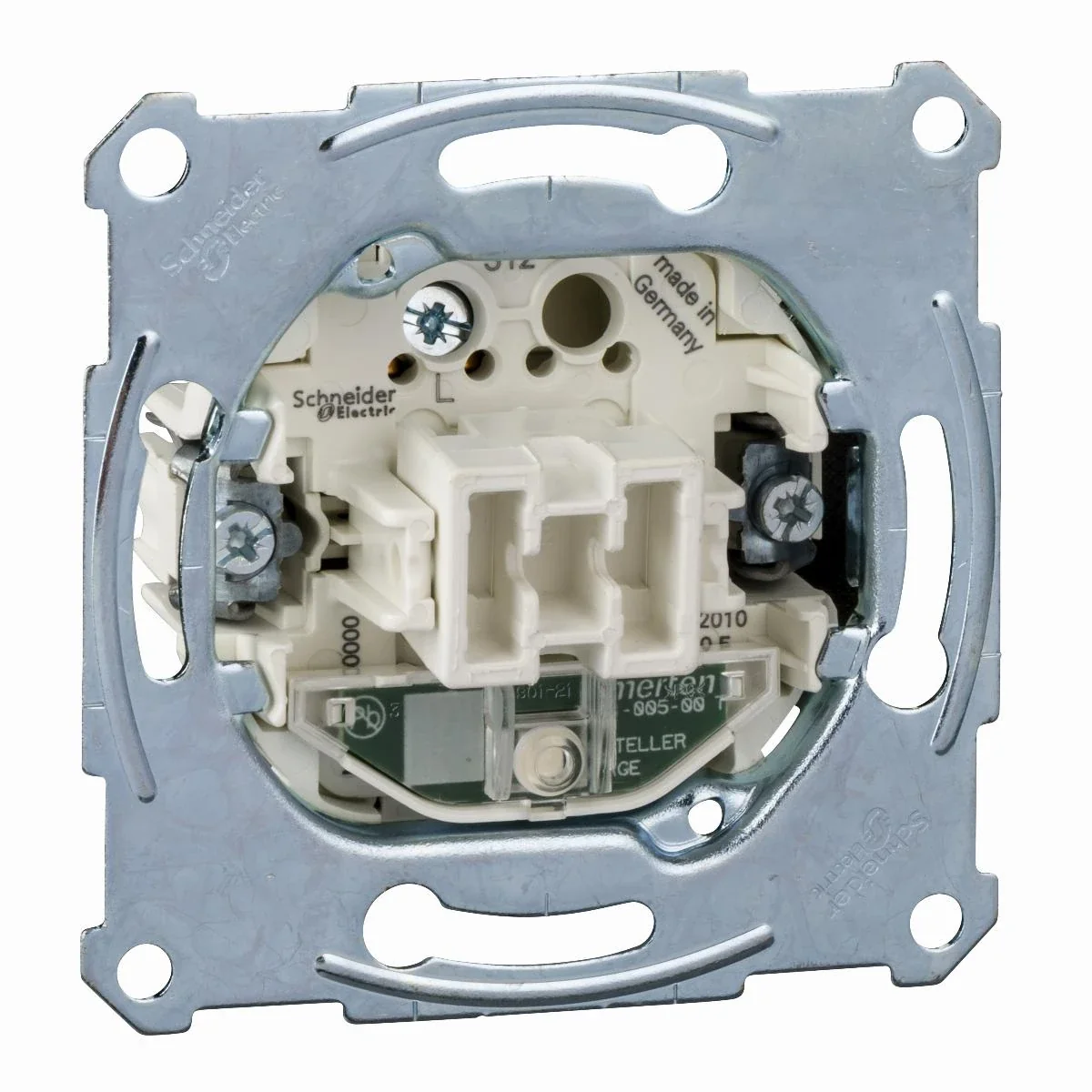

Mechanism of a single single-pole switch from the Merten System M series. The product catalog number is MTN3501-0000.
- With activation signal.
SERIES DESCRIPTION
Merten System M is an exclusive series divided into mechanisms, keys and frames that can be freely combined with each other. Mechanism of a single single-pole switch < /strong>characterize the features of this unique series.
Datos técnicos
-
Number of keys1
-
MaterialPlastic Metal
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySYSTEM M
-
TypeThe linkage mechanism
-
Terminal typeThreaded
-
Backlight typeActivation signaling
-
PKWIU27.33.11.0
-
ShapeSquare
-
FixingScrews Pliers
-
Rated voltage [V]230
-
TypeSingle
-
Level of securityIP20
-
BacklightYes
-
For the frame systemYes
-
Backlight colorRed
Otros datos técnicos
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with adapter plate
-
Number of rockers1
-
Type of fasteningMounting with claw and screw
-
MaterialOther
-
Label space/information surfaceNo
-
Function lightingIlluminated (on)
-
Suitable for degree of protection (IP)IP20
-
Rated current16 A
-
Feedback-signal contactNo
-
Washing machine switchNo
-
Device height71 mm
-
Built-in depth28 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodFlush-mounted
-
With mounting plateYes
-
Halogen freeYes
-
IlluminationYes
-
Type of lightingLED exchangeable
-
Nominal voltage250 V
-
Switching current for fluorescent lamps16 AX
-
Connection typeScrewed terminal
-
Device width71 mm
-
Device depth37 mm
