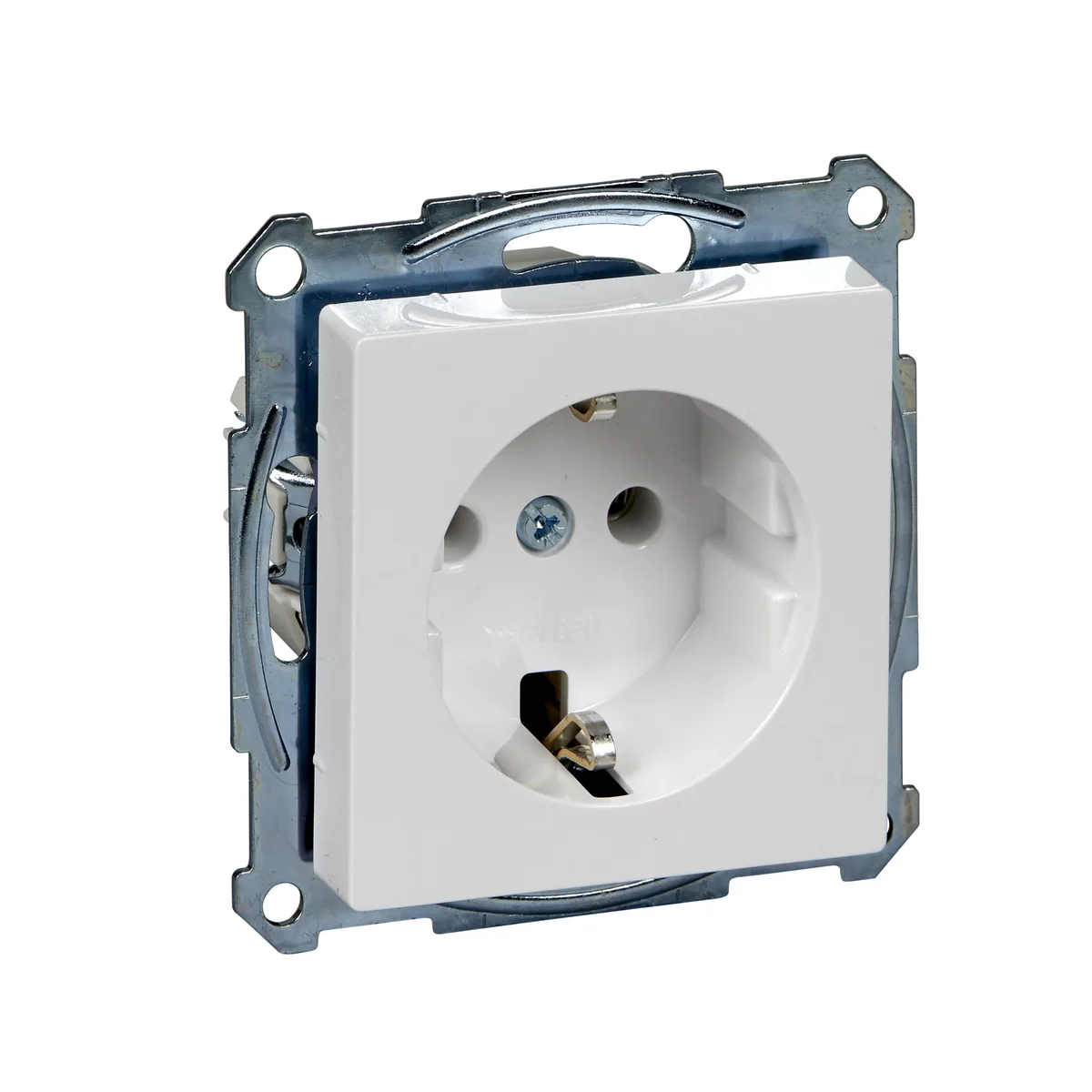

SYSTEM M SCHUKO plug-in socket screwless terminals active white MTN2301-0325

local index:
MEE019MERT
Catalog number:
MTN2301-0325
EAN code:
3606480303364
Manufacturer: MERTEN
Number of sockets: 1
Color: White
Shape: Square
Price:
33,80 zł
gross / pcs.
(including VAT 23%)
2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print

Product description

SCHUKO plug socket



SERIES DESCRIPTION

Exclusive Merten System M electrical installation equipment is design, technology and intelligence integrated in one system. The accessories are available in various colors, materials and versions

The exclusive Merten System M wiring accessories is structured flexibility with over 150 functions. In this series you will find not only switches and electrical sockets, but also systems for controlling lighting, blinds and temperature. Infinite combination possibilities are given by dividing the series into mechanisms and keys matching 6 different series of frames. Thanks to this, you only need to change the frame to completely change the interior of your apartment, house or office!

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    Pliers Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    schuko
  • Surface finish
    Shiny
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SYSTEM M
  • Type
    Flush-mounted
  • Surface protection
    Antibacterial
  • Accurate color
    Active white
  • Terminal type
    Threadless
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Other
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With signal lamp
    No
  • Number of modules (module system)
    0
  • Number of phases
    1
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    No
  • Colour
    White
  • Metallic colour
    No
  • Lockable
    No
  • Insulated mounting
    Yes
  • With orientation lighting
    No
  • Special power supply
    No special power supply
  • With miniature fuse
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With on/off switch
    No
  • Nominal current
    16 A
  • Frequency
    50 ... 50 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    71 mm
  • Device depth
    40 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Google Assistant
    No
  • For heavy conditions according to VDE
    No
  • Protective contact
    Yes
  • Number of active contacts (round)
    2
  • With built-in USB power supply
    No
  • Number of units
    1
  • Number of socket outlets switchable
    0
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9016
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • Fault current protection
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With loop through function
    Yes
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    71 mm
  • Min. depth of built-in installation box
    40 mm
  • Compatible with Amazon Alexa
    No
  • IFTTT support available
    No
