SYSTEM M Push button mechanism screwless terminals 250VAC 10A MTN3150-0000

Indeks lokalny:
MPZ014MERT
Numer katalogowy:
MTN3150-0000
Kod EAN:
3606480307027
Producent: MERTEN
Number of keys: 1
Shape: Square
Material: Plastic | Metal
Cena:
43,25 zł
gross / szt.
(w tym VAT 23%)
2 tygodnie
Na zamówienie
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

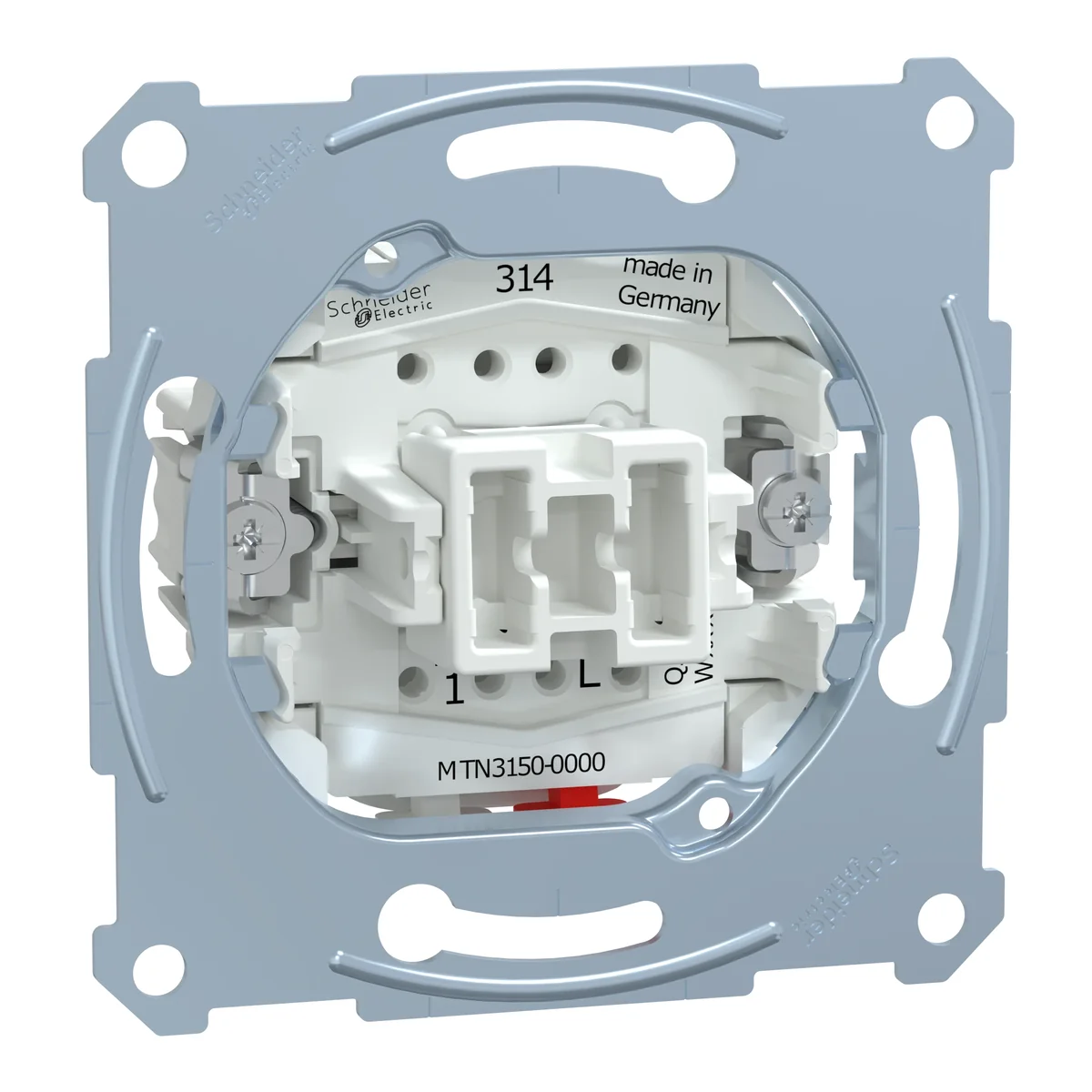

The button mechanism from the Merten System M series. Product part number is MTN3150-0000.

  • Single pole, single.
  • Rocker switch.
  • Screwless terminals.
  • Contact NO.



SERIES DESCRIPTION

Merten System M is an exclusive series divided into mechanisms, keys and frames that can be freely combined with each other. The button mechanism characterizes the features of this unique series.

Dane techniczne

  • Number of keys
    1
  • Material
    Plastic Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SYSTEM M
  • Type
    The linkage mechanism
  • Backlight
    NO
  • Variant
    Ordinary
  • PKWIU
    27.33.11.0
  • Shape
    Square
  • Fixing
    Screws Pliers
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Version
    Confident
  • Terminal type
    Threadless
  • For the frame system
    Yes

Pozostałe dane techniczne

  • Assembly arrangement
    Basic element
  • Method of operation
    Rocker
  • Feedback-signal contact
    No
  • With lighting
    No
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Other
  • Anti-bacterial treatment
    No
  • Label space/information surface
    No
  • With signal lamp
    No
  • Nominal voltage
    250 V
  • Device width
    71 mm
  • Device depth
    37 mm
  • Model
    Single push button
  • Number of poles
    1
  • Number of rockers
    1
  • Mounting method
    Surface mounted
  • Material
    Other
  • Halogen free
    Yes
  • Transparent
    No
  • Imprint
    None
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    10 A
  • Device height
    71 mm

Dane producenta

  • Producent
    Schneider Electric Polska
  • Adres
    02-673 Warszawa Konstruktorska 12 Polska
