Symmetric electric strike with memory and lock, low current 280mA for 12VDC OR-EZ-4032

Index local:
AEA071ORNO
Numéro de catalogue:
OR-EZ-4032
Code EAN:
5908254803987
Producteur: ORNO POLSKA
Depth [mm]: 29
Width [mm]: 21
Height [mm]: 69
Prix:
78,45 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Accessible 23 pcs.
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

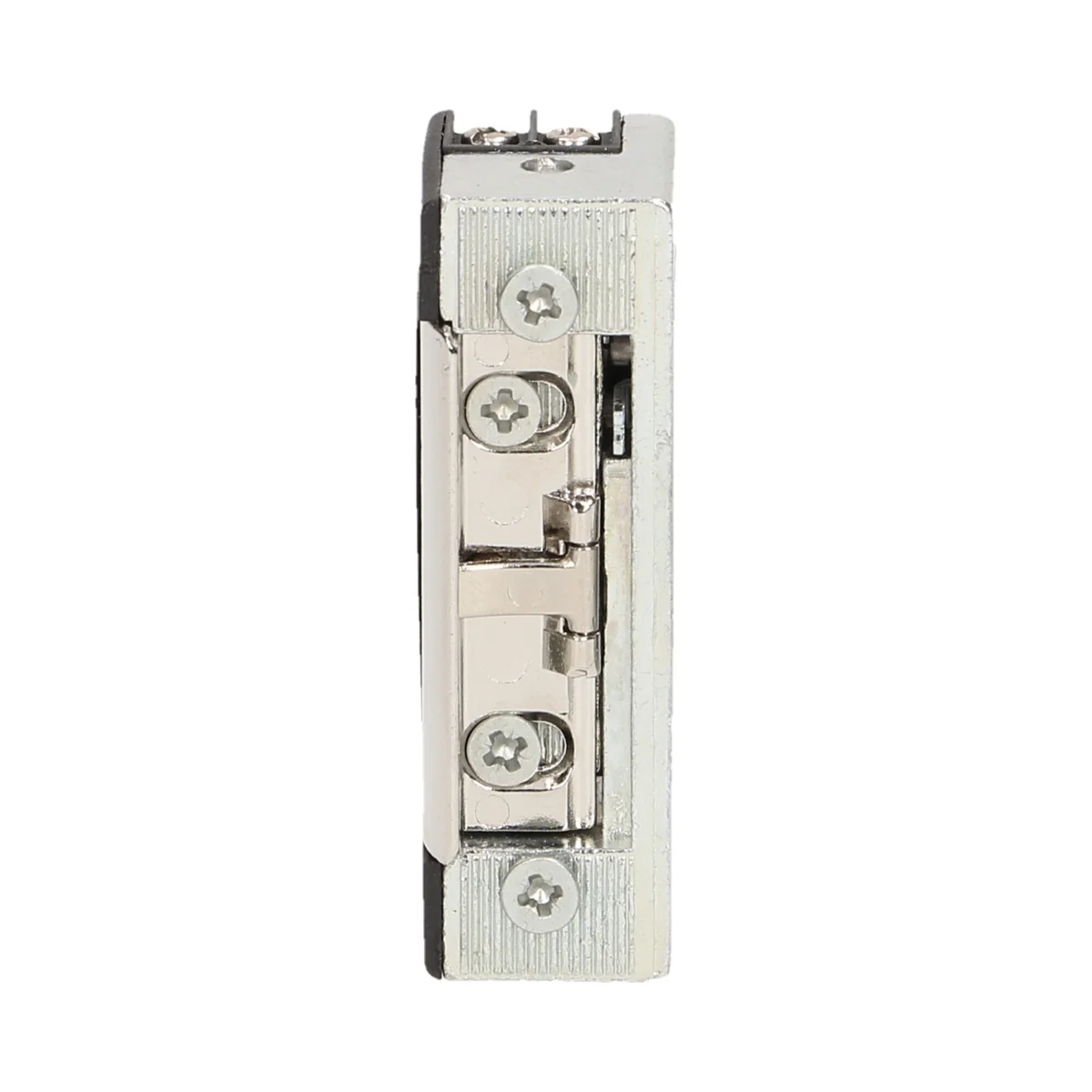

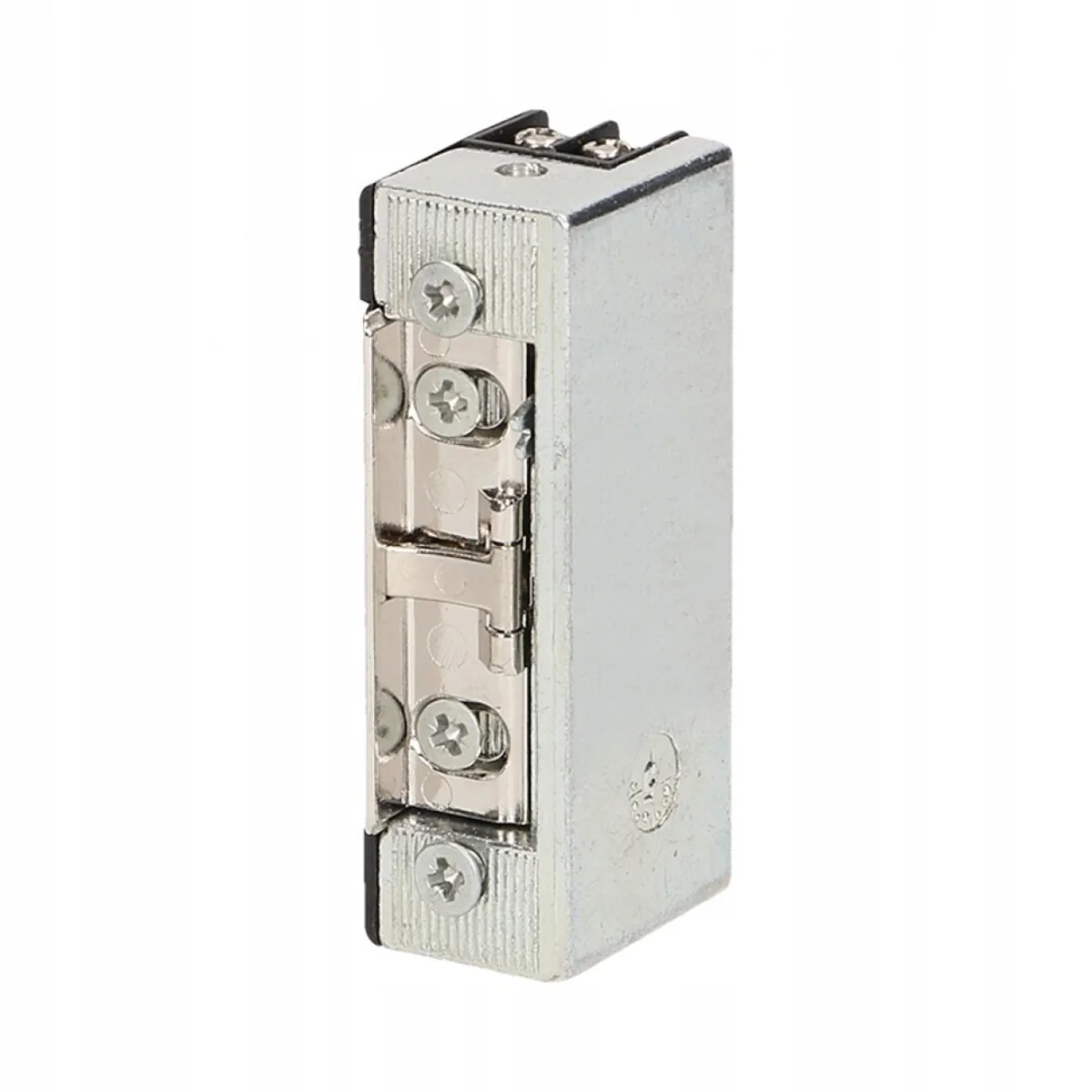

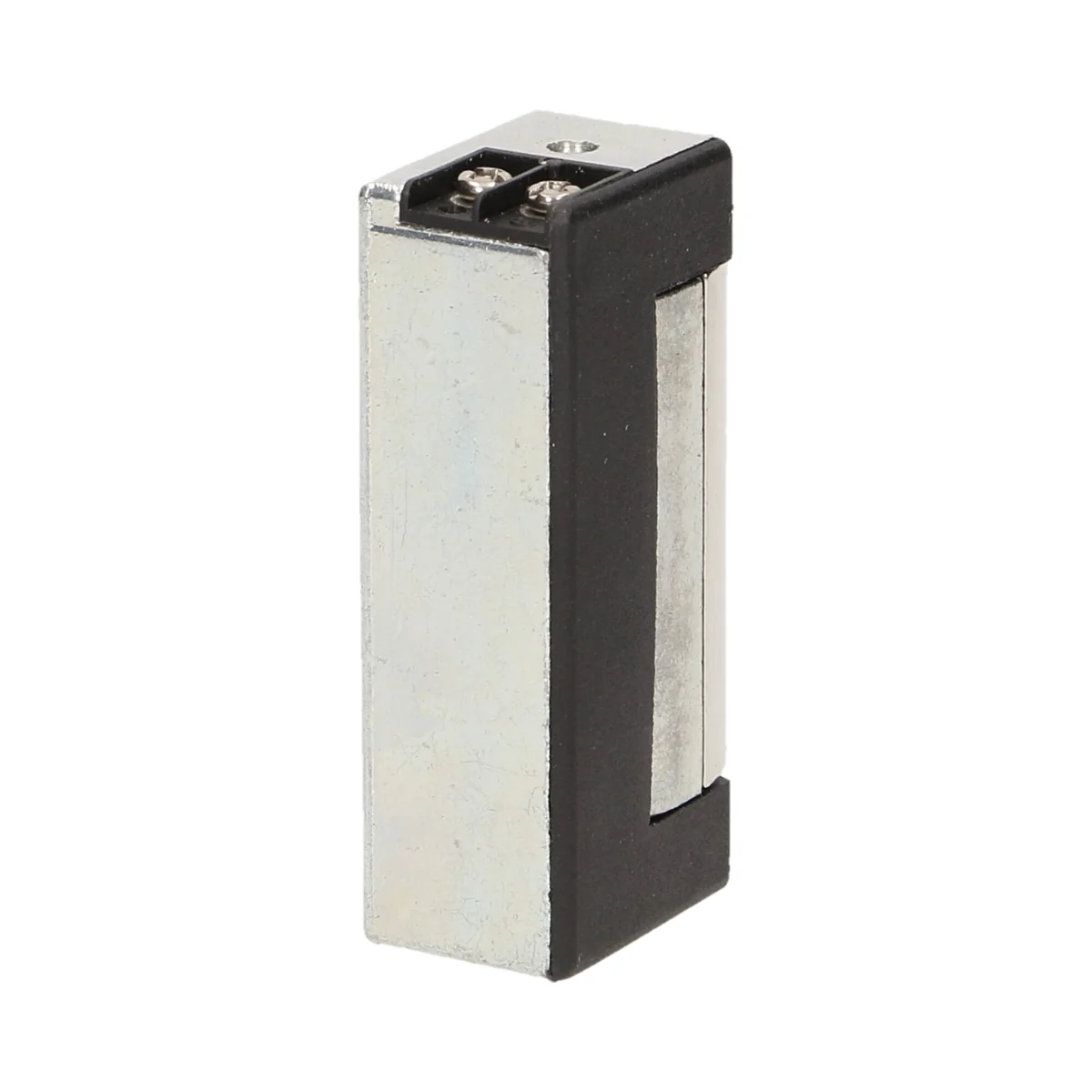

Symmetric electric strike with memory and Orno lock. It is used to remotely open various types of left and right doors and gates as well as double-leaf doors. It is equipped with a ratchet lock function and a memory function. It also has a wide range low current coil that draws 280mA at 12V DC and 250mA at 12V AC.

The lock function allows the door to be opened permanently without the use of an electrical impulse.

The memory function means that the latch opening state will be maintained mechanically until the door is opened. However, after closing the door, the electric strike will be blocked.

Données techniques

  • Depth [mm]
    29
  • Height [mm]
    69
  • Width [mm]
    21
  • PKWIU
    25.72.12.0

Détails du fabricant

  • Producteur
    ORNO-LOGISTIC Sp. z o.o.
  • Adresse
    44-141 Gliwice Rolników 437 Polska
