Switch with motion sensor with relay with protection (module) 8(2)A 230V anthracite (metallic) DCR11P.01/48

Name: Switch with motion sensor with relay with protection (module) 8(2)A 230V anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MWC058KONT
Price: 82.41 PLN

local index:

MWC058KONT

Catalog No:

DCR11P.01/48

EAN code:

5902787826390

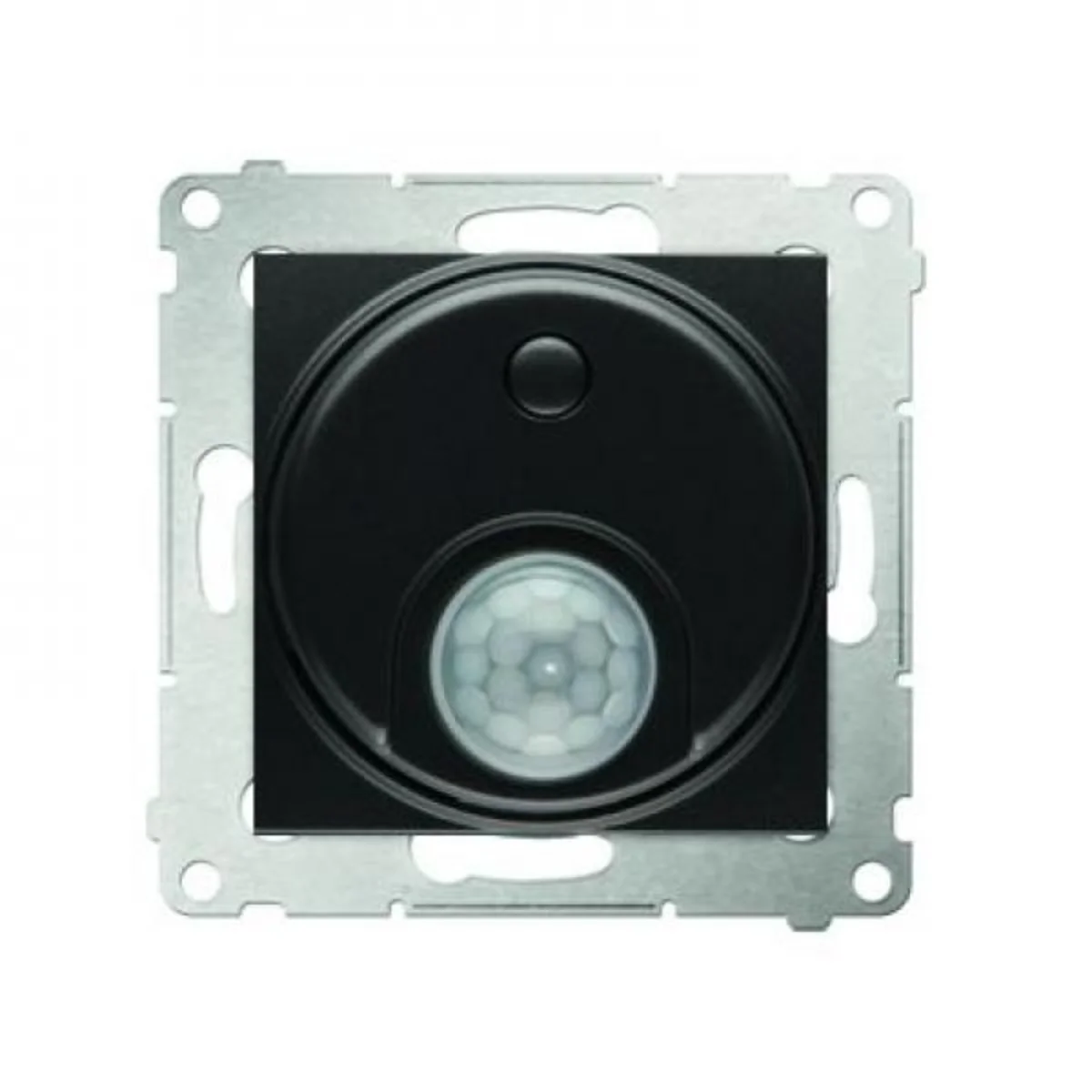

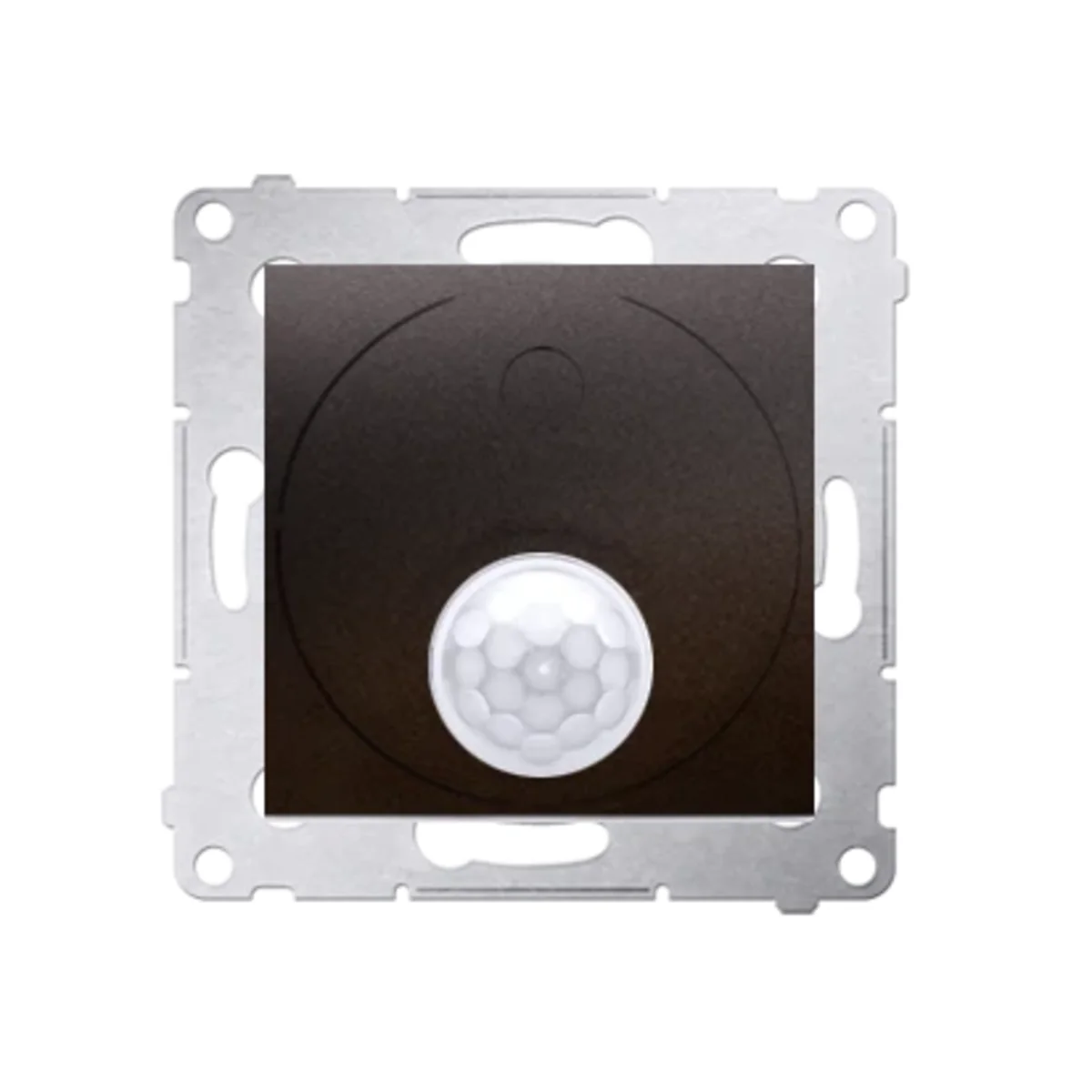

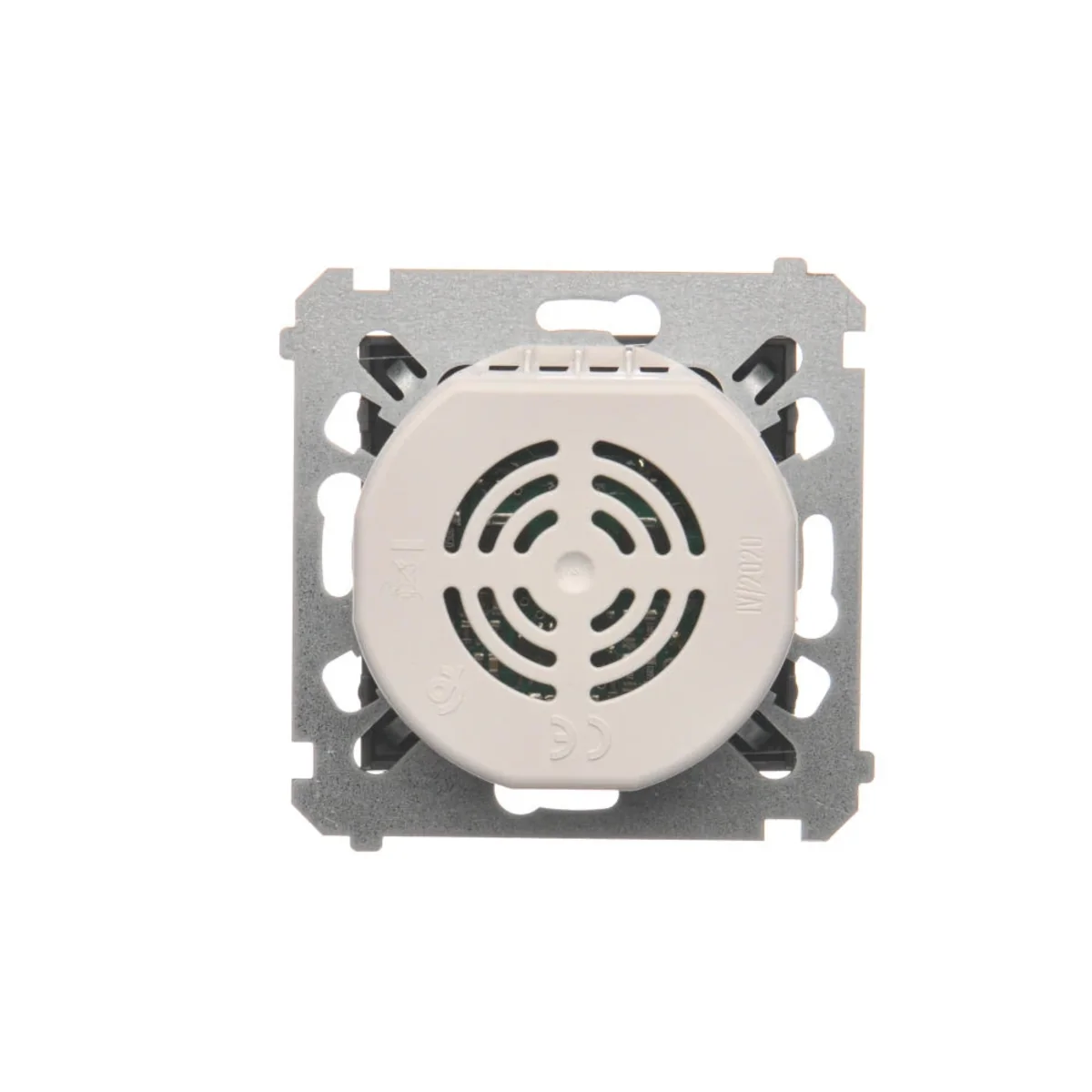

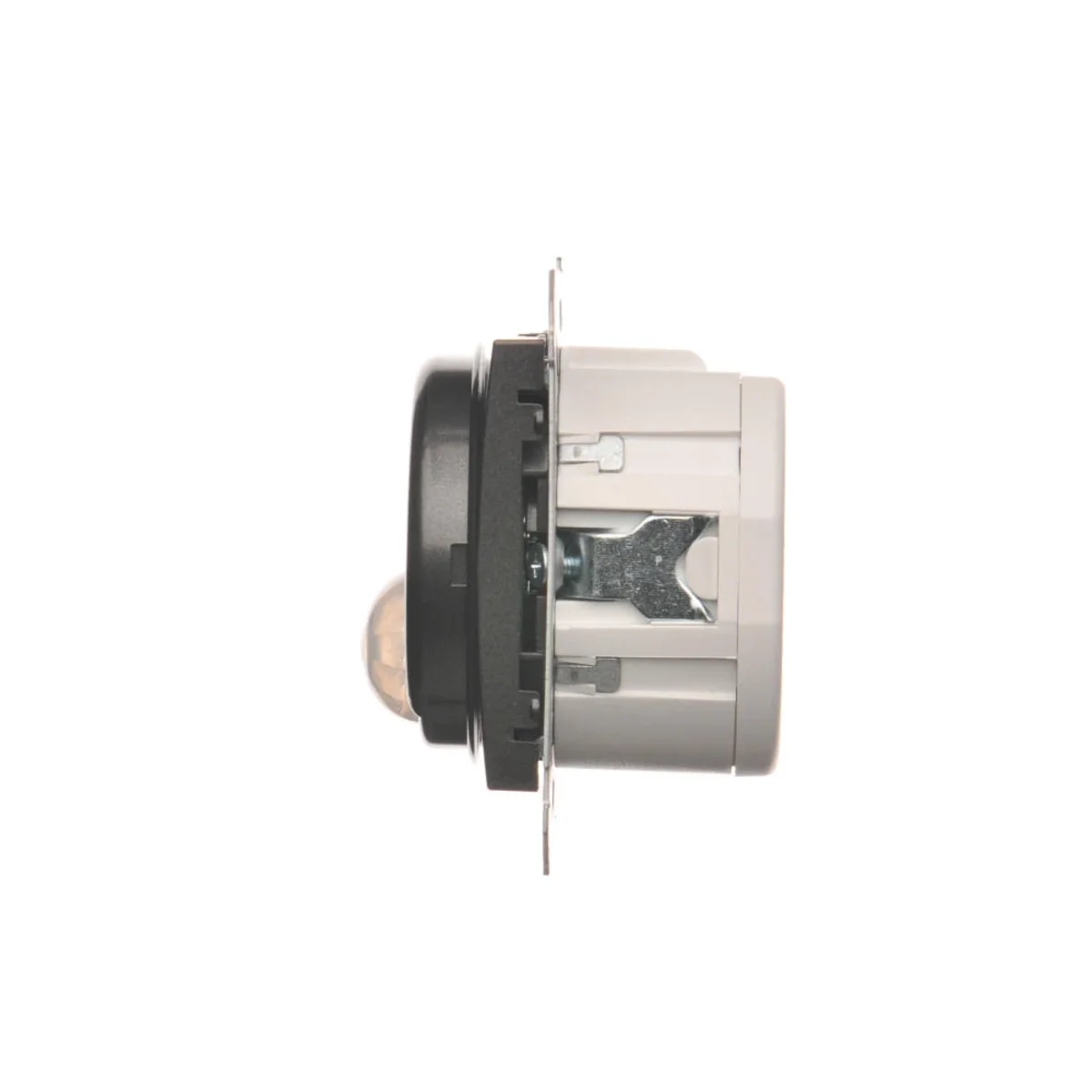

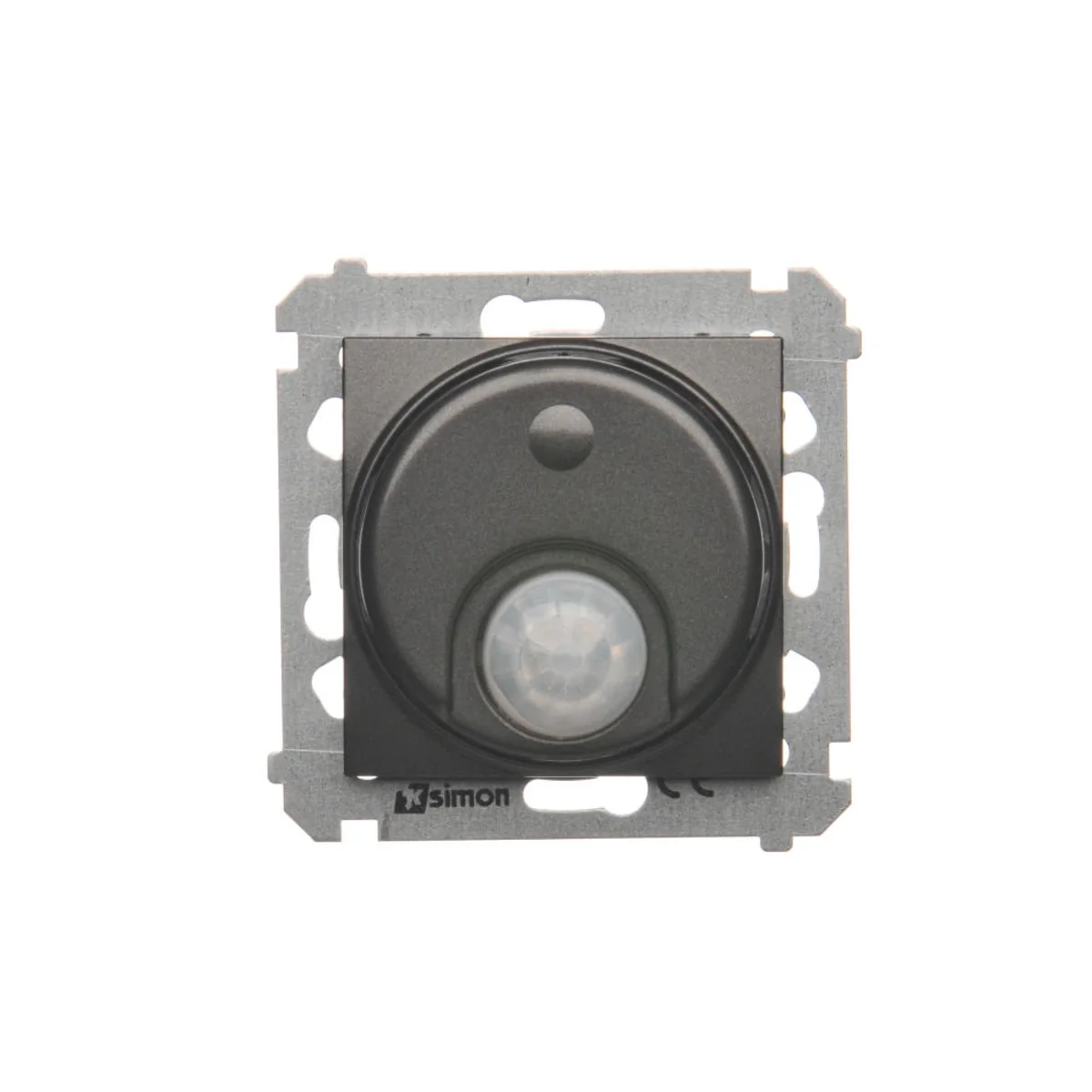

Switch with motion sensor with relay with protection (module) 8(2)A 230V anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Color: Silver

Family: SIMON 54 PREMIUM

Type: Fasteners

See full description

Price:

82,41 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Motion sensor switch with protection against unauthorized access to control elements 8(2) A (module) 230 V. Dedicated to public facilities. 3-wire installation required.

Technical data

Color

Silver
Type

Fasteners
PKWIU

27.33.11.0

Family

SIMON 54 PREMIUM
Accurate color

Anthracite

Other technical data

Model

Movement sensor
HVAC-control

No
Networkable

No
Max. reach sideways

7 m
Suitable for wireless transmission

No
Response value sensitivity adjustable

No
With signal unit

Yes
Dim function with dimmer basic element

No
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Frequency

50 ... 50 Hz
Min. switch-on time

5 s
Response value luminosity

2 ... 500 lx
Max. starting current

8 A

Constant light control

No
Animal zone

No
Optimum mounting height

1.2 m
Max. reach frontally

7 m
Remote operation

No
Response value luminosity adjustable

Yes
Teach-function for response value luminosity

No
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Voltage type

AC
Nominal voltage

230 V
Max. duty cycle

21 min
Temperature

0 ... 40 °C
Substation input

Yes

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,125	0,125	1,376
Width (m)	0,075	0,100	0,190
Length (m)	0,075	0,060	0,320
Depth (m)	0,051	0,150	0,100
