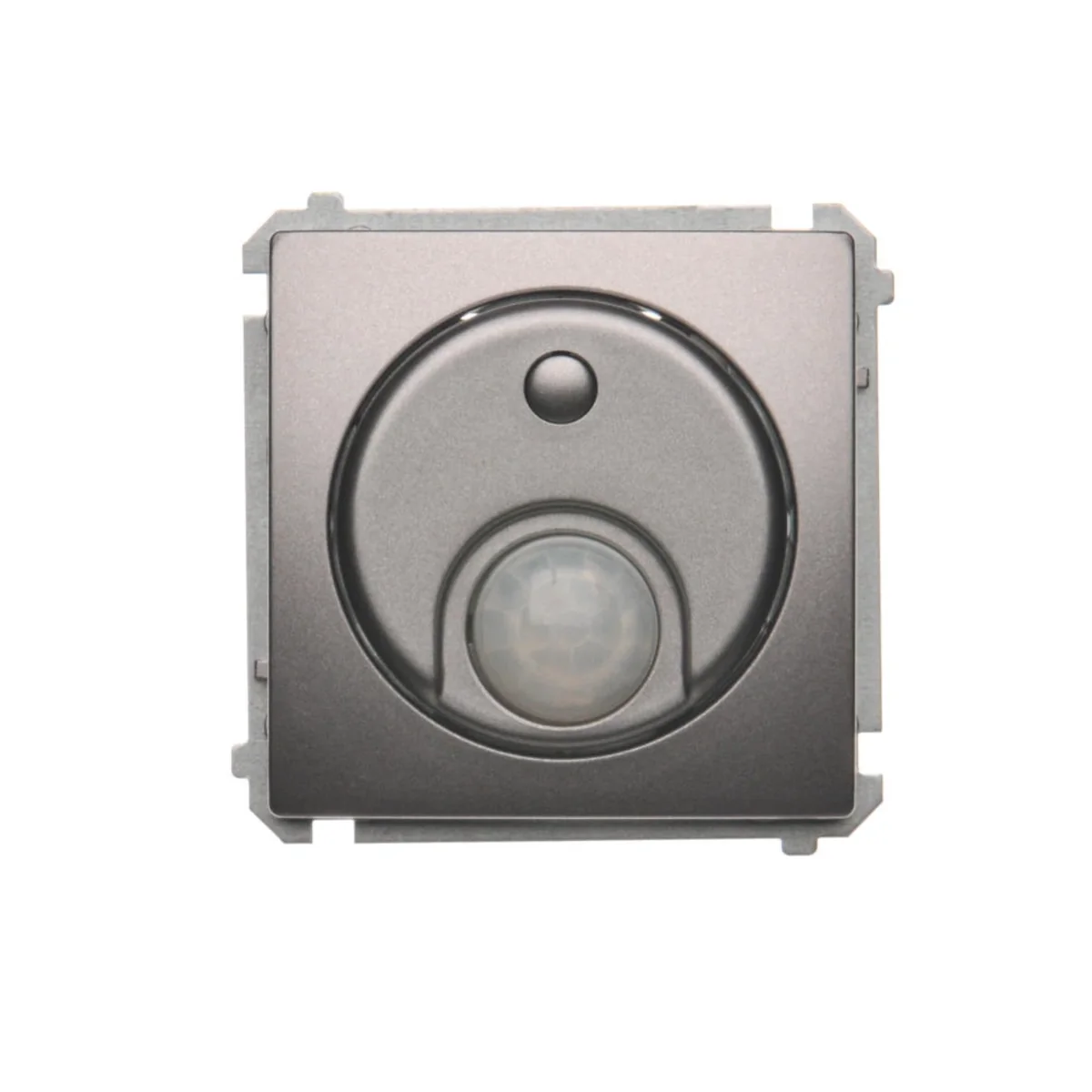

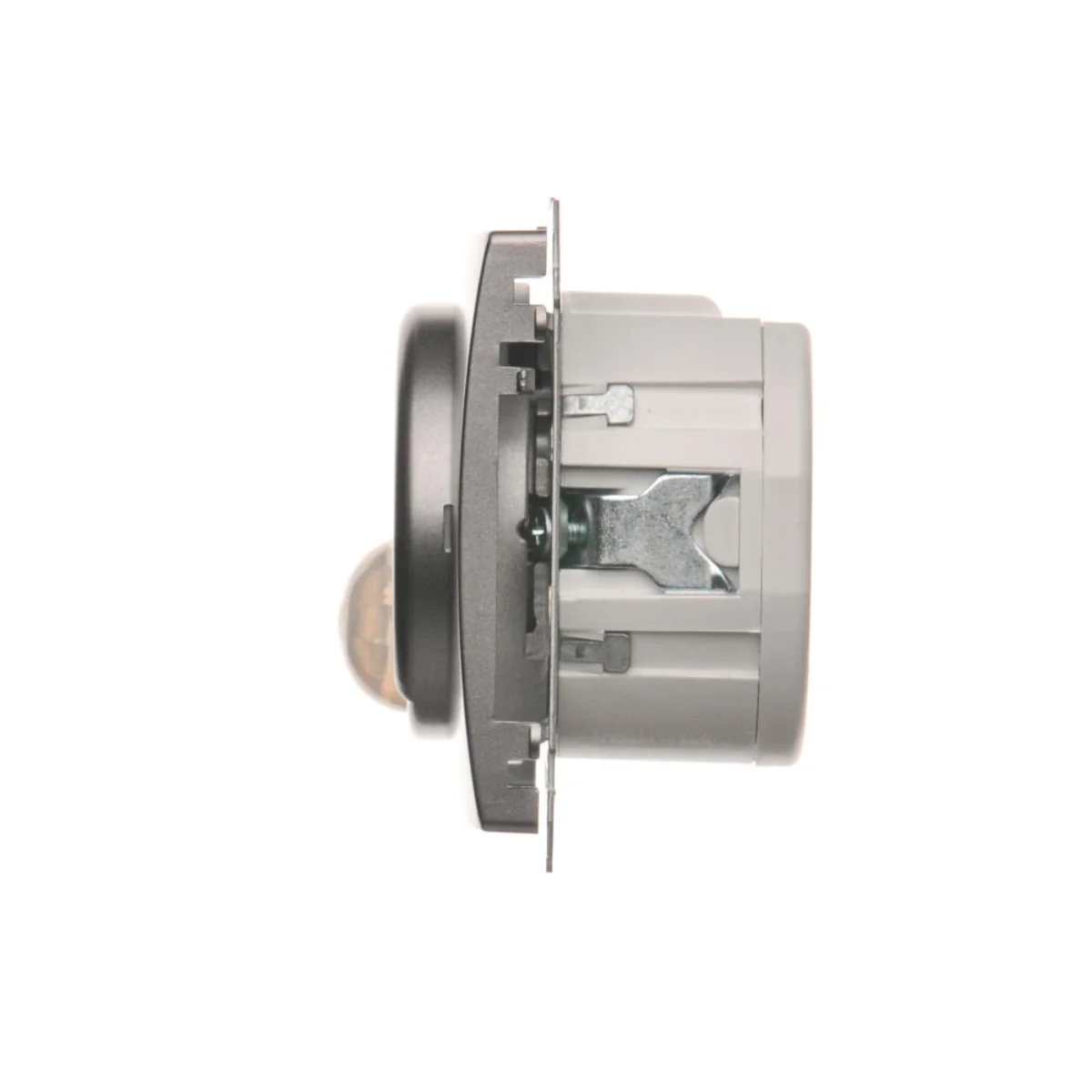

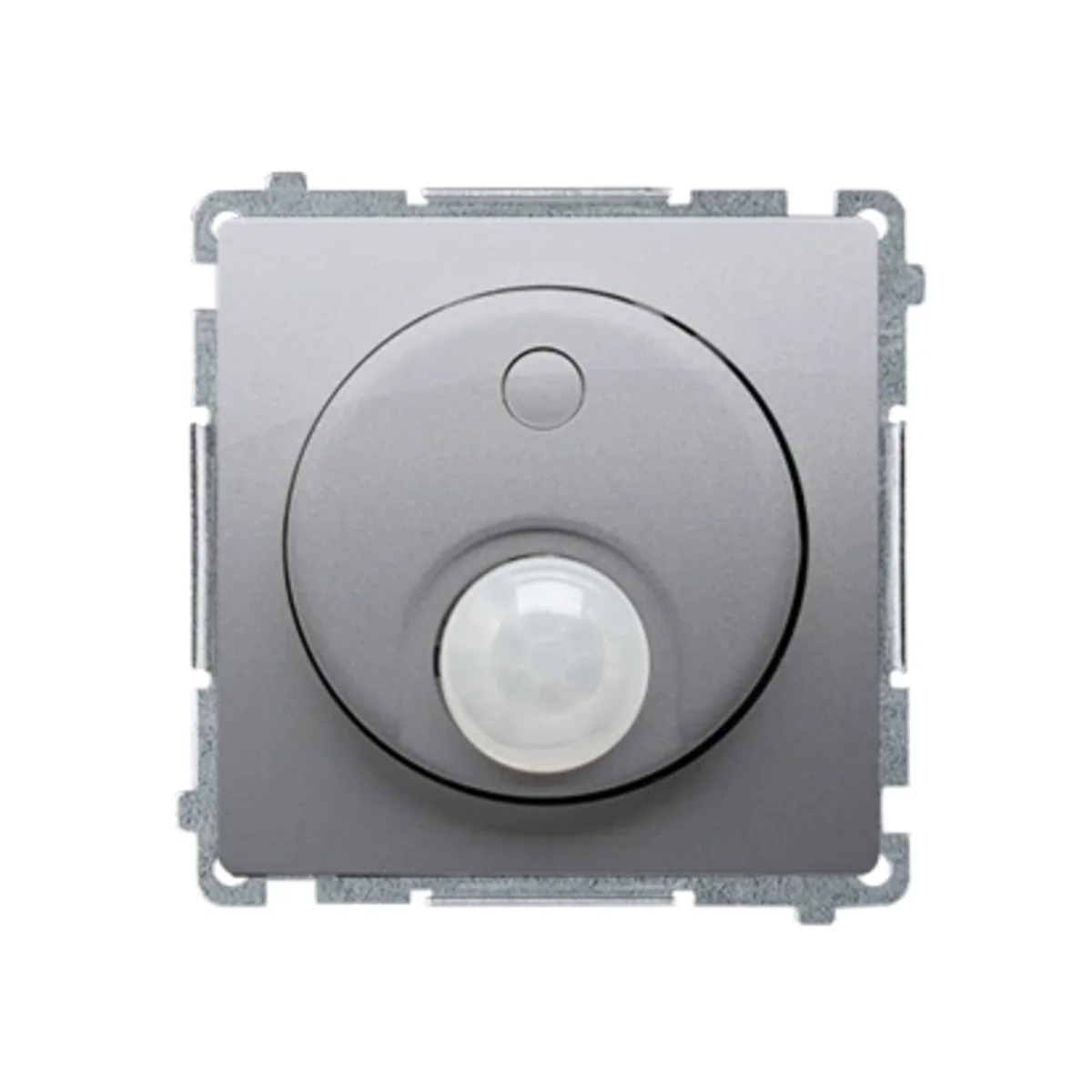

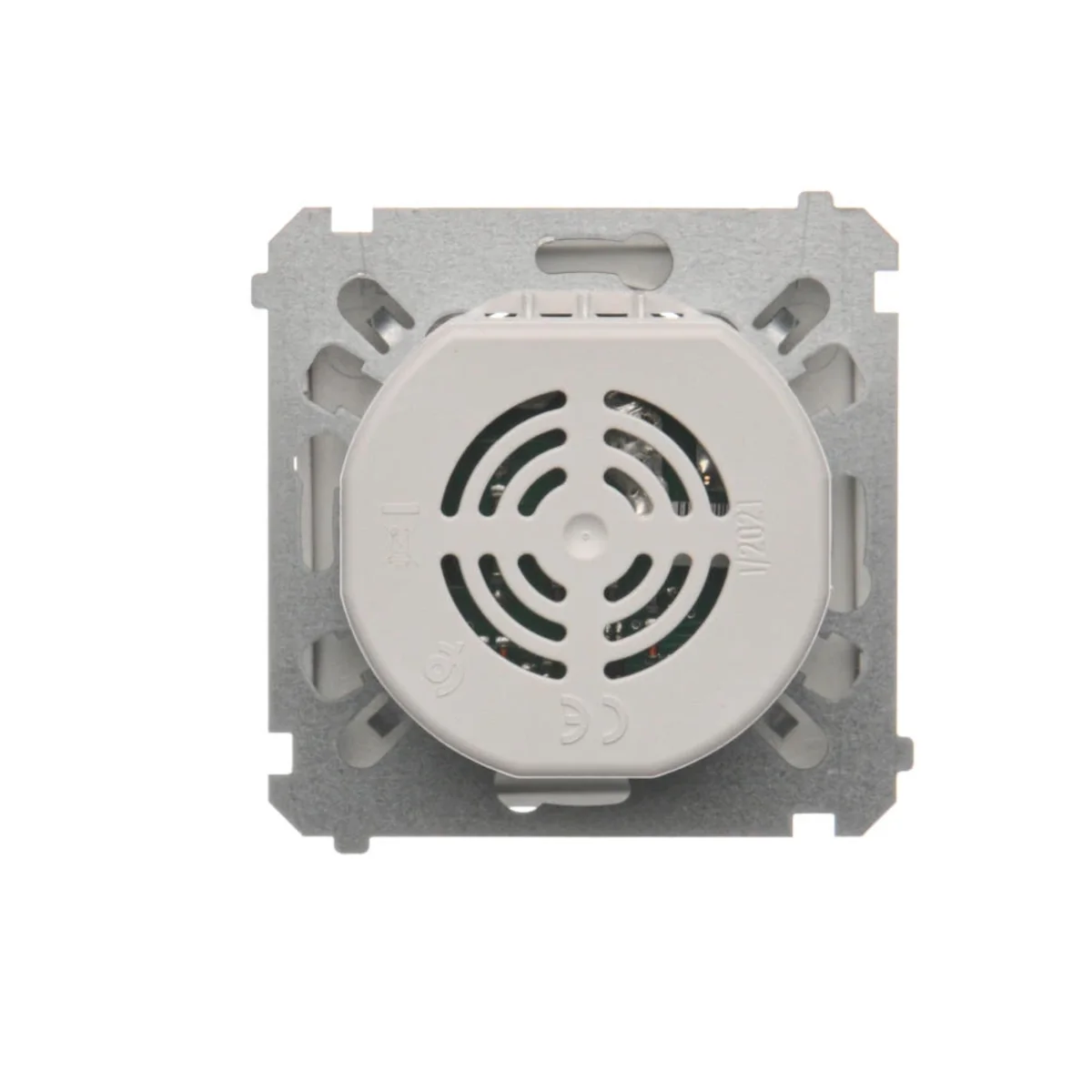

Switch with motion sensor (module) 8(2) A, 230V, metallic stainless steel BMCR11P.01/21

local index:
MWC029KONT
Catalog No:
BMCR11P.01/21
EAN code:
5902787555634
Manufacturer: KONTAKT-SIMON
Color: Silver
Rated voltage [V]: 230
Family: SIMON BASIC
Price:
71,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

3-wire installation required
With relay
With protection

Technical data

  • Color
    Silver
  • Family
    SIMON BASIC
  • Accurate color
    inox
  • Rated voltage [V]
    230
  • Type
    Fasteners
  • PKWIU
    27.33.11.0

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    No
  • Networkable
    Yes
  • Max. reach sideways
    7 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    No
  • With signal unit
    Yes
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    21 min
  • Temperature
    0 ... 40 °C
  • Substation input
    No
  • Constant light control
    No
  • Animal zone
    No
  • Optimum mounting height
    1.2 m
  • Max. reach frontally
    7 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    5 s
  • Response value luminosity
    2 ... 500 lx
  • Max. starting current
    8 A

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,123 0,123 1,323
Width (m) 0,075 0,085 0,190
Length (m) 0,075 0,055 0,230
Depth (m) 0,051 0,085 0,100
