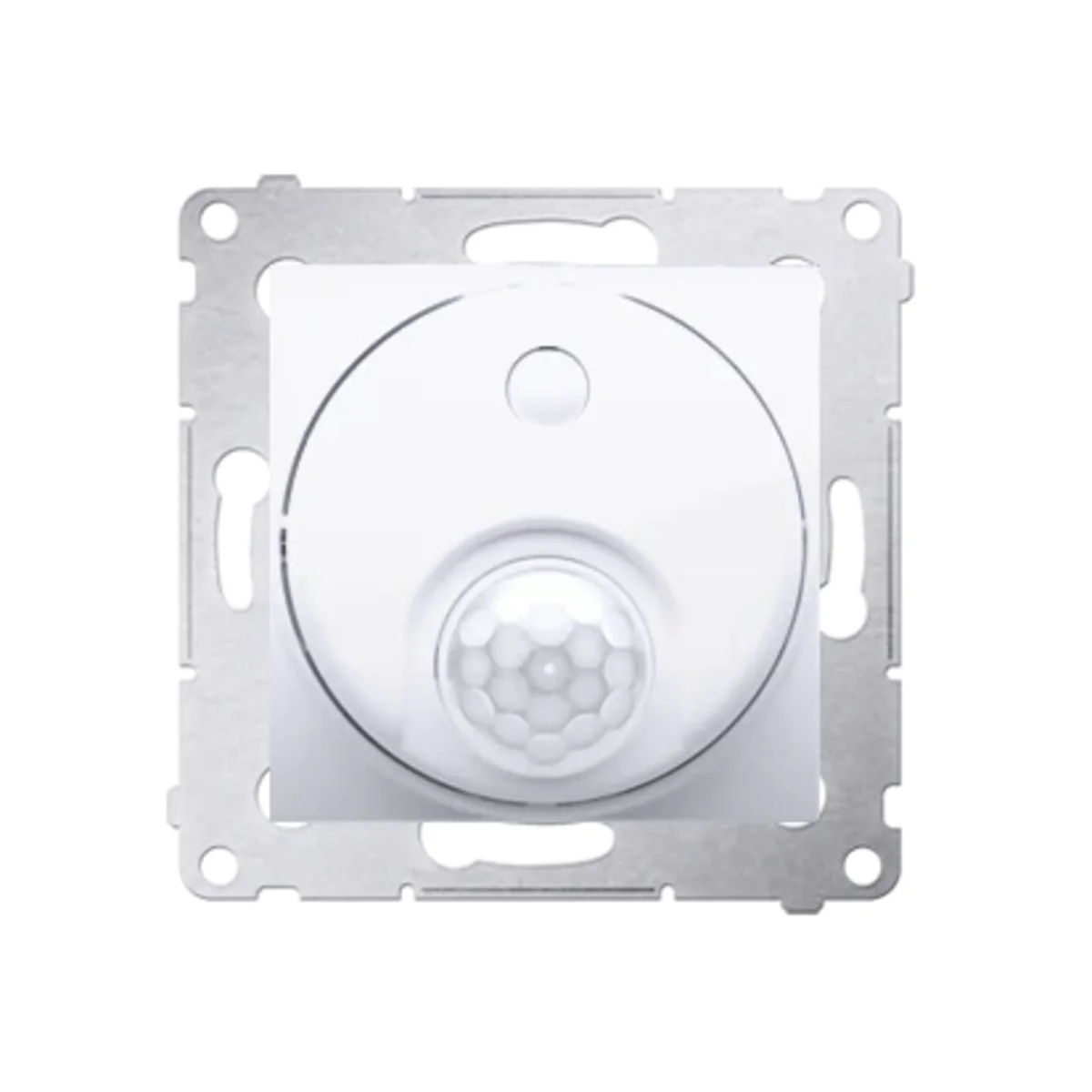

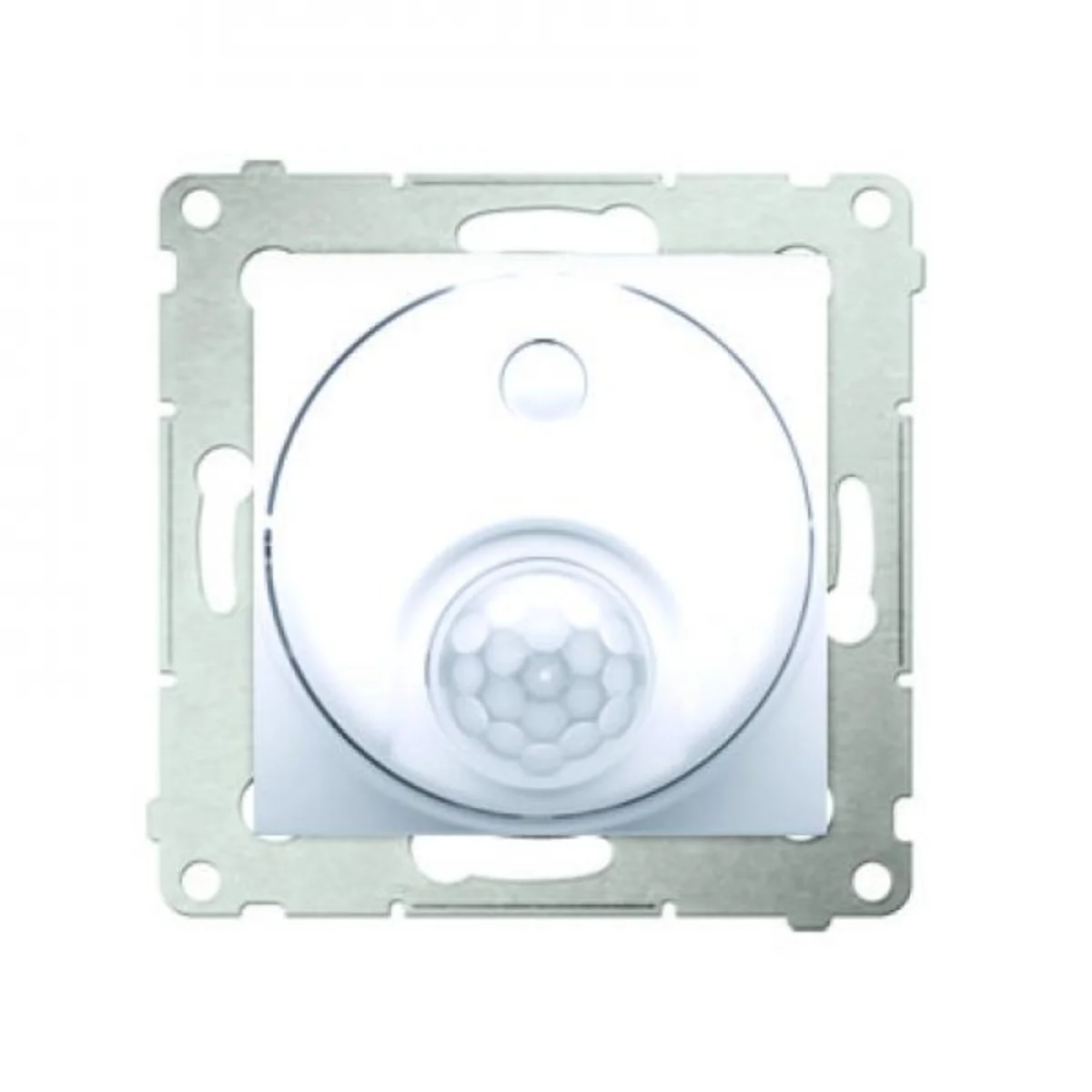

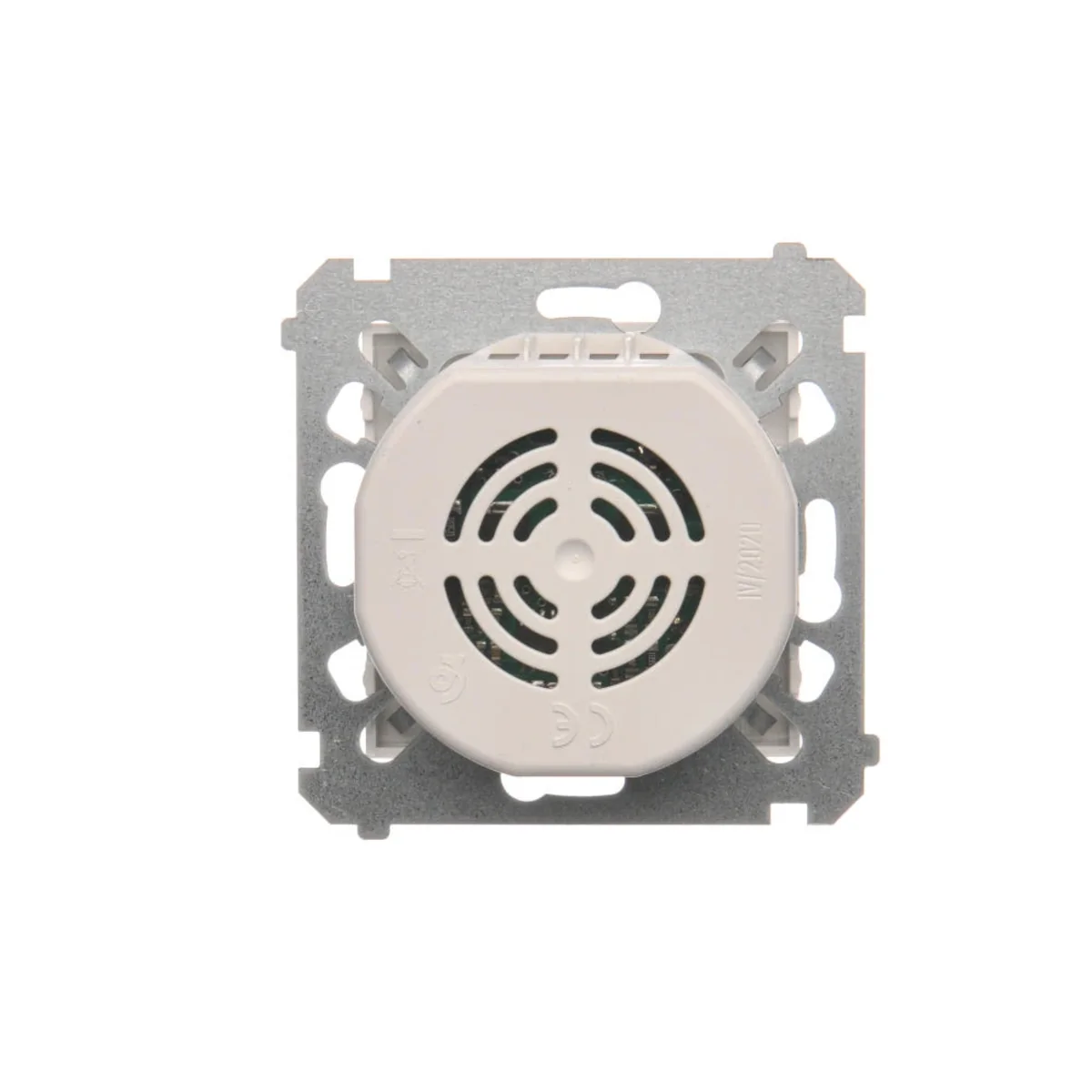

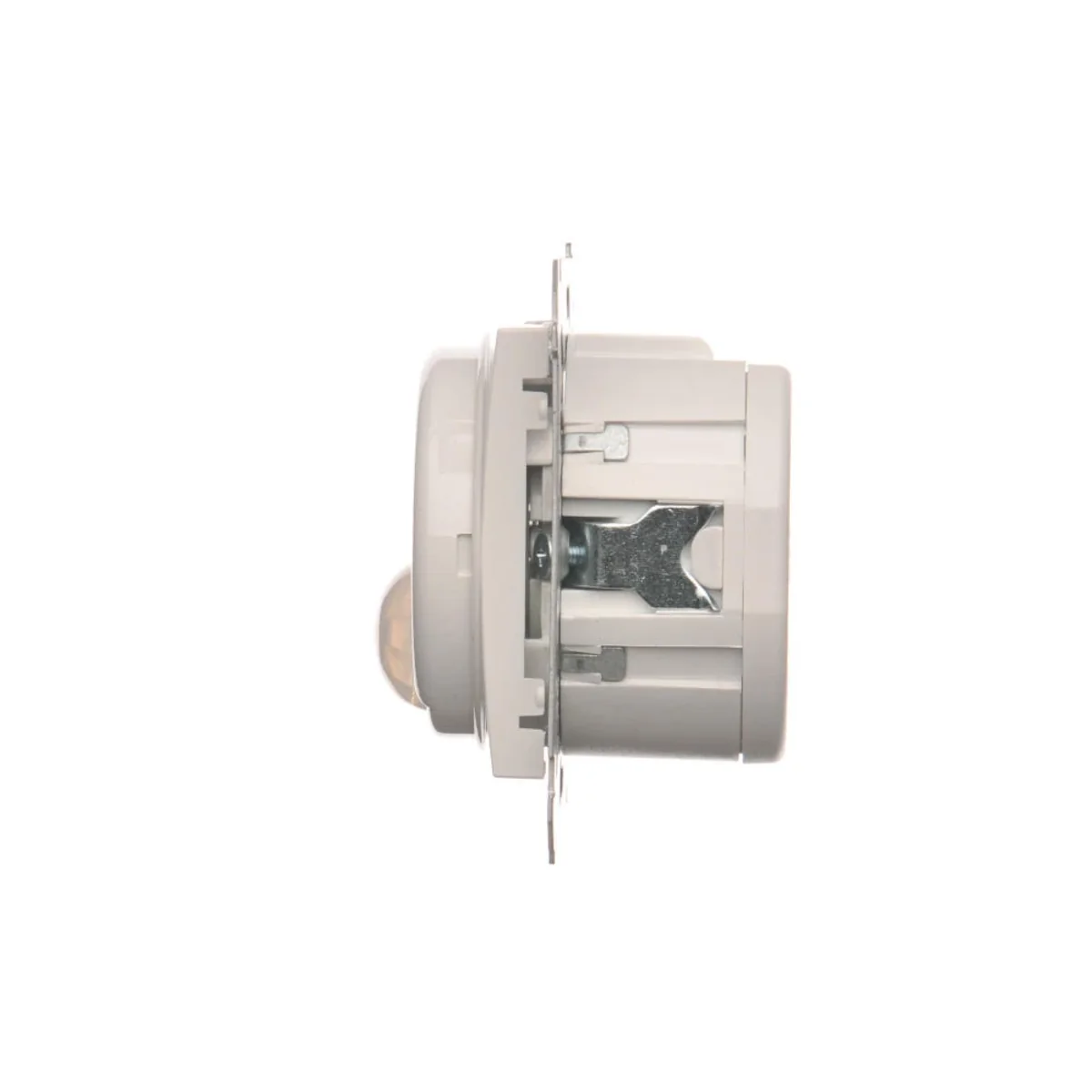

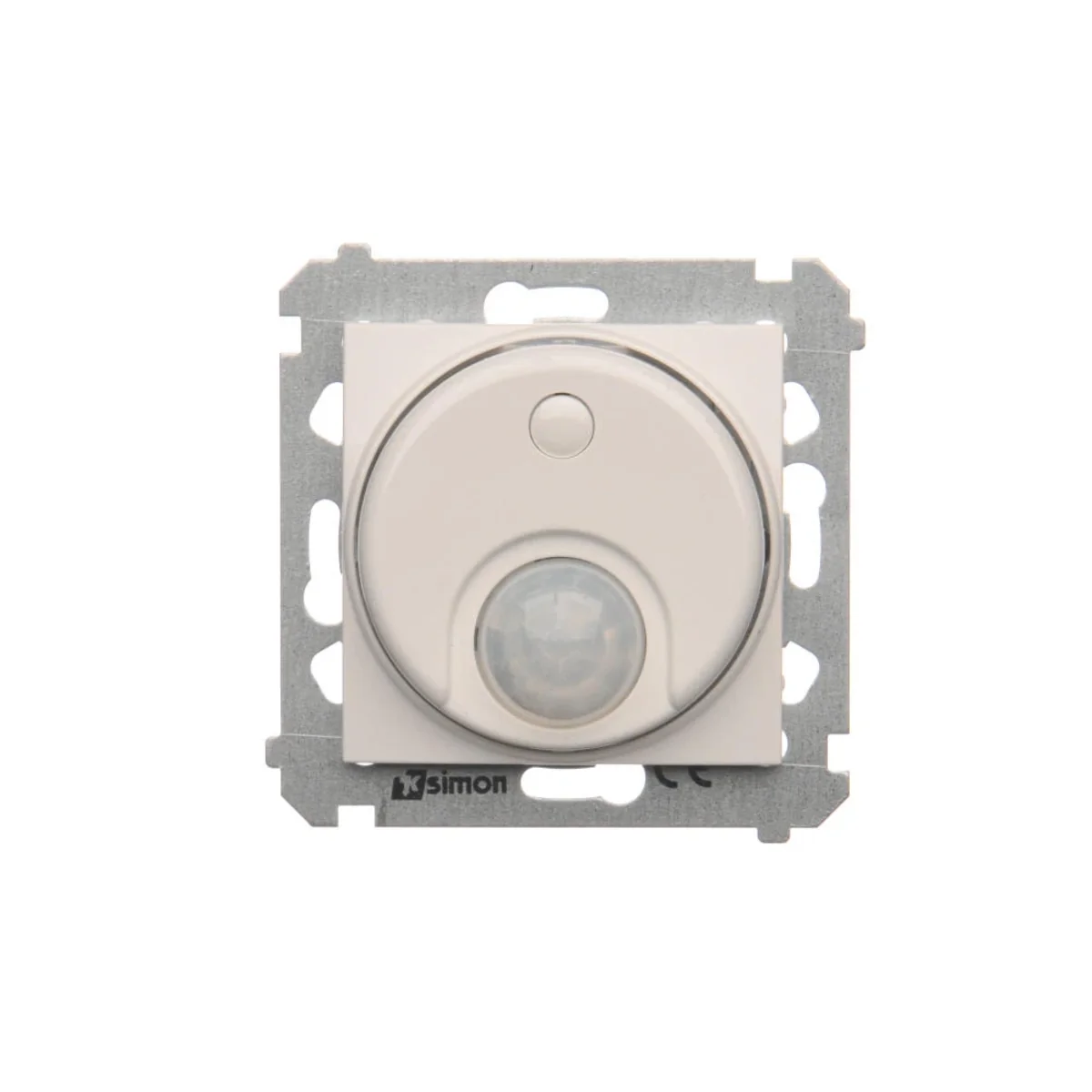

Switch with motion sensor and relay (module) 8(2)A 230V white DCR10P.01/11

local index:
MWC041KONT
Catalog No:
DCR10P.01/11
EAN code:
5902787826307
Manufacturer: KONTAKT-SIMON
Color: White
Family: SIMON 54 PREMIUM
Type: Fasteners
Price:
79,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Motion sensor switch with relay (module). 3-wire installation required. 8(2)A, 230V

Technical data

  • Color
    White
  • Type
    Fasteners
  • PKWIU
    27.33.11.0
  • Family
    SIMON 54 PREMIUM
  • Accurate color
    White

Other technical data

  • Model
    Movement sensor
  • HVAC-control
    No
  • Networkable
    Yes
  • Max. reach sideways
    7 m
  • Suitable for wireless transmission
    No
  • Response value sensitivity adjustable
    No
  • With signal unit
    Yes
  • Dim function with dimmer basic element
    No
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    White
  • Frequency
    50 ... 50 Hz
  • Min. switch-on time
    5 s
  • Response value luminosity
    2 ... 500 lx
  • Max. starting current
    8 A
  • Constant light control
    No
  • Animal zone
    No
  • Optimum mounting height
    1.2 m
  • Max. reach frontally
    7 m
  • Remote operation
    No
  • Response value luminosity adjustable
    Yes
  • Teach-function for response value luminosity
    No
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Voltage type
    AC
  • Nominal voltage
    230 V
  • Max. duty cycle
    21 min
  • Temperature
    0 ... 40 °C
  • Substation input
    No

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,124 0,124 1,389
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,060 0,320
Depth (m) 0,051 0,150 0,100
