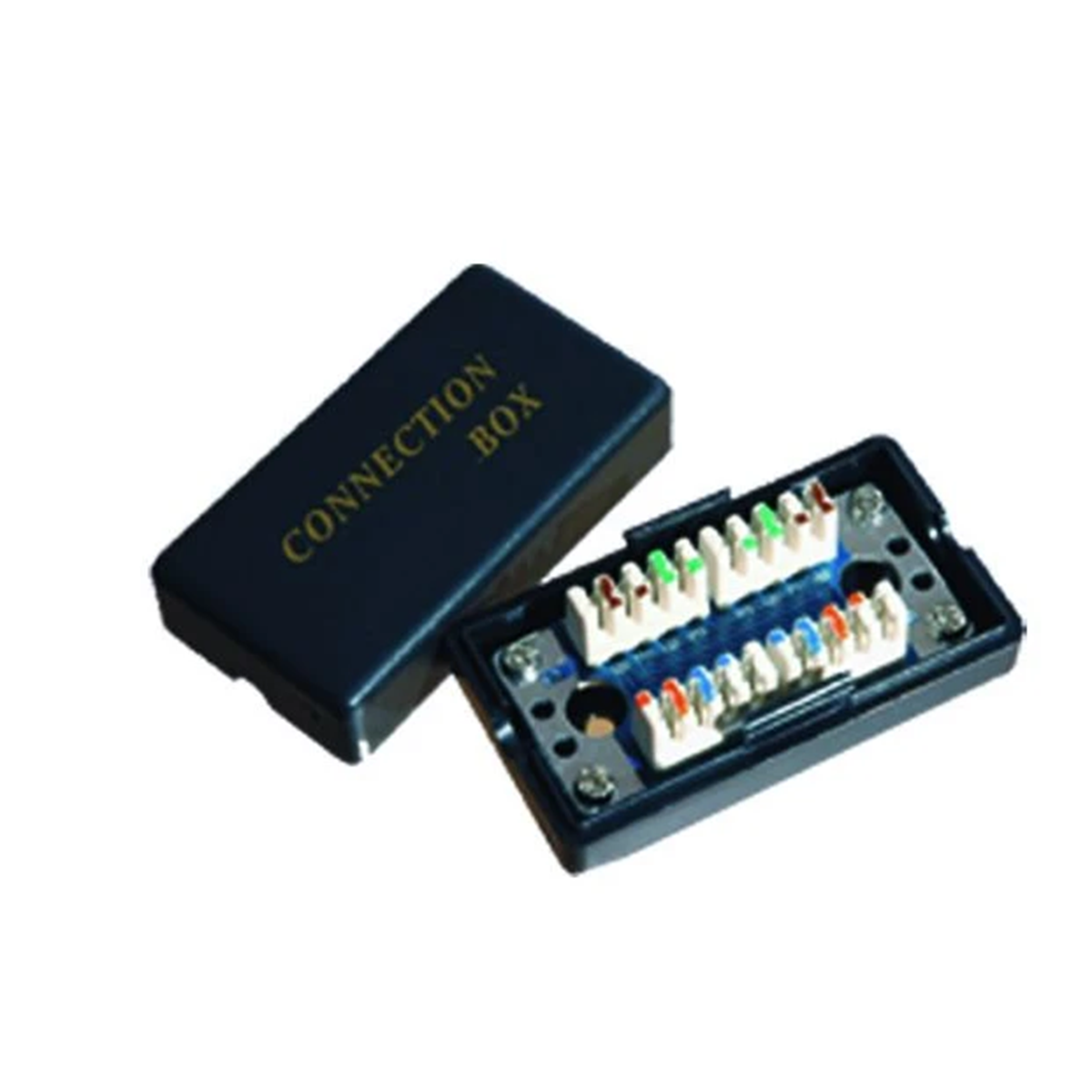

Surface-mounted UTP cat. 5e cable connector, crimped with a patch knife FU/FA-757K-C5E-BK
local index:
AEA081EMSO
Catalog No:
FU/FA-757K-C5E-BK
EAN code:
5906764104051
Manufacturer:
EMITER
Category: 5e
Price:
1,53 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Product description and technical characteristics:
The cable connector is used to connect broken teleinformation cables while maintaining the transmission parameters (and thus the link class). Available in unshielded version.
The connector is made with a patch knife.
Technical parameters:
dimensions (width x height x depth) - 72x47x28mm
color - black (FU/FA-757K-C5E-BK)
weight - 38g
Connector - type IDC-LSA
material - PC case, UL 94V-0
IDC contact - phosphor bronze, 100 micron nickel coating, outer coating: 200 micron tin
Mechanical parameters:
IDC connector - 200 mating cycles
Cable size - 24 to 26 AWG
Operating temperature: -10'C to +68'C
Humidity - 10% to 90%
Electrical parameters:
Maximum current - 1.5A
Maximum voltage - 150V
Maximum contact resistance - 20mΩ
Minimum insulation resistance - 500 MΩ
Transmission:
Transmission parameters in accordance with the PN - EN 50173 EIA/TIA 568B standard;
ISO/IEC 11801 2nd ed.; IEC 61156-6; EN 50288-4-2
Technical data
-
Category5e
Other technical data
-
ModelOther
-
Built-in possibility for over voltage protectionNo
-
ColourOther
-
Width65 mm
-
Max. number of dual cores8
-
Connection typeLSA Plus
-
With strip codeYes
-
Length25 mm
-
Height35 mm
-
AWG-range24 ... 26
