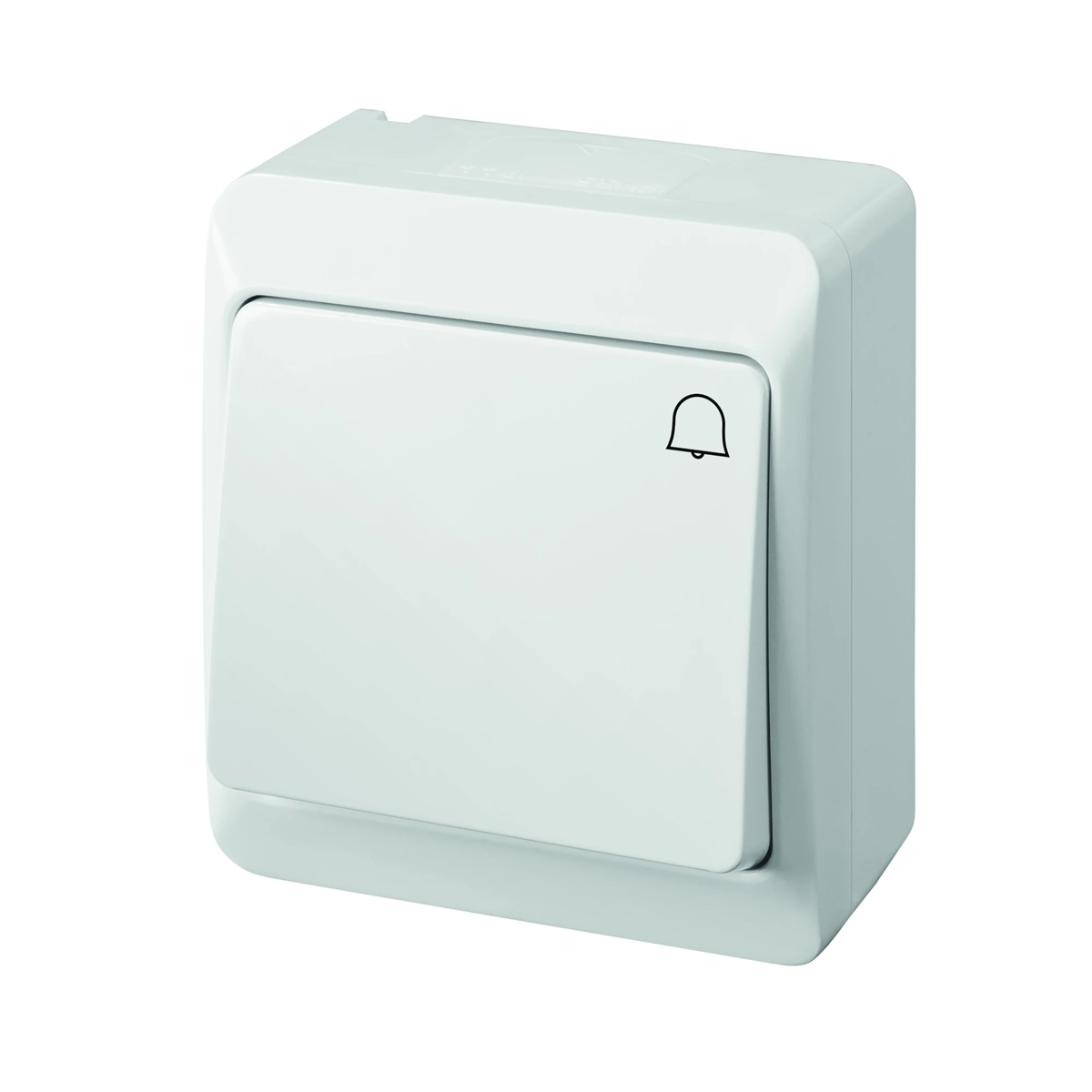

Surface-mounted switch, doorbell - white, IP44 HERMES 0337-02

local index:
MNZ003ELNA
Catalog No:
0337-02
EAN code:
5901130484027
Depth [mm]: 46
Number of keys: 1
Color: White
Price:
3,05 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The "bell" switch from the Hermes series, from the manufacturer ELEKTRO-PLAST. The product part number is 0337-02.



FEATURES

  • Hermetic.
  • Threaded clamps.



SERIES DESCRIPTION

Hermes is a hermetic series for indoor and outdoor applications. It will work best in laundries, warehouses and catering rooms. The "bell" connector characterizes the features of this unique series.

Technical data

  • Depth [mm]
    46
  • Color
    White
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP44
  • Type
    Surface-mounted
  • Height [mm]
    75
  • Terminal type
    Threaded
  • For the frame system
    NO
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Rectangular
  • Installation
    Surface-mounted
  • Rated current [A]
    10
  • Family
    HERMES
  • Width [mm]
    65
  • Version
    Confident
  • Backlight
    NO
  • Variant
    Bell
  • Exact material
    ABS
