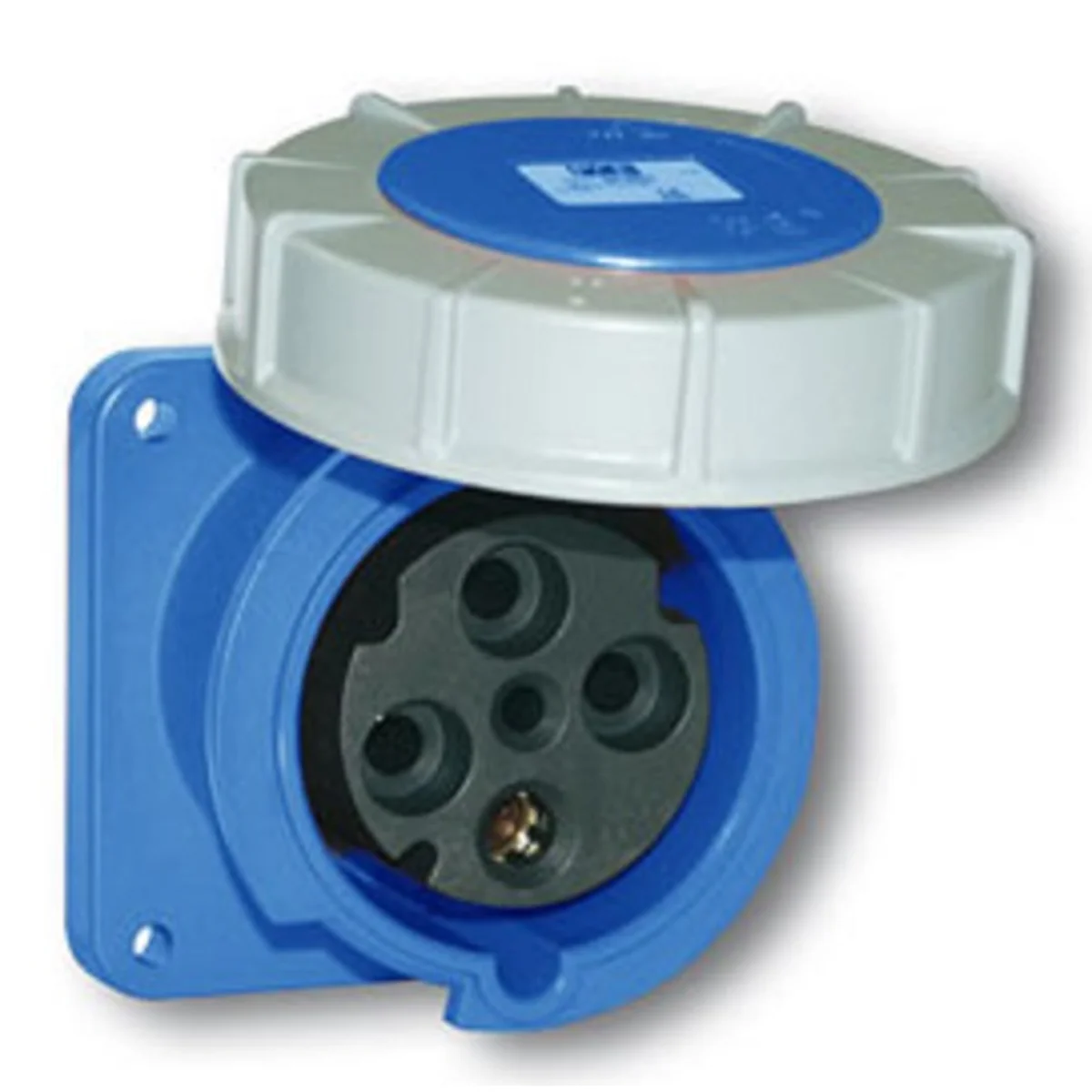

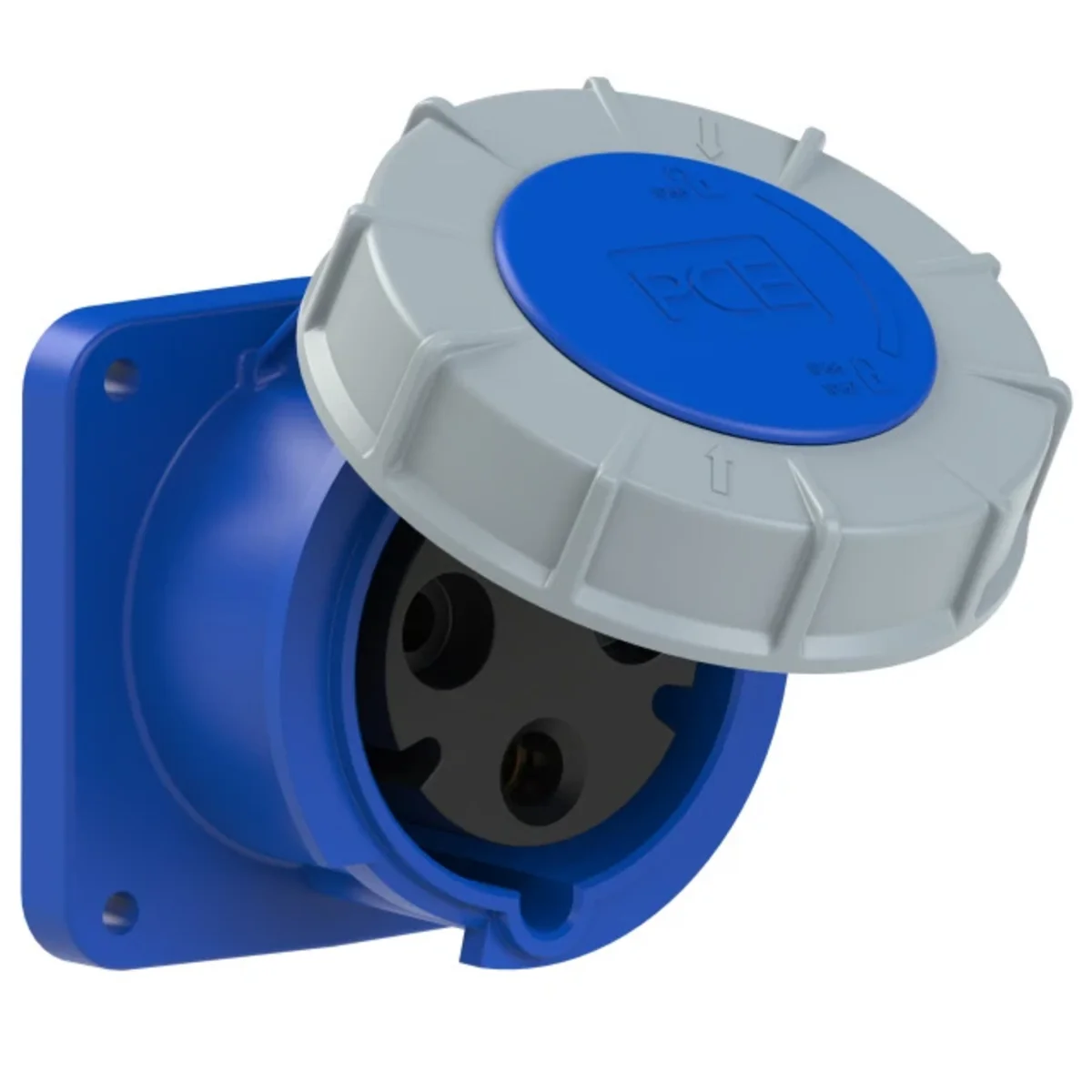

Straight panel socket POWER TWIST IP72 63A 230V 2P+E 100x100mm IP67 333-6

Lokaler Index:
MKN028PCEQ
Katalognummer:
333-6
EAN-Code:
9003399199998
Hersteller: PCE
Rated frequency [Hz]: 50/60
Number of contacts: 3
Rated voltage [V]: 230
Preis:
129,13 zł
gross / stk.
(inklusive MwSt 23%)
263,53 zł gross/kg.
bis zu 2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

Straight panel socket POWER TWIST IP72 63A 230V 2P+E 100x100mm IP67

Technische Daten

  • Rated frequency [Hz]
    50/60
  • Rated voltage [V]
    230
  • Clamping force [Ncm]
    200
  • Weight [g]
    490
  • Number of contacts
    3
  • Rated current [A]
    63
  • Connection type
    cage contact
  • PKWIU
    27.33.13.0

Weitere technische Daten

  • IEC-amperage
    63 A
  • Number of poles
    3
  • Identification colour
    Blue
  • Connection system
    Screwed terminal
  • Material
    Plastic
  • Surface treatment contacts
    Untreated
  • Drill hole distance vertical
    80 mm
  • Drill hole distance horizontal
    80 mm
  • Voltage according to EN 60309-2
    230 V (50+60 Hz) blue
  • Clock hour position
    6 h
  • Degree of protection (IP)
    IP67
  • Insert direction
    Straight
  • Contact material
    CuZn
  • Flange size vertical
    100 mm
  • Flange size horizontal
    100 mm

Hersteller-Details

  • Hersteller
    PCE Polska Sp. z o.o.
  • Adresse
    58-200 Dzierżoniów Podwalna 8A Polska
