Straight panel socket 32A 2P+E 24/42V DC 10h IP66/67 (54X60 flange, 44X44 hole spacing), nickel-plated contacts 3932-10F9V

Index local:
MKN278PCEQ
Numéro de catalogue:
3932-10F9V
Code EAN:
9003399309434
Producteur: PCE
Flange [mm]: 54X60
Number of poles: 3
Rated voltage [V]: 42
Prix:
52,55 zł
gross / pcs.
(y compris la TVA 23%)
Livraison en 3h
Produit sur demande individuelle
Ramassage en 1h
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Imprimer

Description du produit

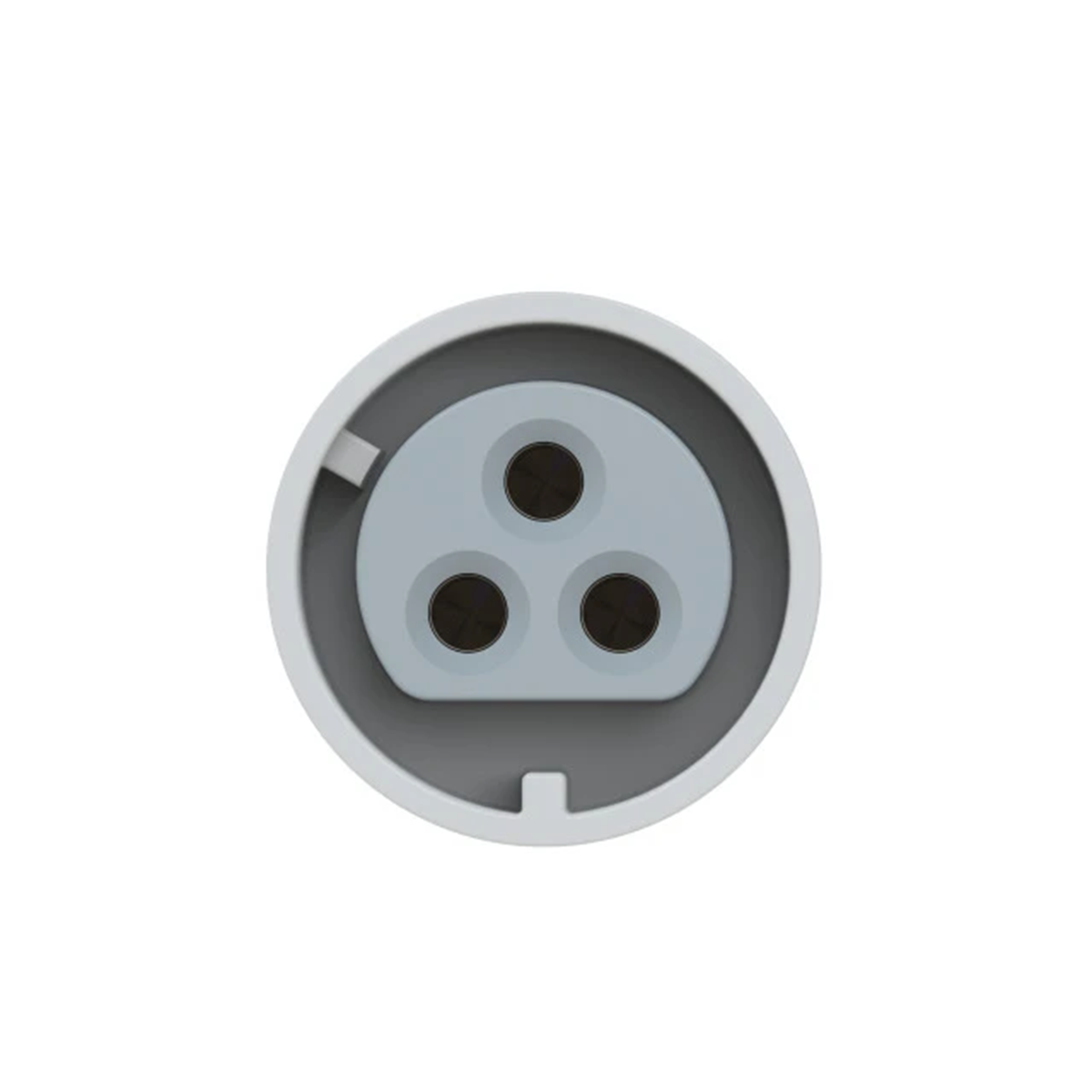

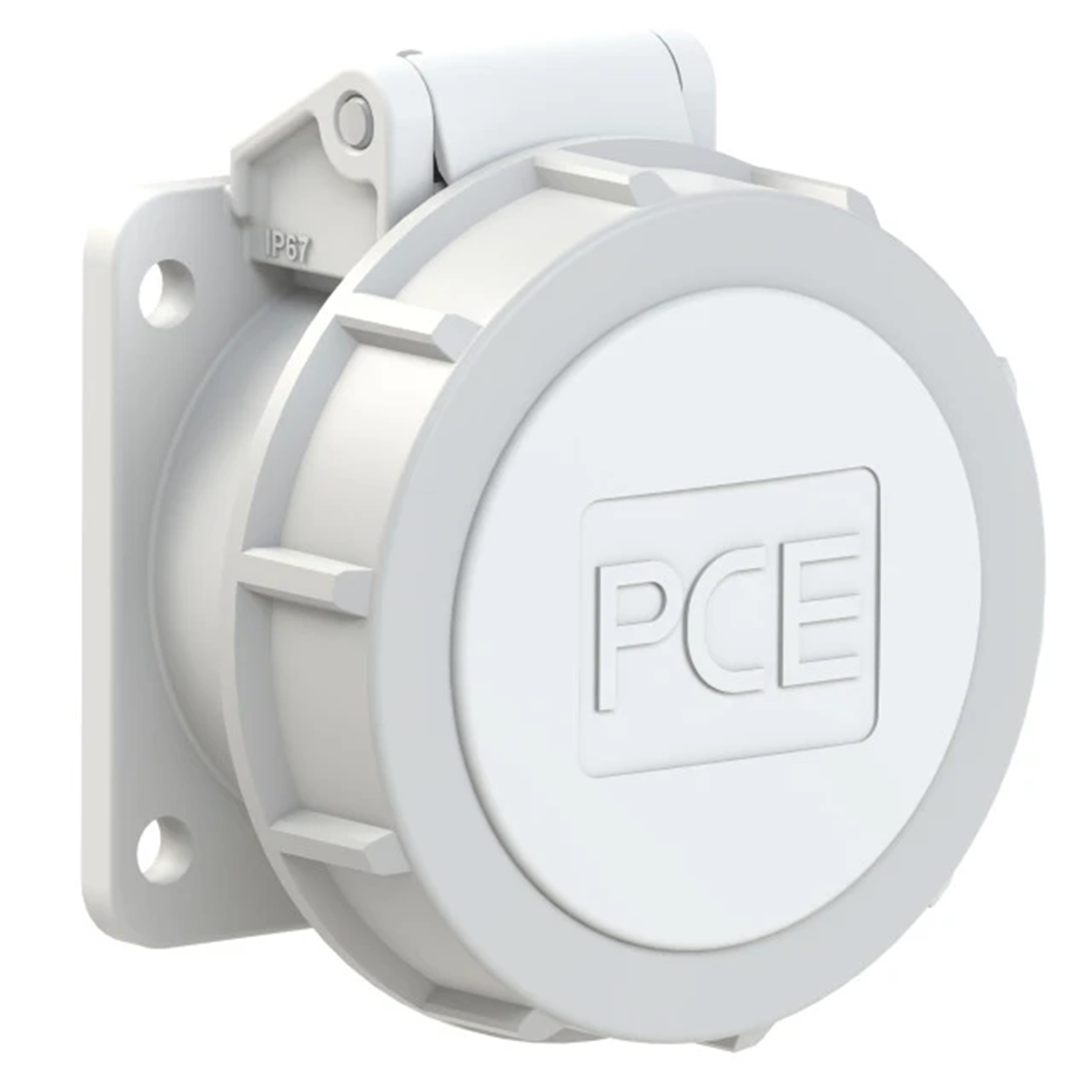

Straight panel socket 32A 2P+E 24/42V DC 10h IP66/67 (54X60 flange, 44X44 hole spacing), nickel-plated contacts

Données techniques

  • Flange [mm]
    54X60
  • Rated voltage [V]
    42
  • Bolt spacing
    44X44
  • PKWIU
    27.33.13.0
  • Number of poles
    3
  • Rated current [A]
    32
  • Level of security
    IP66 IP67

Autres données techniques

  • IEC-amperage
    32 A
  • Number of poles
    3
  • Identification colour
    White
  • Connection system
    Screwed terminal
  • Material
    Plastic
  • Surface treatment contacts
    Nickel-plated
  • Drill hole distance vertical
    44 mm
  • Drill hole distance horizontal
    44 mm
  • Voltage according to EN 60309-2
    <50 V DC grey
  • Clock hour position
    10 h
  • Degree of protection (IP)
    IP67
  • Insert direction
    Straight
  • Contact material
    CuZn
  • Flange size vertical
    60 mm
  • Flange size horizontal
    54 mm

Détails du fabricant

  • Producteur
    PCE Polska Sp. z o.o.
  • Adresse
    58-200 Dzierżoniów Podwalna 8A Polska
  • E-mail
