Straight panel socket 32A 2P 42V 50/60Hz 12h IP44/54 (54X60 flange, 44X44 hole spacing), nickel-plated contacts 3922-12F9V

Índice local:
MKN274PCEQ
Número de catálogo:
3922-12F9V
Código EAN:
9003399308529
Fabricante: PCE
Rated frequency [Hz]: 50/60
Flange [mm]: 54X60
Number of poles: 2
Precio:
46,40 zł
gross / uds.
(IVA incluido 23%)
Entrega en 3h
Producto a petición individual
Recogida en 1h
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Imprimir

Descripción del producto

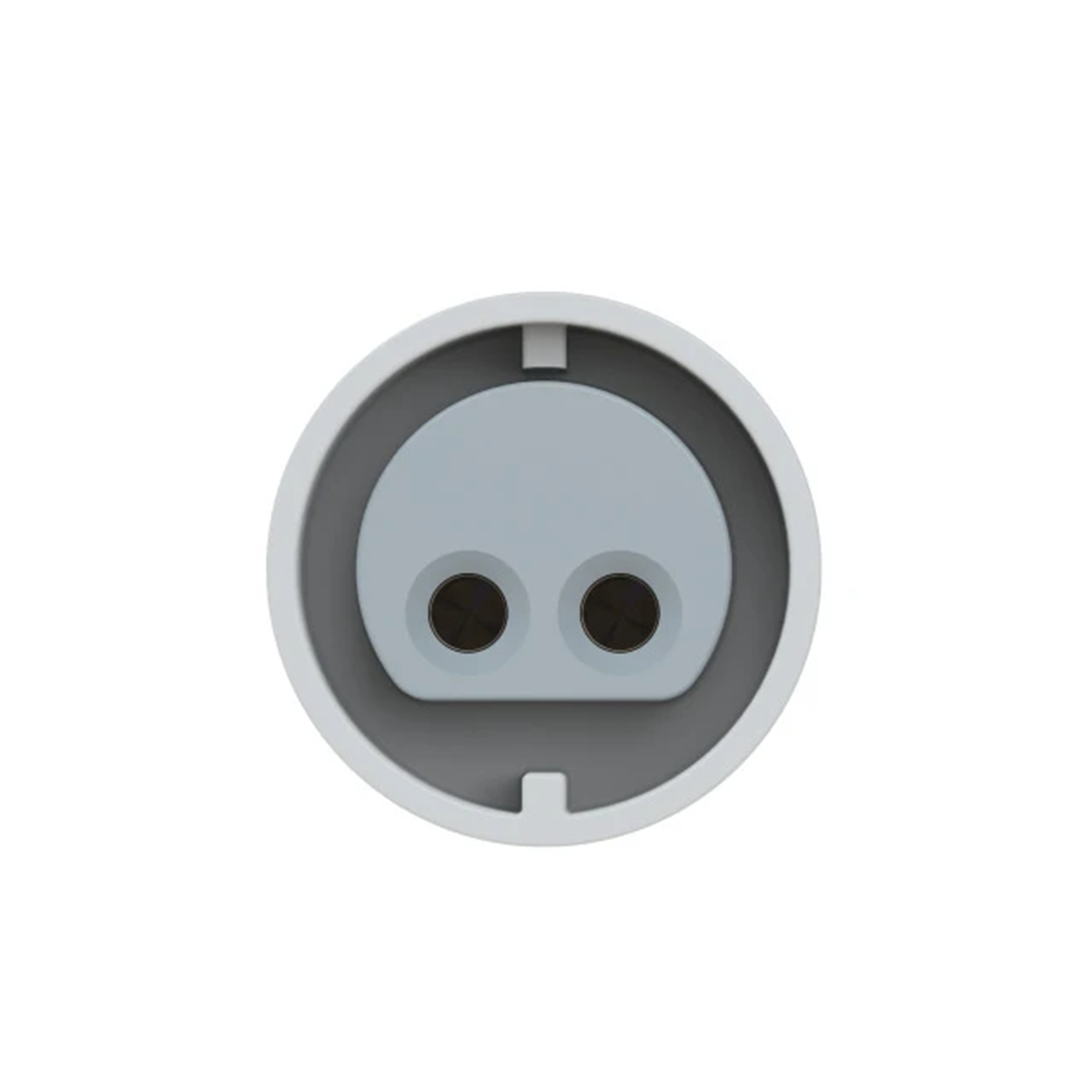

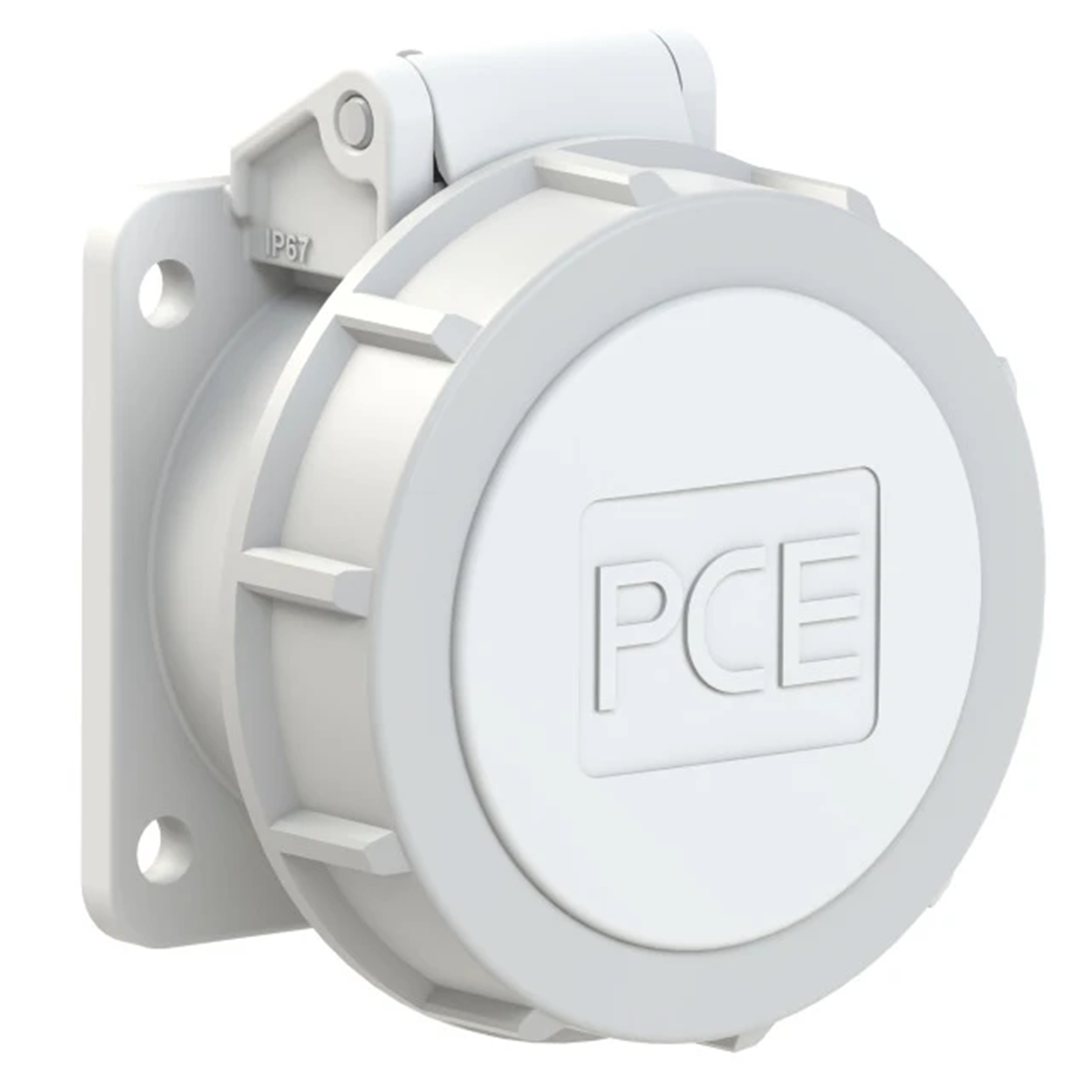

Straight panel socket 32A 2P 42V 50/60Hz 12h IP44/54 (54X60 flange, 44X44 hole spacing), nickel-plated contacts

Datos técnicos

  • Rated frequency [Hz]
    50/60
  • Number of poles
    2
  • Rated current [A]
    32
  • Level of security
    IP44
  • Flange [mm]
    54X60
  • Rated voltage [V]
    42
  • Bolt spacing
    44X44
  • PKWIU
    27.33.13.0

Otros datos técnicos

  • IEC-amperage
    32 A
  • Number of poles
    2
  • Identification colour
    White
  • Connection system
    Screwed terminal
  • Material
    Plastic
  • Surface treatment contacts
    Nickel-plated
  • Drill hole distance vertical
    44 mm
  • Drill hole distance horizontal
    44 mm
  • Voltage according to EN 60309-2
    40-50 V (50+60 Hz) white
  • Clock hour position
    12 h
  • Degree of protection (IP)
    IP67
  • Insert direction
    Straight
  • Contact material
    CuZn
  • Flange size vertical
    60 mm
  • Flange size horizontal
    54 mm

Detalles del fabricante

  • Fabricante
    PCE Polska Sp. z o.o.
  • Dirección
    58-200 Dzierżoniów Podwalna 8A Polska
  • Email
