STD-F3 RW1 33° single socket with grounding pin 6120222

Lokaler Index:
MGE007OBOB
Katalognummer:
6120222
EAN-Code:
4012196048540
Hersteller: OBO BETTERMANN
Preis:
24,61 zł
gross / stk.
(inklusive MwSt 23%)
2 Wochen
Auf Bestellung
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Technische Daten

Weitere technische Daten

  • Model
    Earthing pin
  • Number of modules (module system)
    1
  • Imprint/indication
    None
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9010
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    None
  • Type of fastening
    Snap mounting (engagement)
  • Material quality
    Thermoplastic
  • With on/off switch
    No
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    Other

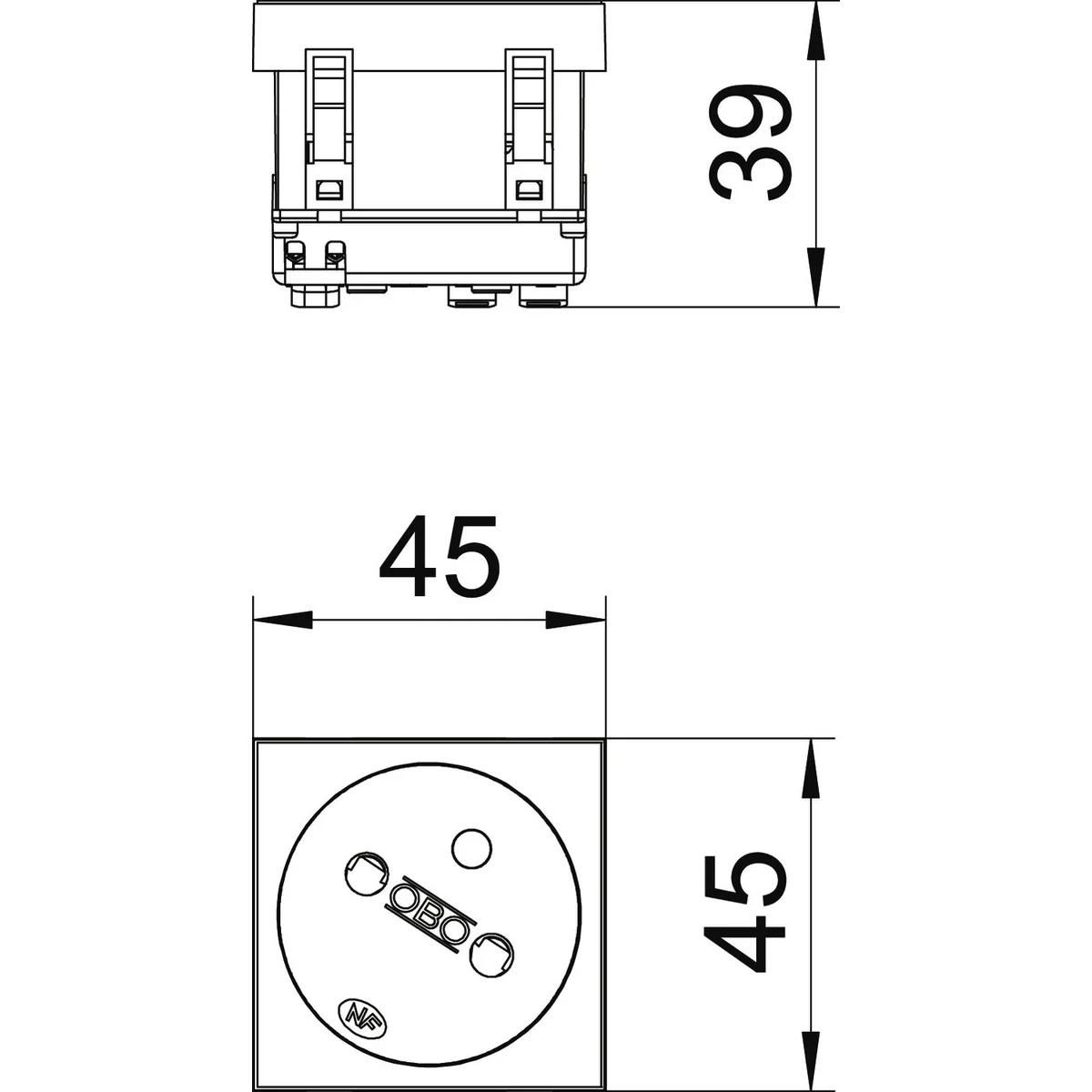

  • Device height
    45 mm
  • With signal lamp
    No
  • Number of socket outlets switchable
    0
  • Connection type
    Push-in clamp
  • With enhanced contact protection
    Yes
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Wall duct
  • Material
    Plastic
  • Halogen free
    Yes
  • Rotated central insert
    Yes
  • Nominal voltage
    250 V
  • Device width
    45 mm
  • Device depth
    39 mm

Hersteller-Details

  • Hersteller
    OBO Bettermann Holding GmbH & Co. KG
  • Adresse
    58710 Menden Hüingser Ring 52 Niemcy
  • E-Mail

Großpackungen

Eine Art Paket Sztuka Skrzynia Paleta
Menge 1 stk. 12 stk. 5760 stk.
Gewicht (kg) 0,039 0,518 280,452
Volumen (m3) 0,000 0,001 0,912
Breite (m) 0,045 0,137 0,800
Länge (m) 0,045 0,182 1,200
Tiefe (m) 0,042 0,043 0,950
