Stair switch with LED backlight (module) 16A 230V screw terminals white DW6AL.01/11
local index:
MMS107KONT
Catalog No:
DW6AL.01/11
EAN code:
5902787559540
Price:
9,75 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

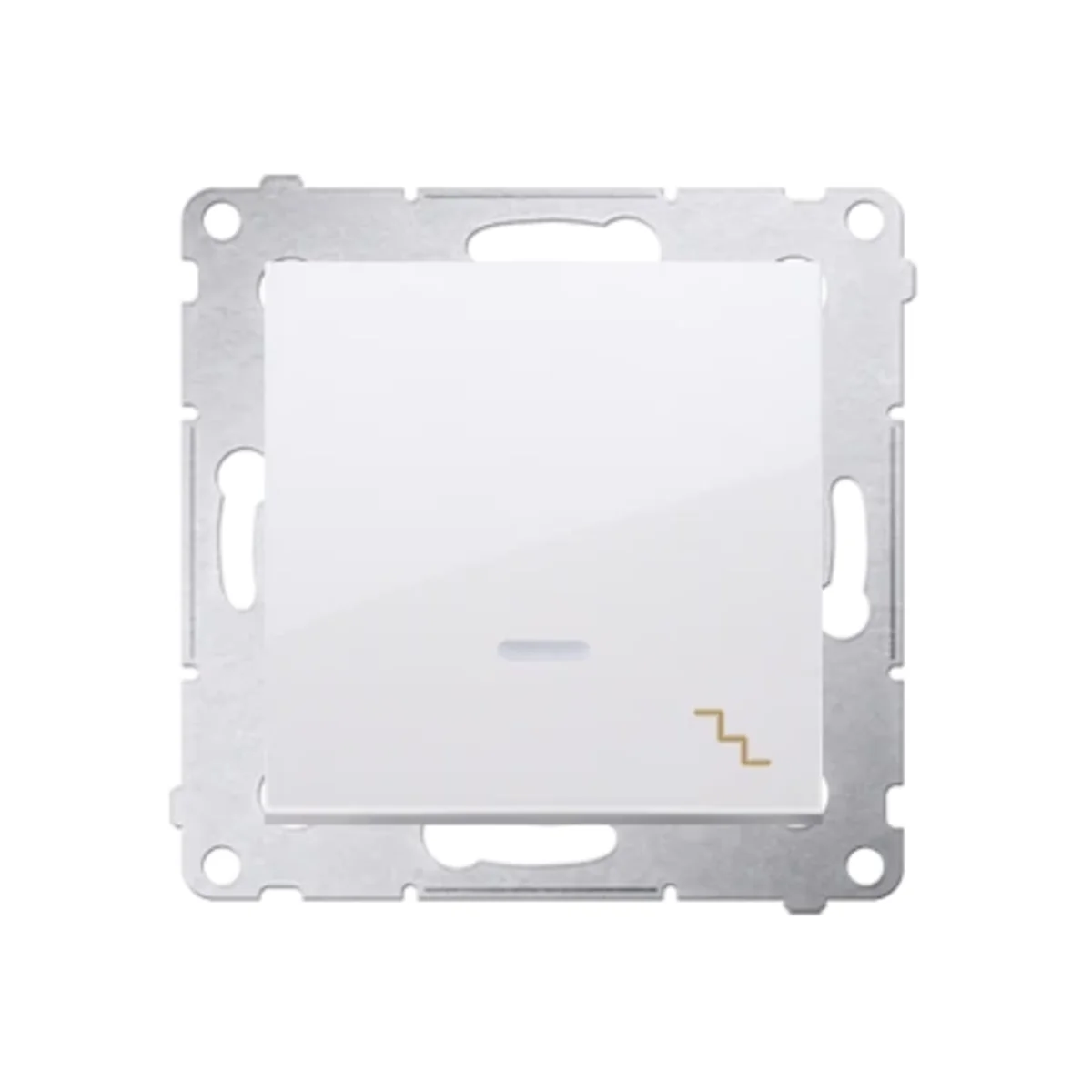

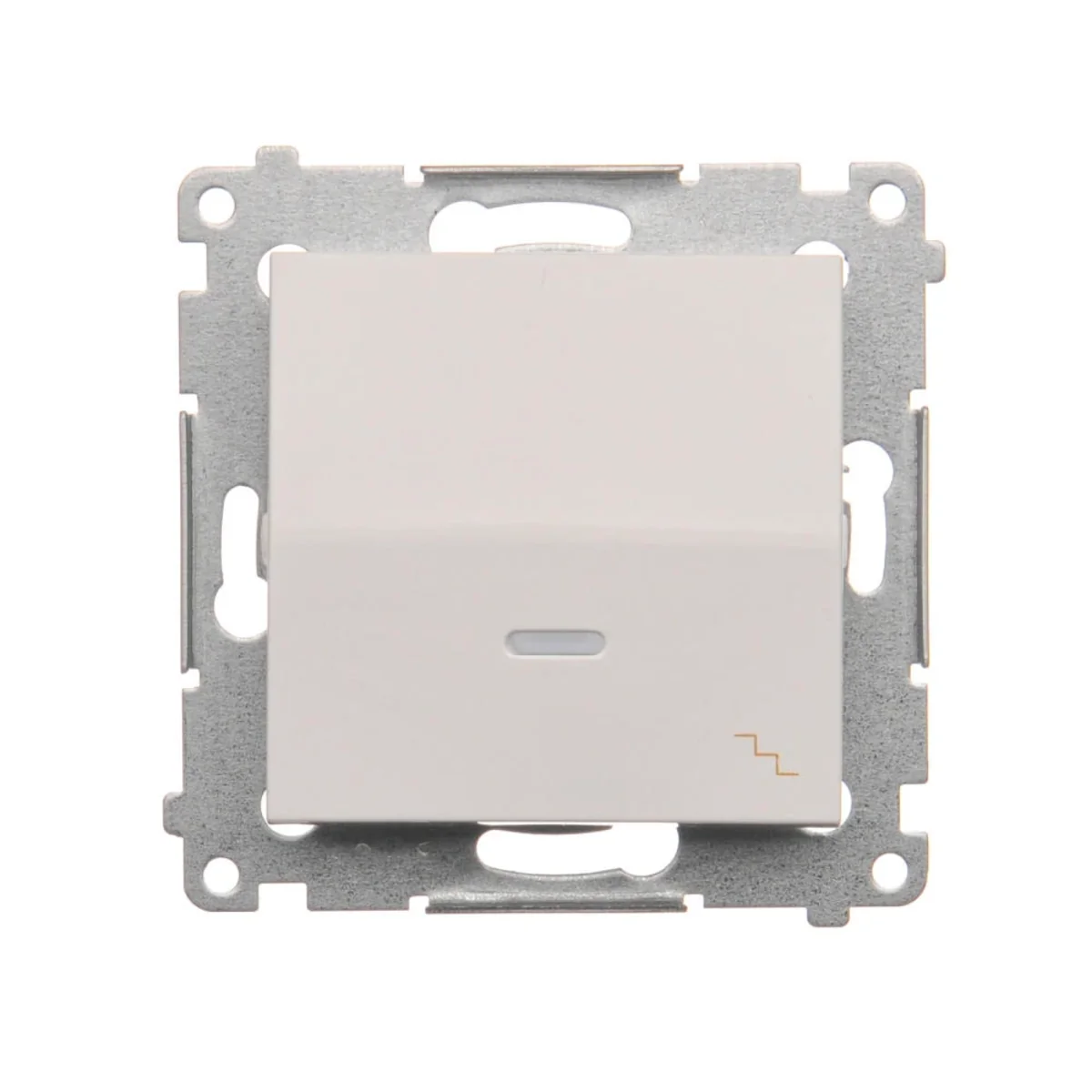

Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW6AL.01/11.
FEATURES
- With built-in blue backlight (LED replaceable).
- "stairs" symbol on the key. < li>Module without frame.

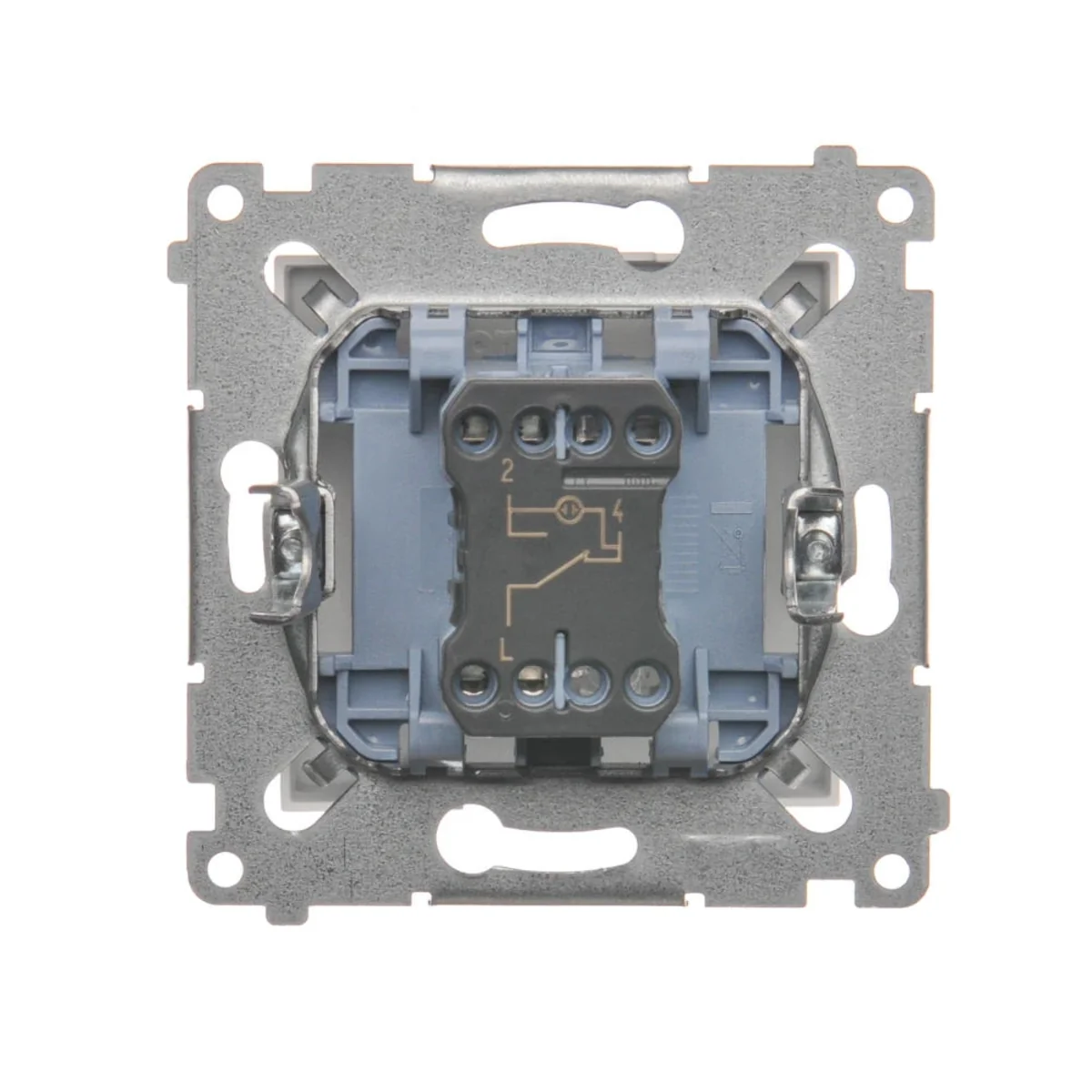

- Screw terminals.
- Color white.
- Rated current of fluorescent lamps 16AX.
- Rated voltage 230V.
- Mounting flush< /strong>.
- Dimensions: 75 x 75 mm (H x W).
- Made of PC.
- The key rocker.
- Bistable switch.
- To obtain IP44 splash-proof class, use a frame gasket.
SERIES DESCRIPTION
SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.
Technical data
-
Halogen freeYes
-
Number of keys1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
Width [mm]75
-
Height [mm]75
-
Surface finishShiny
-

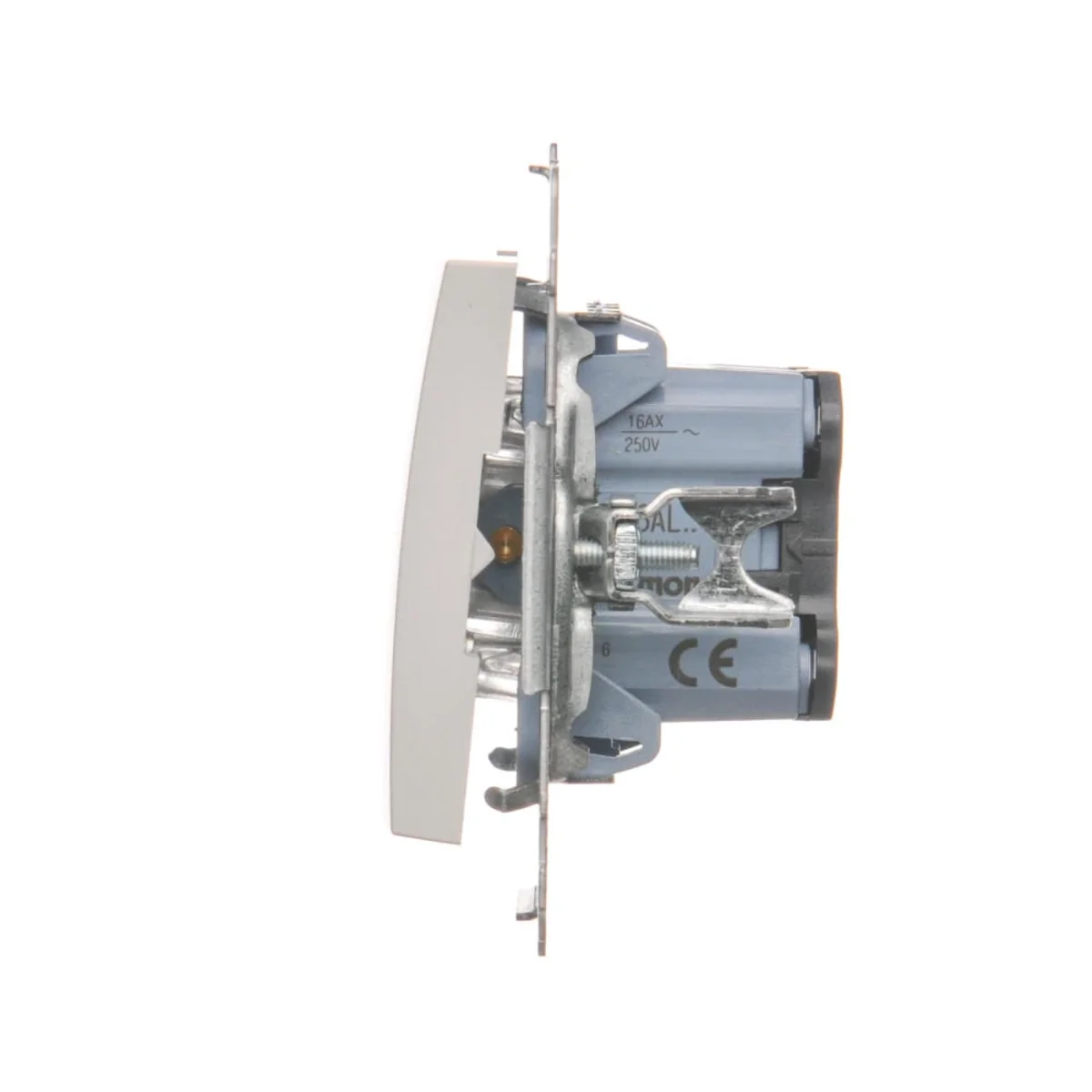

Mounting depth [mm]26
-
For the frame systemYes
-
Backlight typeOrientation LED
-
PKWIU27.33.11.0
-
Depth [mm]41
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 54
-
SymbolStairs
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPC
-
Backlight colorBlue
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourWhite
-
Nominal voltage250 V
-
Connection typeScrewed terminal
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,062 | 0,062 | 0,713 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,041 | 0,160 | 0,100 |
