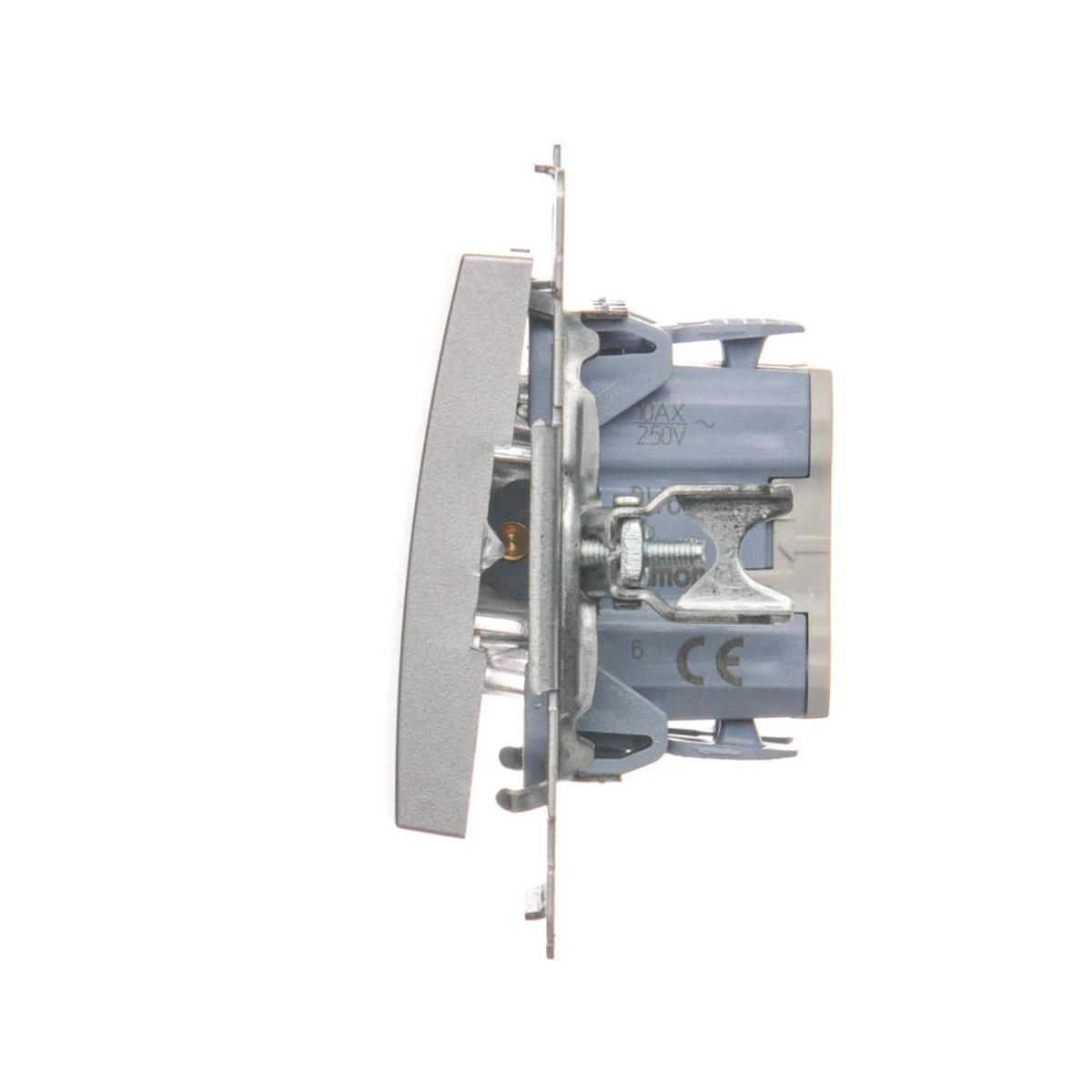

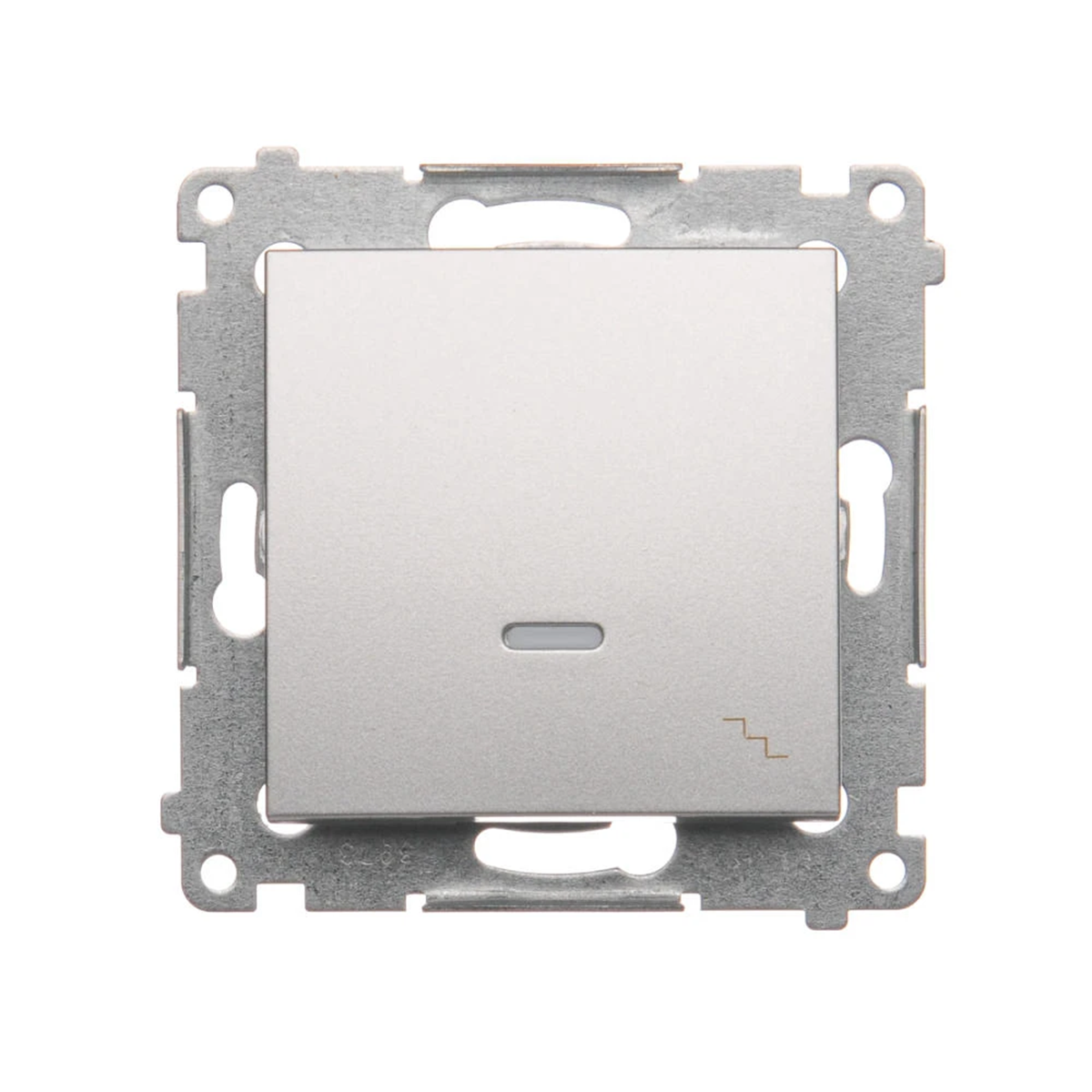

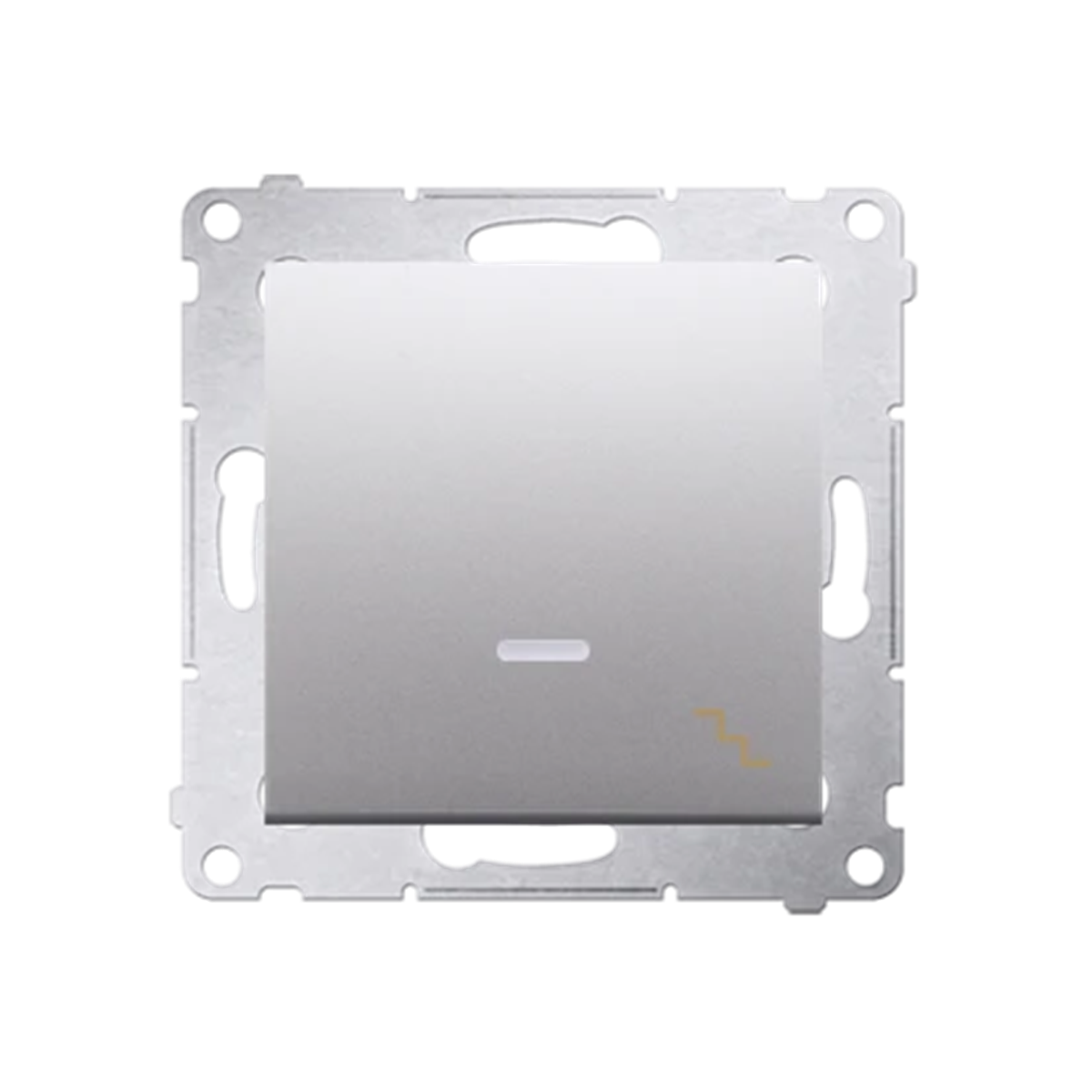

Stair switch with LED backlight (module) 10A 250V quick connectors silver (metallic) DW6L.01/43

Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW6L.01/43.

FEATURES

• With built-in blue backlight (LED replaceable).
• "stairs" symbol on the key.
< li>Module without a frame.

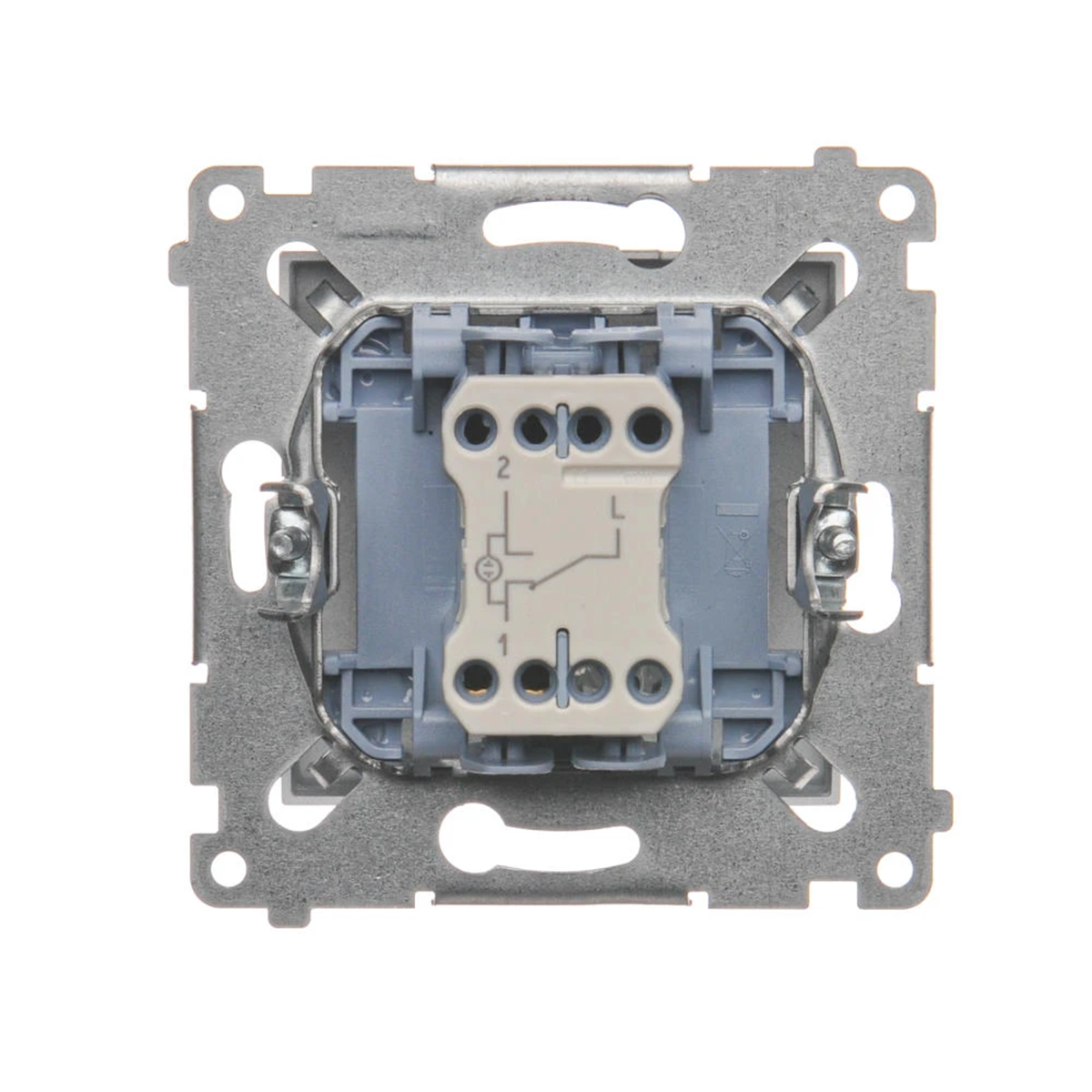

• Quick connectors.
• Colour matt silver, metallized.< /li>
• Rated current of fluorescent lamps 10AX.
• Rated voltage 230V.
• Mounting recessed.
• Dimensions: 75 x 75 mm (height x width).
• Made of PC.
• Rocker switch.
• Toggle switch.
• To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors.
