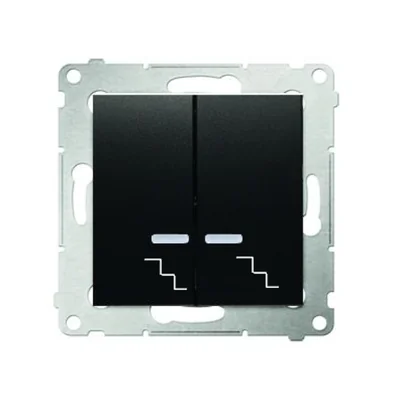

Stair switch with LED backlight (module) 10A 250V quick connectors anthracite (metallic) DW6L.01/48

Name: Stair switch with LED backlight (module) 10A 250V quick connectors anthracite (metallic)
Brand: KONTAKT-SIMON
SKU: MMS118KONT
Price: 10.70 PLN

local index:

MMS118KONT

Catalog No:

DW6L.01/48

EAN code:

5902787822491

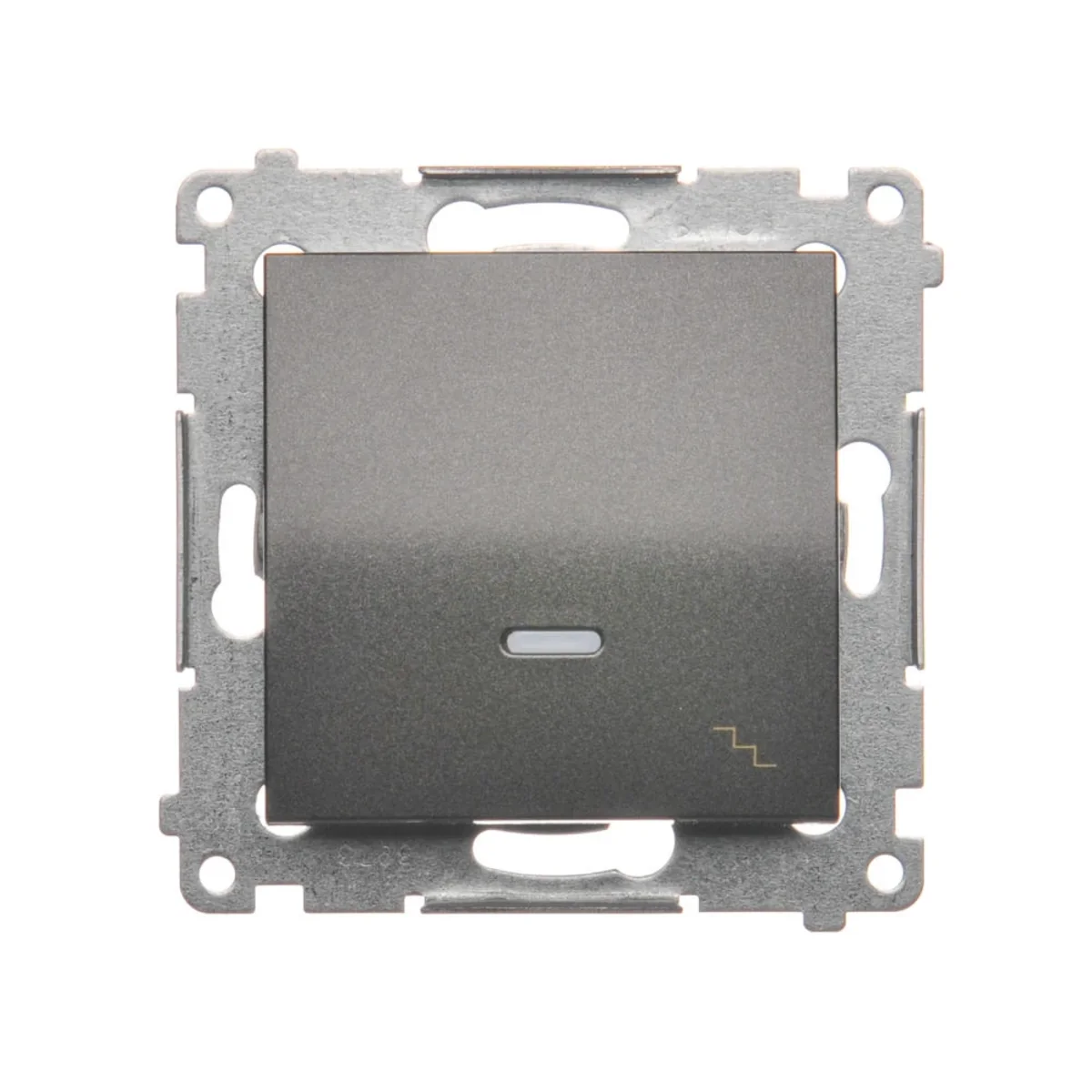

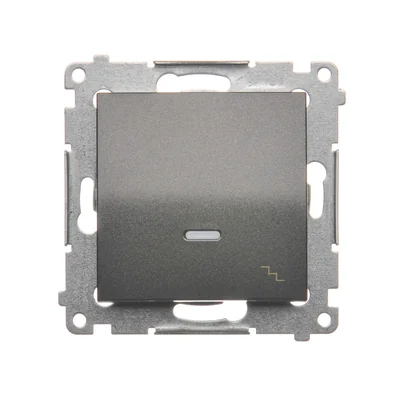

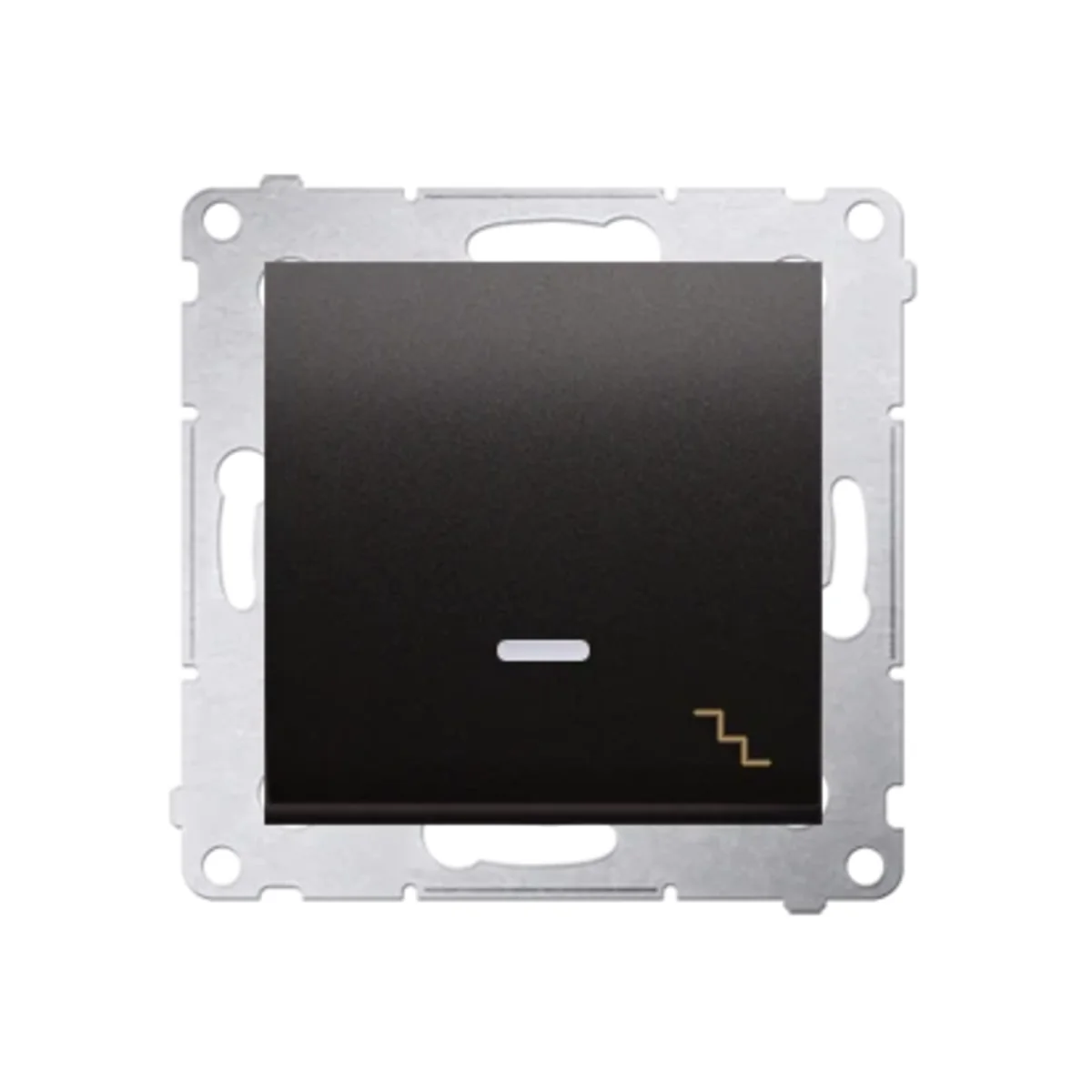

Stair switch with LED backlight (module) 10A 250V quick connectors anthracite (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

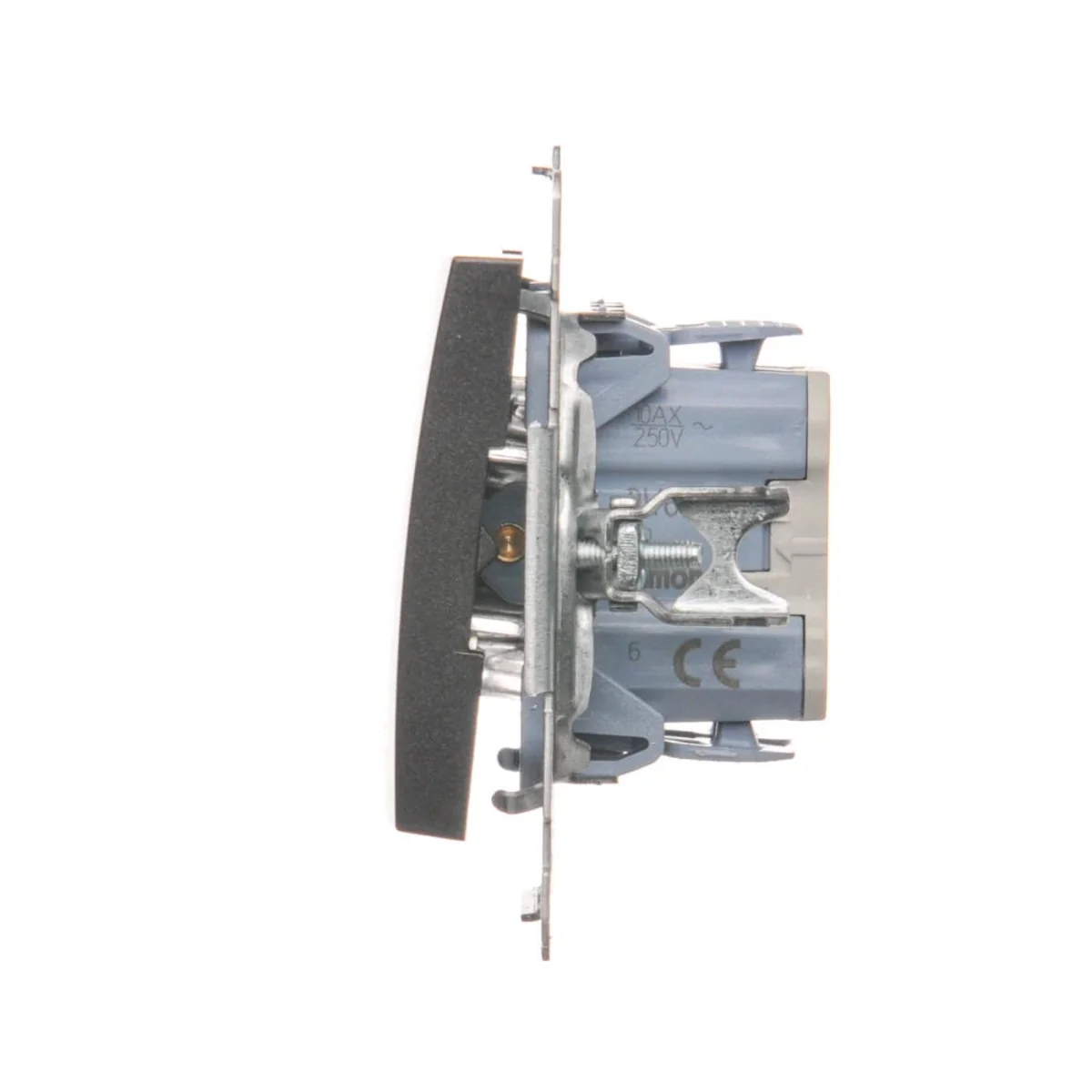

Depth [mm]: 41

Number of keys: 1

See full description

Price:

10,70 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW6L.01/48.

FEATURES

With built-in blue backlight (LED replaceable).
"stairs" symbol on the key.

Module without a frame

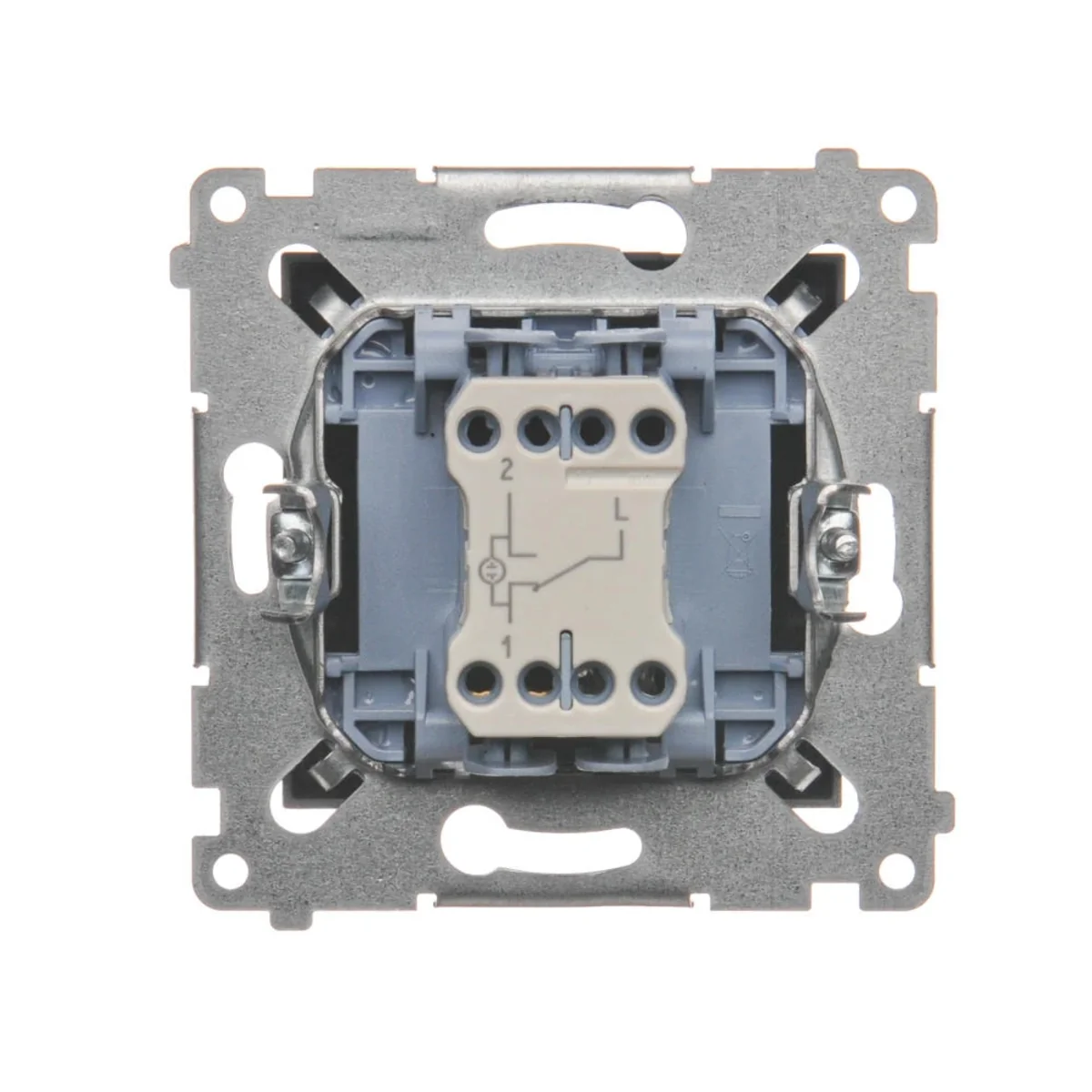

Quick connectors.
Colour anthracite, metallic.
Rated current of fluorescent lamps 10AX.
Rated voltage 230V.
Mounting flush mounting .
Dimensions: 75 x 75 mm (H x W).
Made of PC.
Rocker switch.
Bistable switch.
To obtain IP44 splash-proof class, use a frame gasket.

DESCRIPTION SERIES

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

Graphite
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Stairs
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallized anthracite
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Other technical data

Wiring system

Two-way switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Anthracite
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,057	0,057	0,659
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
