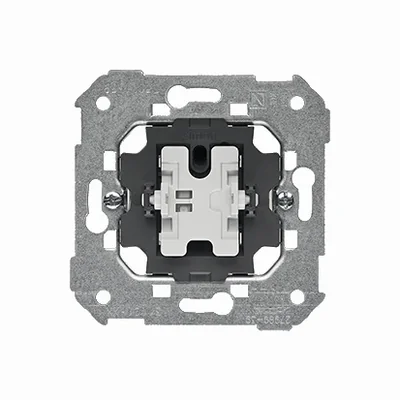

Stair switch with backlight 75204-39

Внутрішній артикул:
MPS005KONT
№ каталоговий:
75204-39
Код EAN:
8421053003602
Виробник: KONTAKT-SIMON
Depth [mm]: 32
Number of keys: 1
Shape: Square
Ціна:
11,71 €
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 2 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

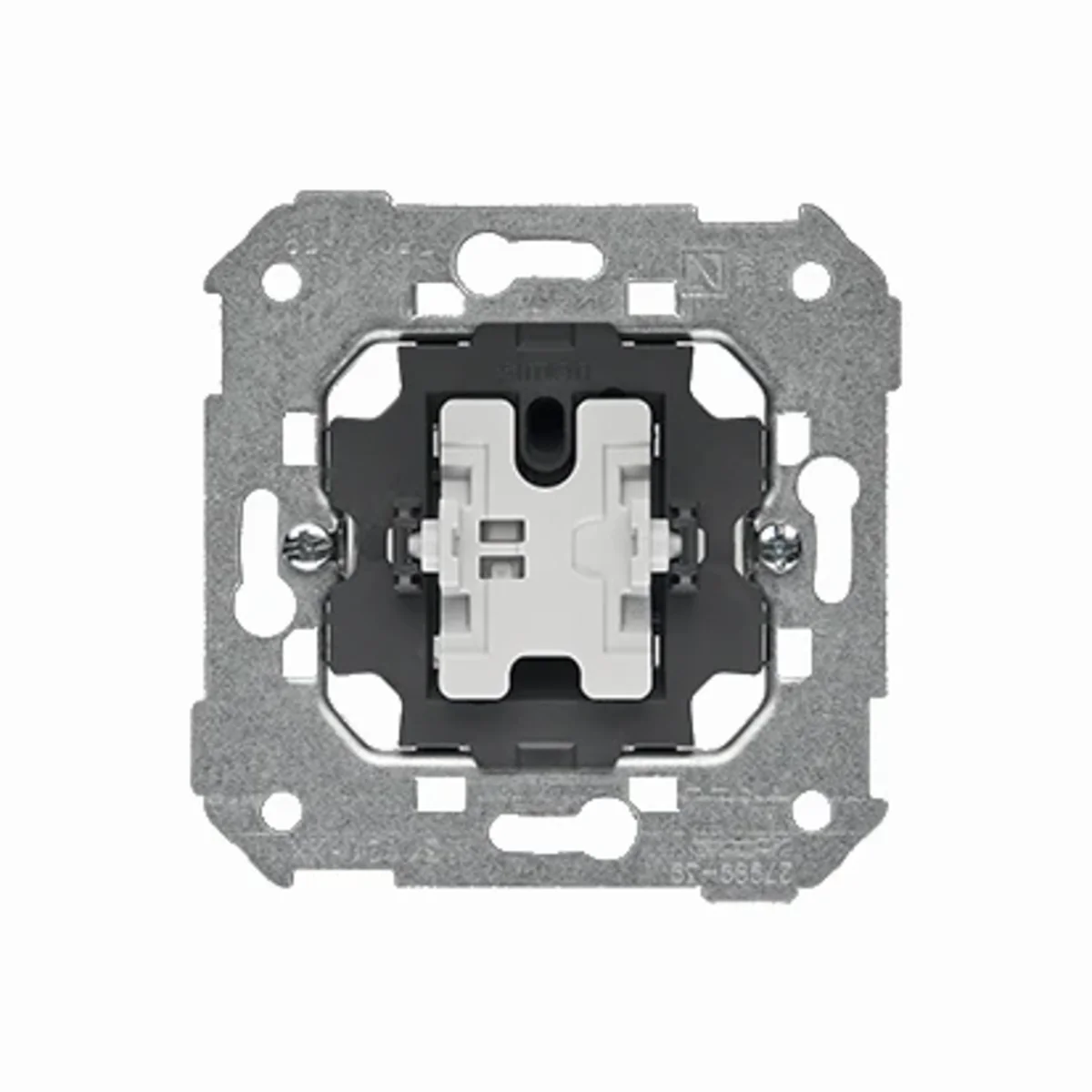

Stair switch mechanism from the Simon 82 series, from the manufacturer Contact Simon. The product's catalog number is 75204-39.

  • To obtain the IP44 splash-proof class, use the frame gasket gasket.
  • Built-in backlight.
  • Quick connectors.
  • Bistable connector.

Технічні дані

  • Depth [mm]
    32
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Surface protection
    Natural
  • Mounting depth [mm]
    21
  • For the frame system
    Yes
  • Backlight color
    Red
  • Number of keys
    1
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    Simon 82
  • Width [mm]
    75
  • Height [mm]
    75
  • Backlight
    Yes
  • Terminal type
    Threadless
  • Backlight type
    Orientation Smoldering lamp
  • PKWIU
    27.33.11.0

Інші технічні дані

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Connection type
    Push-in clamp

Інформація про виробника

  • Виробник
    SIMON S.A.
  • Адреса
    08013 Barcelona Calle Diputación 390-392 Hiszpania
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Paczka Karton
Кількість 1 шт. 1 шт. 10 шт.
Вага (кг) 0,073 0,073 0,740
Ширина (м) 0,075 0,110 0,190
Довжина (м) 0,075 0,045 0,230
Глибина (м) 0,032 0,160 0,100
