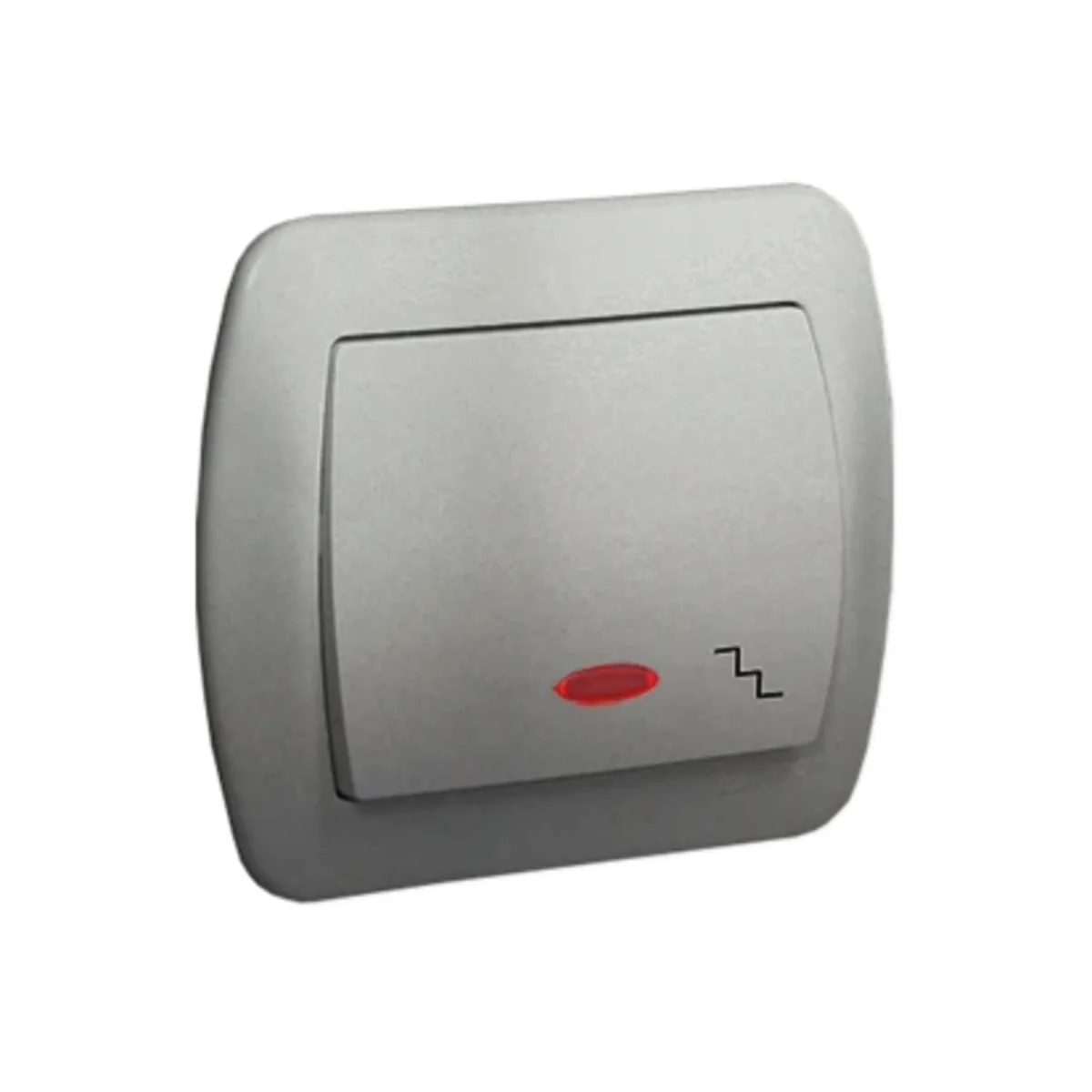

Stair switch with backlight 10A 250V screw terminals silver (metallic) AW6L/26
local index:
MMS044KONT
Catalog No:
AW6L/26
EAN code:
5902787597733
Price:
7,64 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Simon Akord series, from the manufacturer Contact Simon. Product catalog number is AW6L/26.
FEATURES
- With built-in backlight< /strong>, orientation, orange (smoldering lamp).
- "Stairs" symbol on the key.
- Complete product; with frame.
- Screw terminals.
- Color aluminium, metallised.
- Rated current of fluorescent lamps 10AX.
- Rated voltage 230V.
- Ingress protection IP20< /strong>.
- flushmount.
- Dimensions: 80.5 x 90 mm (height x width).
- Made of PC.
- Rocker switch.
- Toggle switch.
< h3>SERIES DESCRIPTION
The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish the Chord series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.
Technical data
-
Halogen freeYes
-
Number of keys1
-
ShapeRectangular
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
Width [mm]90
-
Height [mm]80.5
-
Surface finishmatte
-
BacklightYes
-
Terminal typeThreaded
-
Exact materialPC
-
Backlight colorOrange
-
Depth [mm]37.5
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]10
-
FamilySIMON CHORD
-
SymbolStairs
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorAluminum metallised
-
Mounting depth [mm]24.5
-
For the frame systemNO
-
Backlight typeOrientation Smoldering lamp
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
MaterialPlastic
-
Surface protectionLacquered
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps10 AX
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Nominal voltage250 V
-
Connection typeScrewed terminal
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,058 | 0,058 | 0,665 |
| Width (m) | 0,080 | 0,110 | 0,190 |
| Length (m) | 0,090 | 0,043 | 0,230 |
| Depth (m) | 0,038 | 0,165 | 0,100 |
