Stair switch (module) 230V, metallic satin BMW6A.01/29

local index:
MMS066KONT
Catalog No:
BMW6A.01/29
EAN code:
5902787543051
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Price:
7,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW6A.01/29.



FEATURES

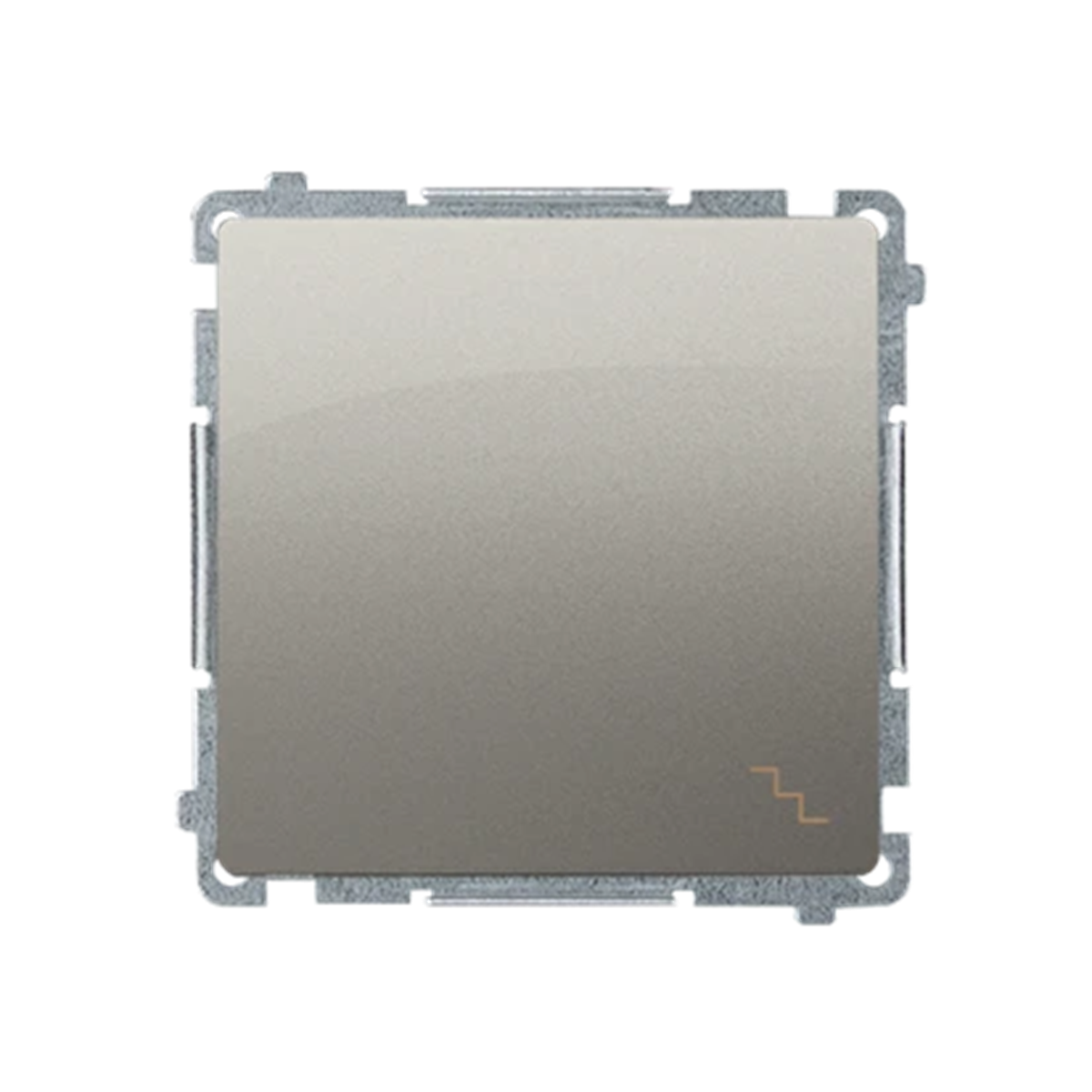

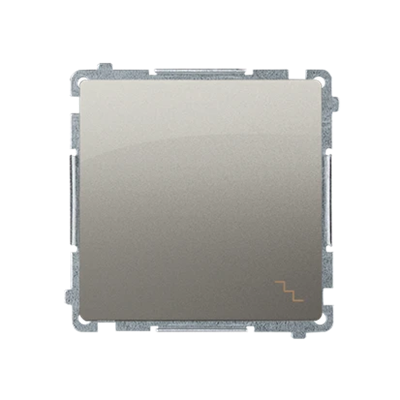

  • Symbol " ;stairs" on the key.

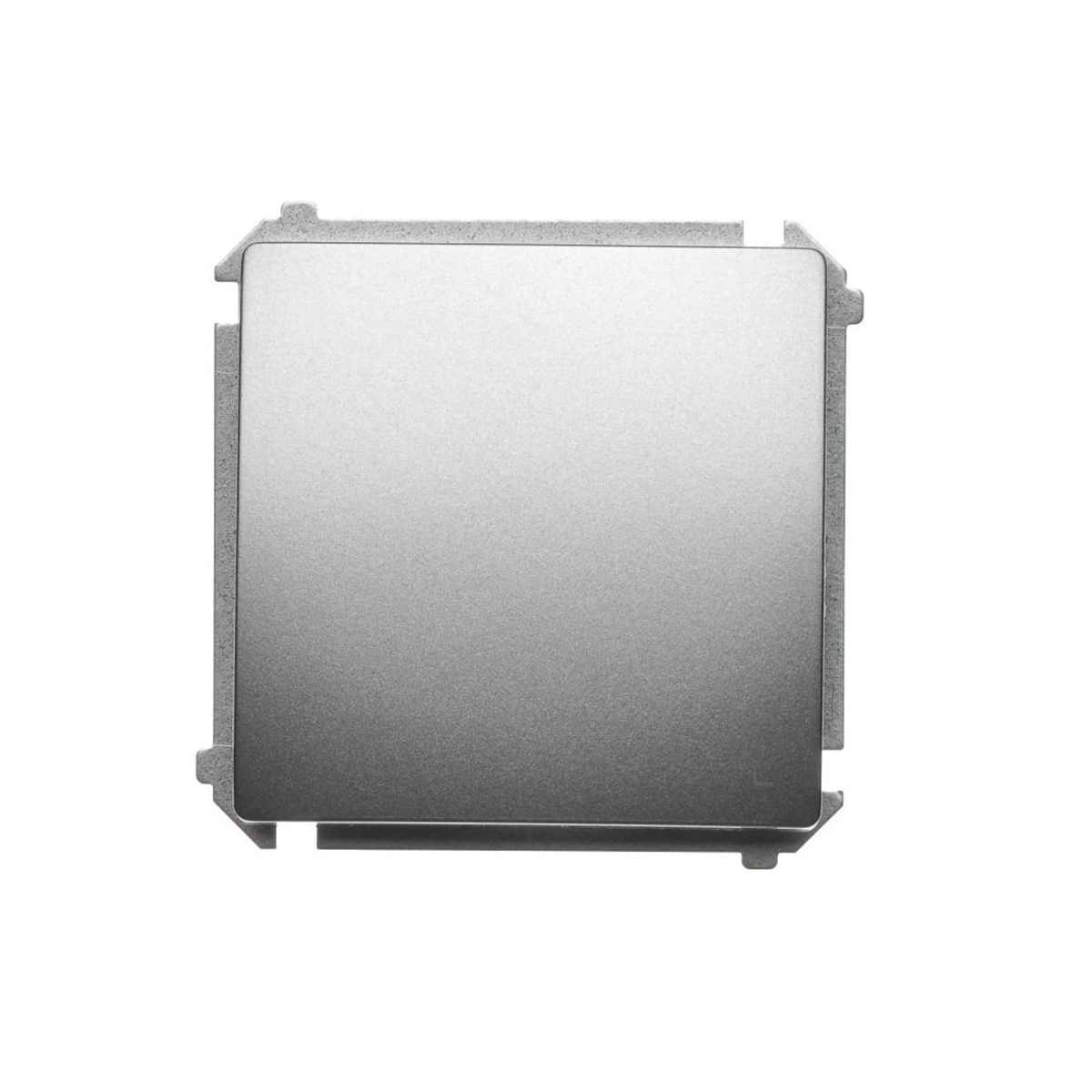

  • Module without frame.

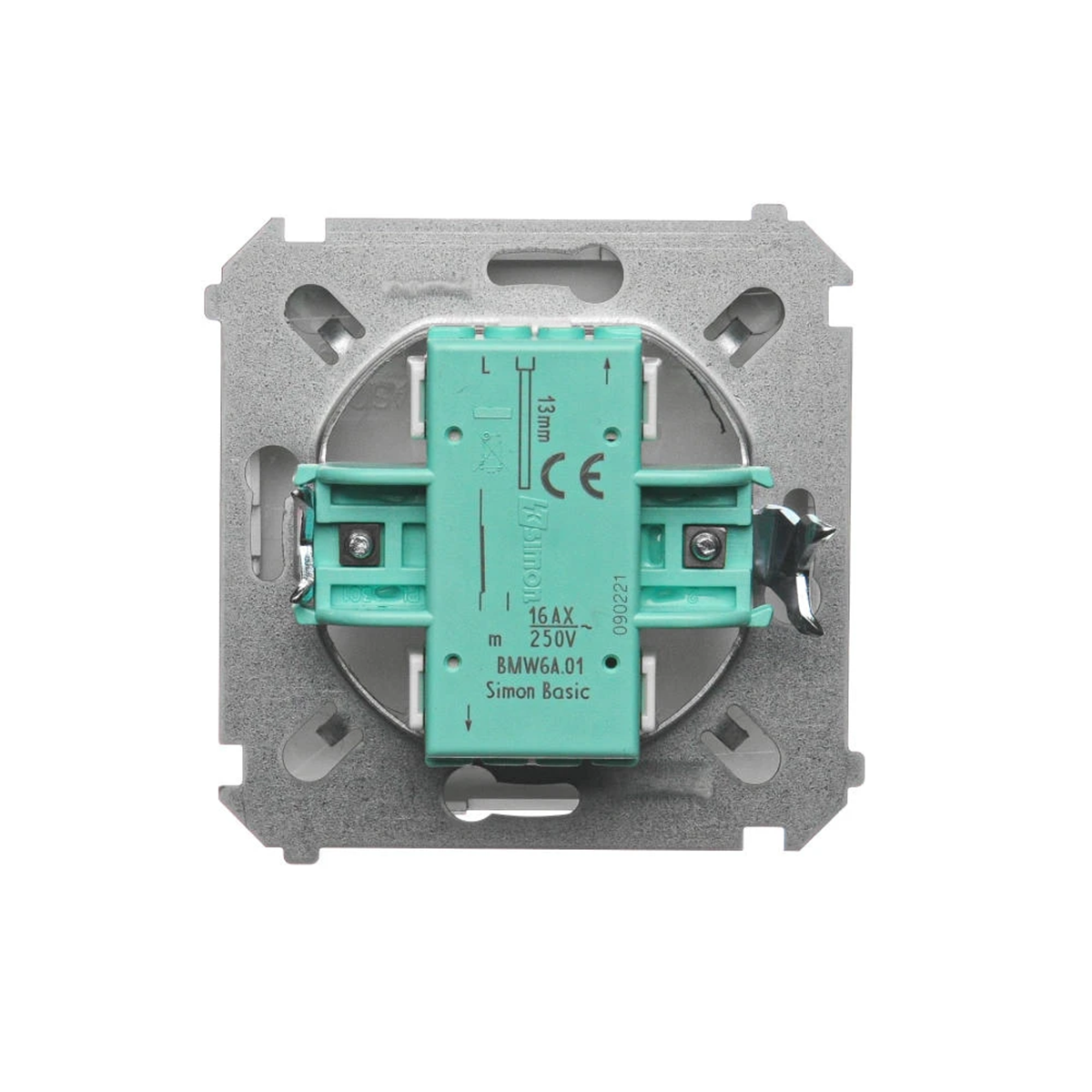

  • Screw terminals.
  • < li>Color satin, metallic.
  • Rated current of fluorescent lamps16AX.
  • Rated voltage 230V< /strong>.
  • flush mounting.
  • Dimensions: 75 x 75 mm (height x width).
  • Made  ;z PC.

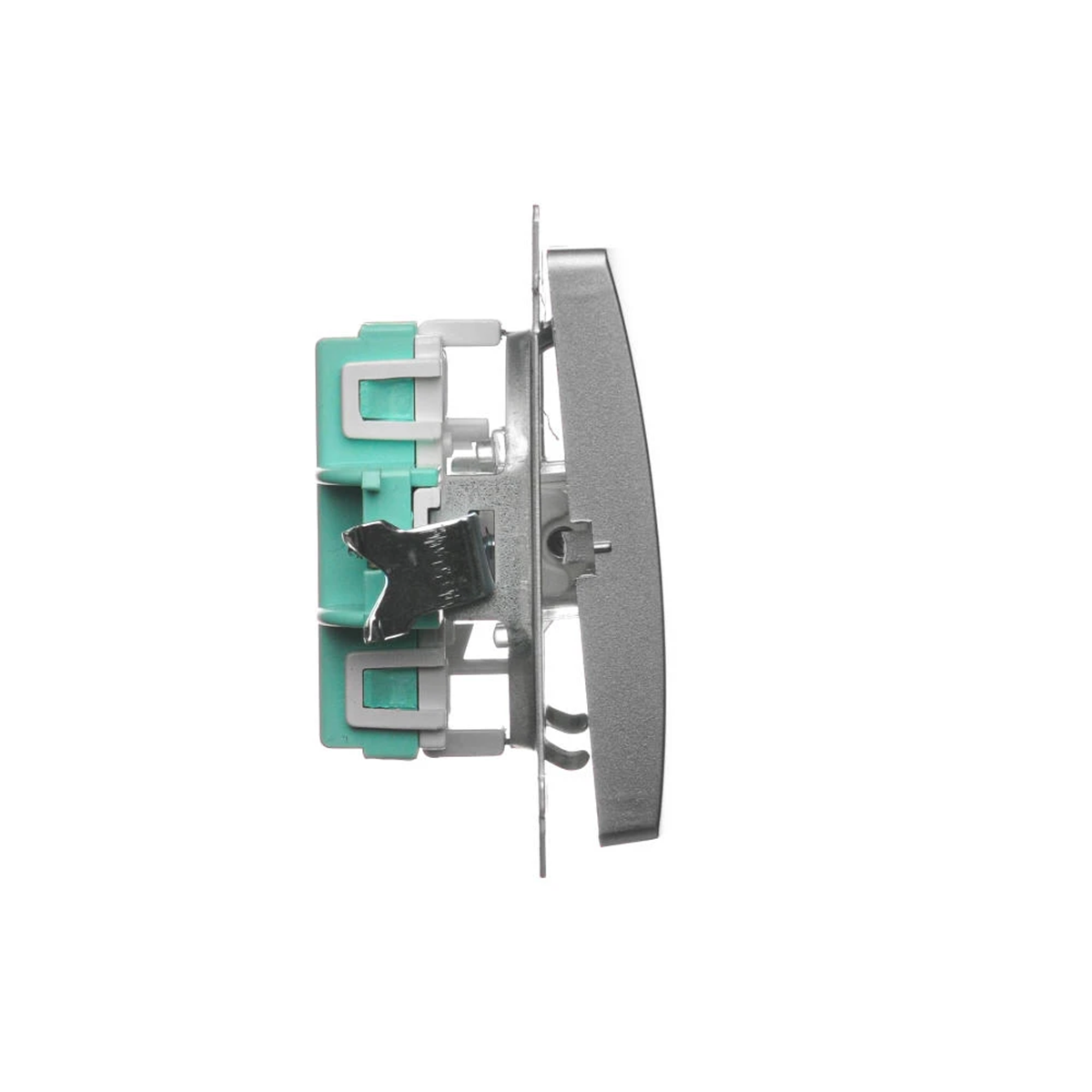

  • Rocker switch.
  • Bistable switch.
  • To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/ ...; BMRC2B/... or IP44 frame STANDARD: BMR1B/...; BMR2B/...; BMR3B/...



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic that will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    24
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    16 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,077 0,077 0,863
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
