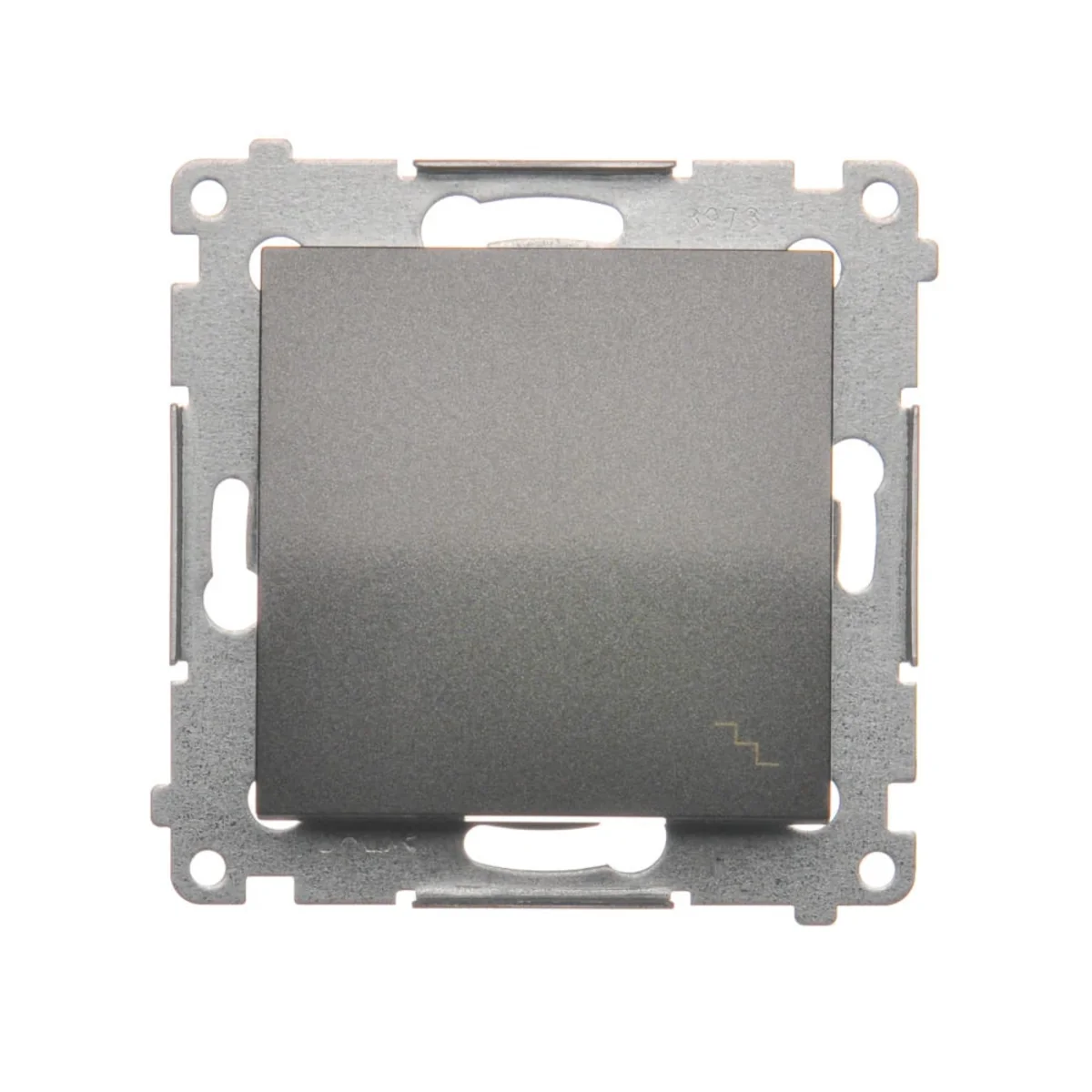

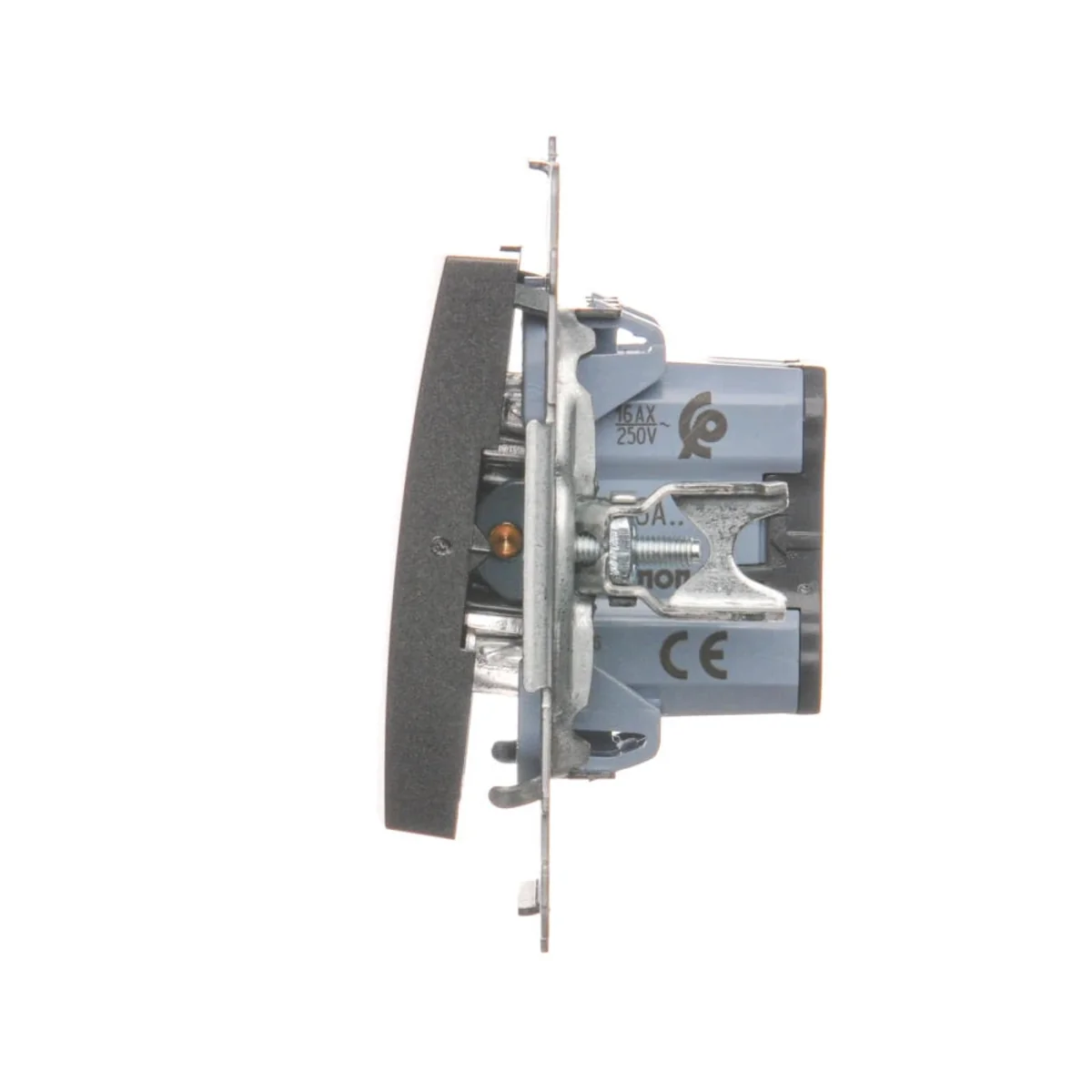

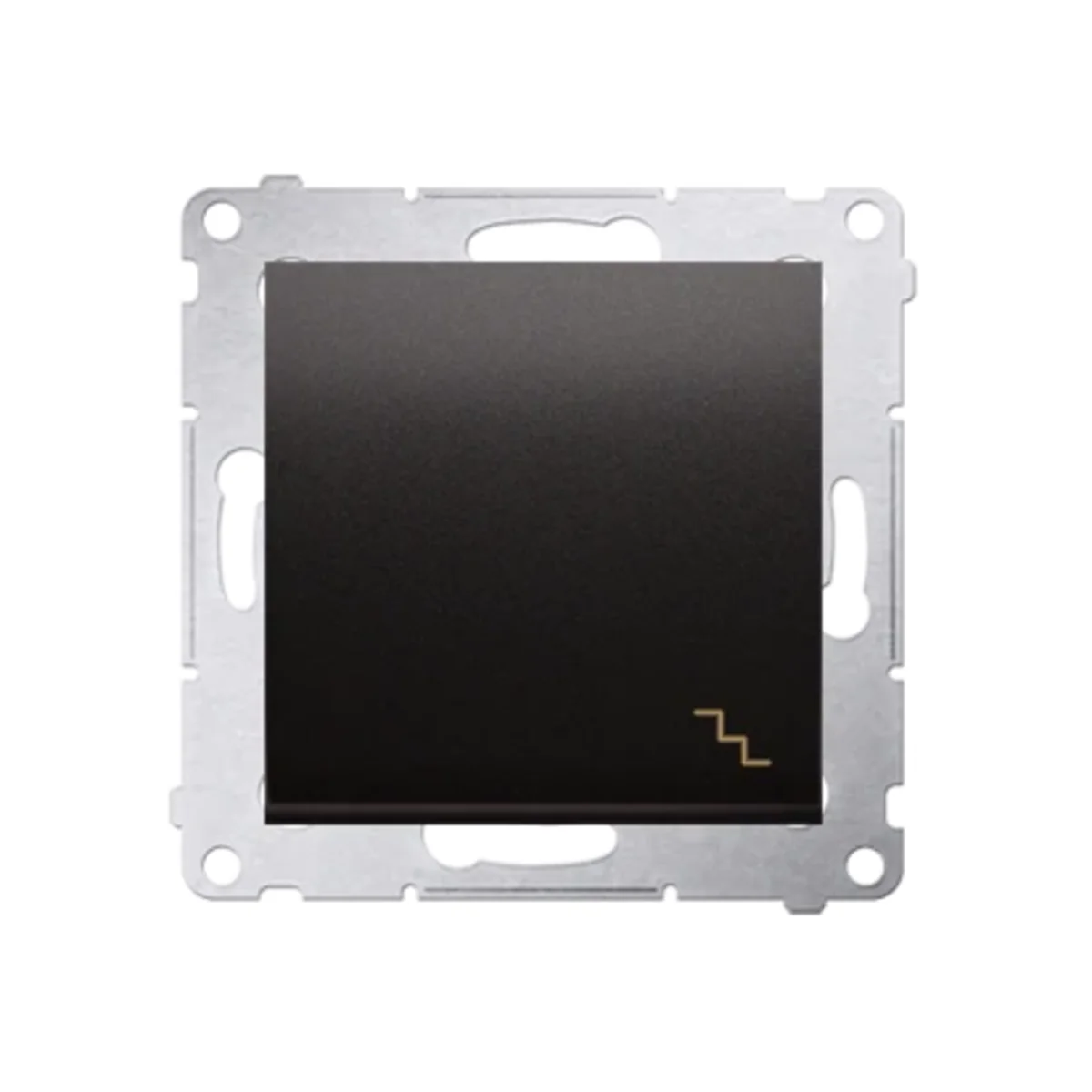

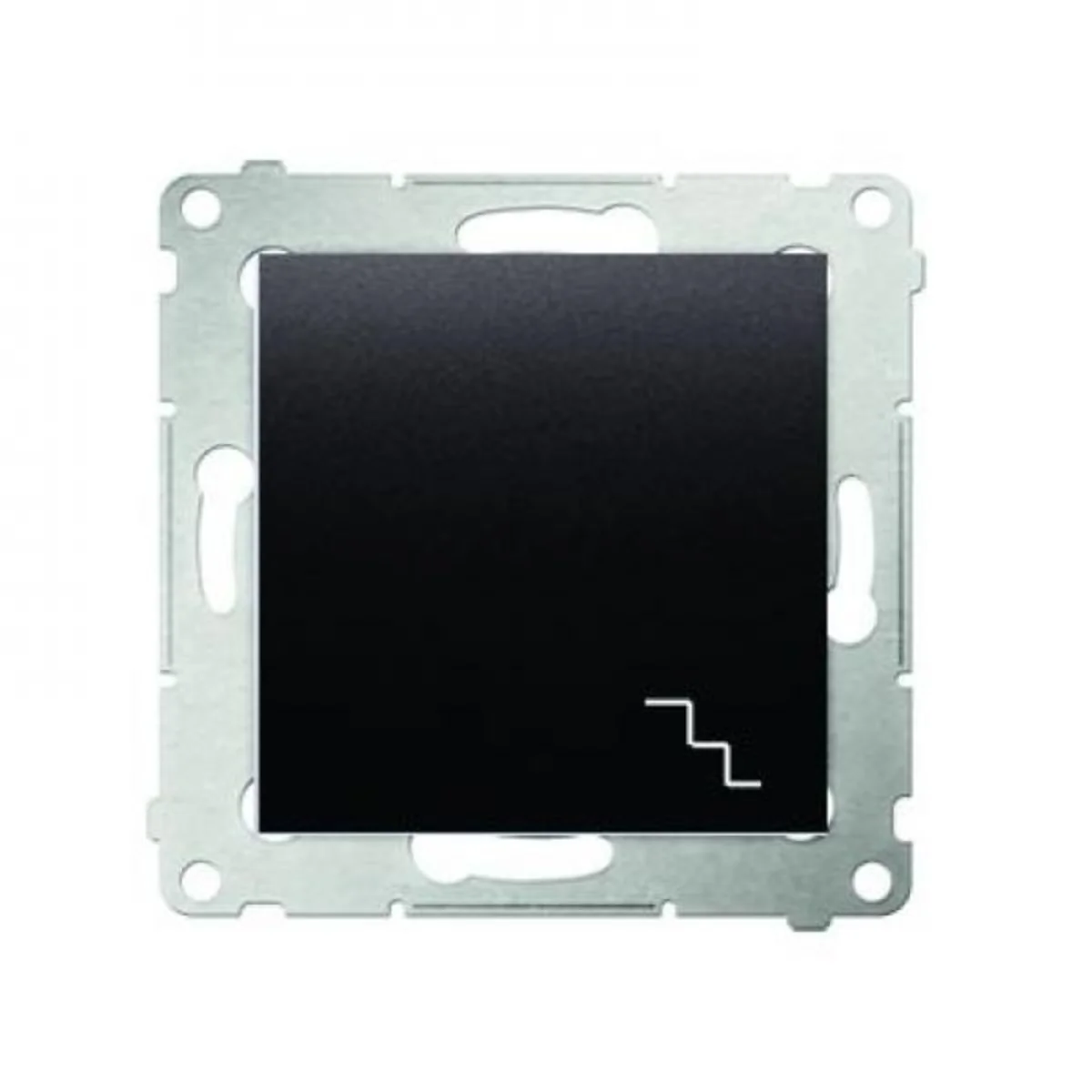

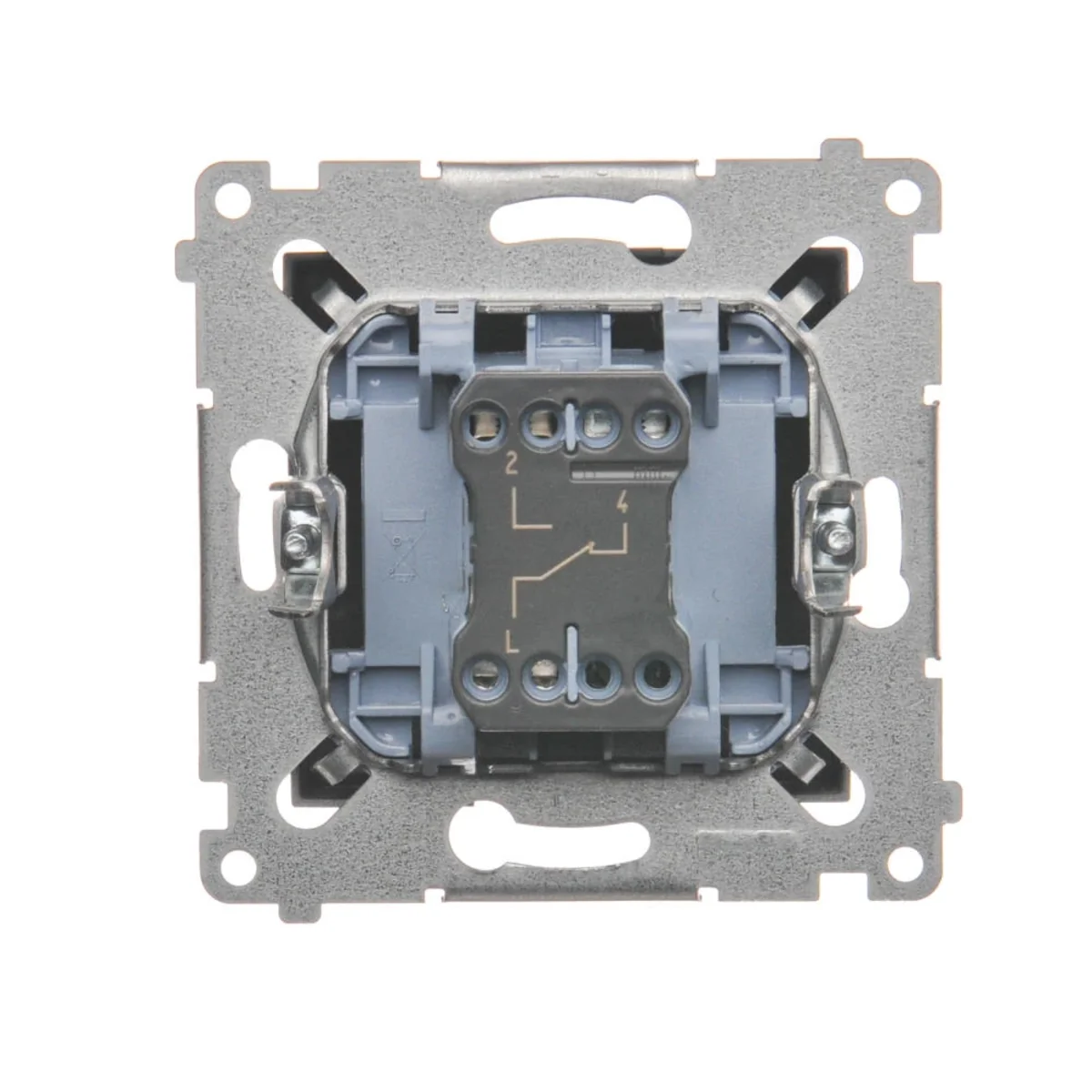

Stair switch (module) 16A 250V screw terminals anthracite (metallic) DW6A.01/48
local index:
MMS106KONT
Catalog No:
DW6A.01/48
EAN code:
5902787822545
Price:
8,60 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product part number is DW6A.01/48.
FEATURES
- Symbol " ;stairs" on the key.
- Module without frame.
- Screw terminals. < li>Color anthracite, metallic.
- Rated current for fluorescent lamps16AX.
- Rated voltage 230V< /strong>.
- flush mounting.
- Dimensions: 75 x 75 mm (height x width).
- Made of PC.
- Rocker switch.
- Bistable switch.
- To obtain IP44 splash-proof class, use a frame gasket. < /ul>
SERIES DESCRIPTION
SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, ;different with a noble form and rich colors.
Technical data
-
Halogen freeYes
-
Number of keys1
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP20
-
Width [mm]75
-
Height [mm]75
-
Surface finishmatte
-
BacklightNO
-
Terminal typeThreaded
-
Exact materialPC
-
Depth [mm]41
-
ColorGraphite
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]16
-
FamilySimon 54
-
SymbolStairs
-
TypeFlush-mounted
-
Surface protectionvarnishing
-
Accurate colorMetallized anthracite
-
Mounting depth [mm]28
-
For the frame systemYes
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface protectionLacquered
-
ColourAnthracite
-
Nominal voltage250 V
-
Connection typeScrewed terminal
-
Method of operationRocker/button
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Suitable for degree of protection (IP)IP20
-
Switching current for fluorescent lamps16 AX
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,063 | 0,063 | 0,722 |
| Width (m) | 0,075 | 0,110 | 0,190 |
| Length (m) | 0,075 | 0,045 | 0,230 |
| Depth (m) | 0,041 | 0,160 | 0,100 |
