Stair switch (module) 10A 250V quick connectors white DW6.01/11

Name: Stair switch (module) 10A 250V quick connectors white
Brand: KONTAKT-SIMON
SKU: MMS140KONT
Price: 6.84 PLN
Availability: InStock

Indice locale:

MMS140KONT

Numero di catalogo:

DW6.01/11

Codice EAN:

5902787822408

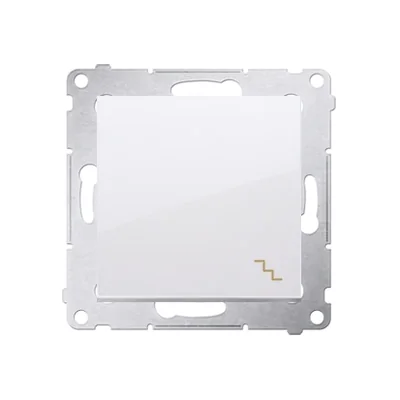

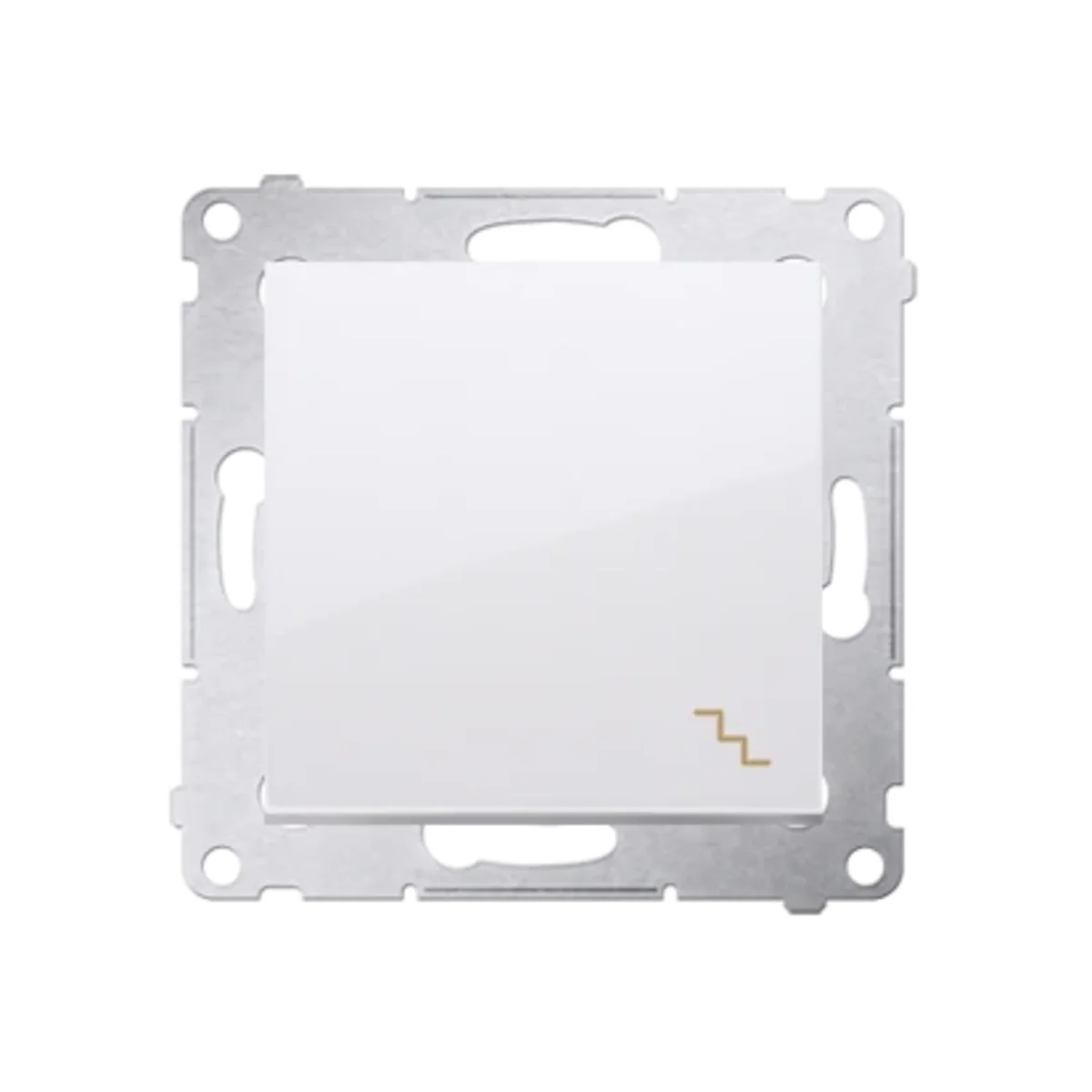

Stair switch (module) 10A 250V quick connectors white

Clicca sulla foto per ingrandire

Produttore: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Vedi la descrizione completa

Prezzo:

6,84 €

gross / pezzi

(inclusa IVA 23%)

Accessibile 163 pezzi

Quantità pezzi

(multiplo:

)

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Stair switch from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DW6.01/11.

FEATURES

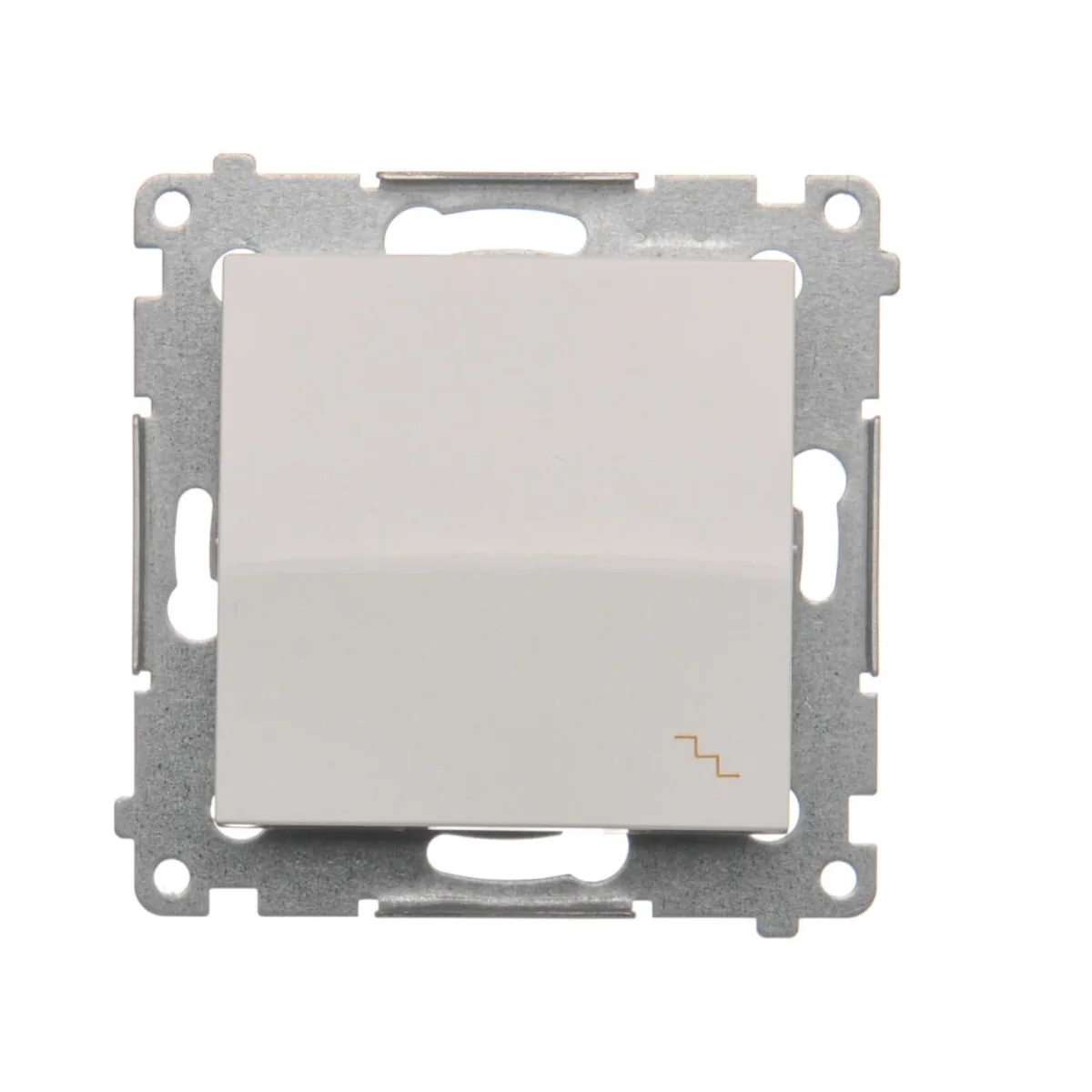

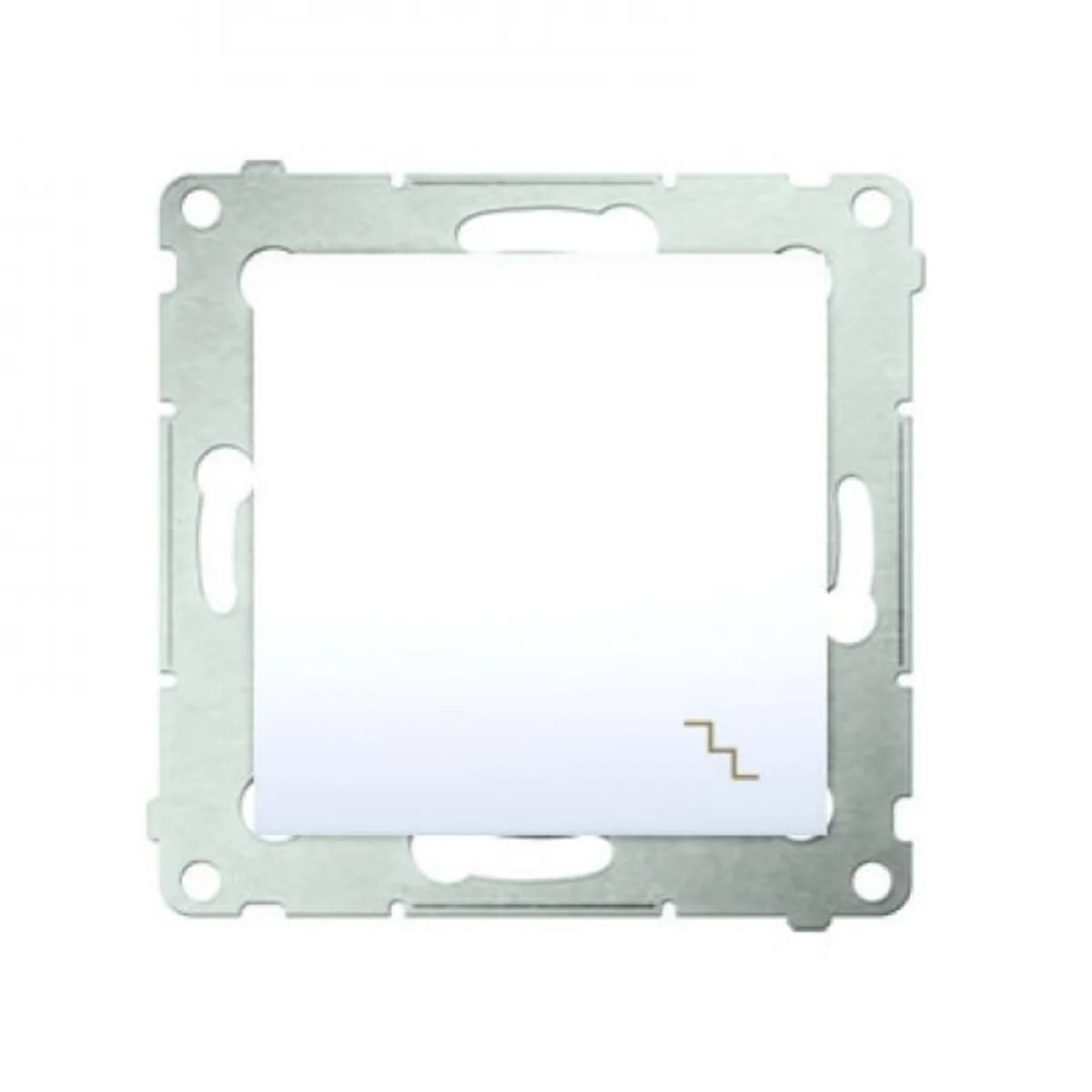

Symbol " ;stairs" on the key.
Module without frame.

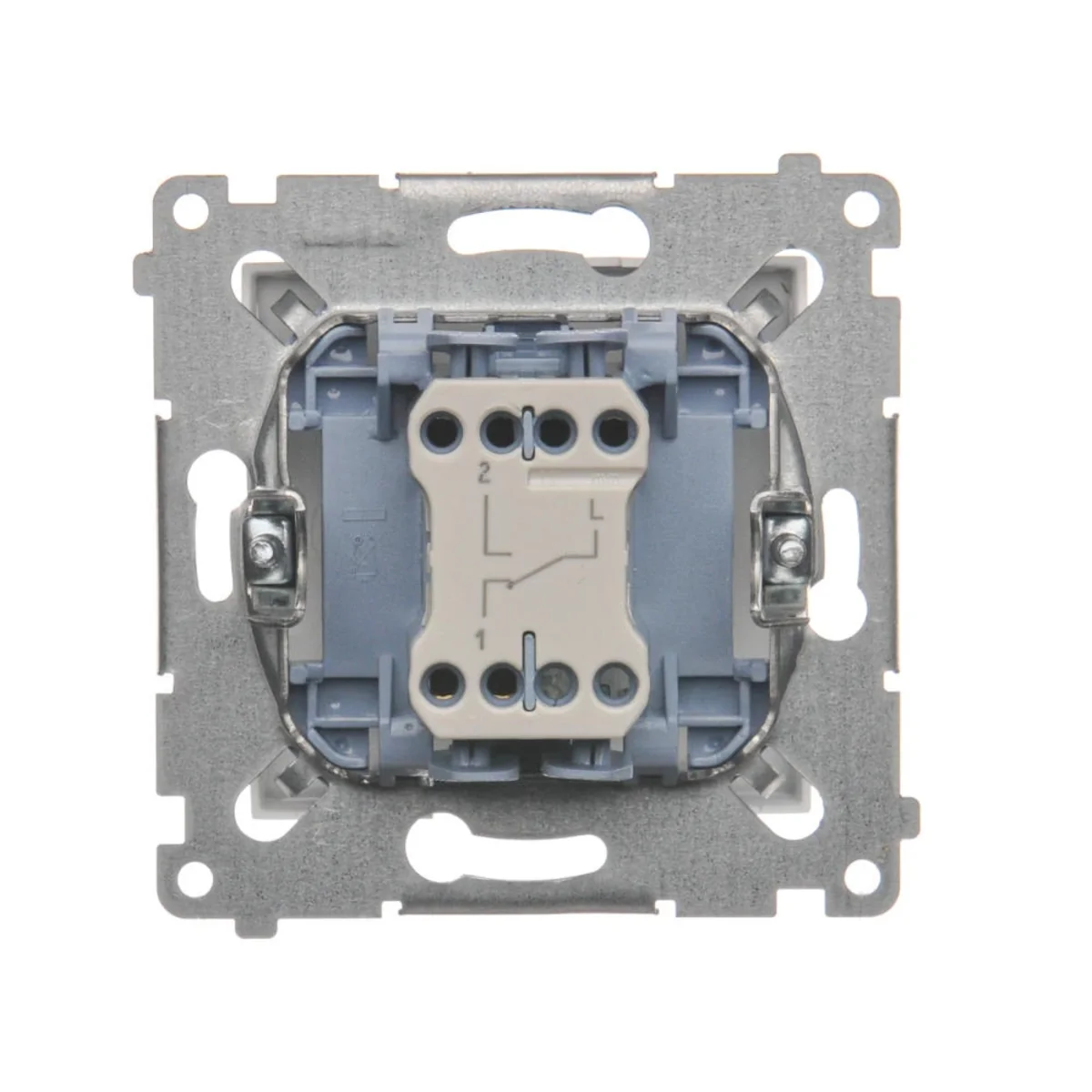

Quick connectors.
Color white.
Rated current 10AX.
Rated voltage 230V .
flush mounting.
Dimensions: 75 x 75 mm (height x width).
Made of PC.
Rocker switch.
Bistable switch.
Use frame gasket to obtain IP44 splash-proof class.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by noble form and rich colors.

Dati tecnici

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

stairs
Level of security

IP20
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

28
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Symbol

Stairs
Type

Flush-mounted
Surface protection

Natural
Backlight

NO
Terminal type

Threadless
Exact material

PC

Altri dati tecnici

Wiring system

Two-way switch
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Dettagli del produttore

Produttore

Kontakt-Simon S.A.
Indirizzo

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Imballaggio sfuso

Una specie di pacchetto	Paczka	Karton	Paczka	Karton
Quantità	1 pezzi	10 pezzi	1 pezzi	10 pezzi
Peso (kg)	0,058	0,669	0,058	0,669
Larghezza (m)	0,110	0,190	0,110	0,190
Lunghezza (m)	0,045	0,230	0,045	0,230
Profondità (m)	0,160	0,100	0,160	0,100
