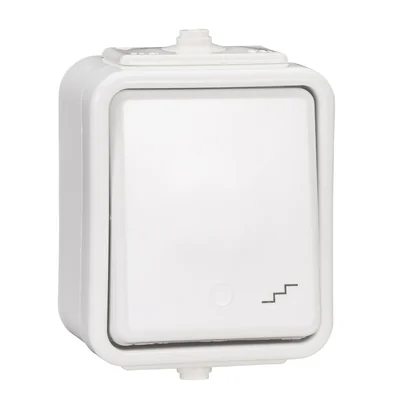

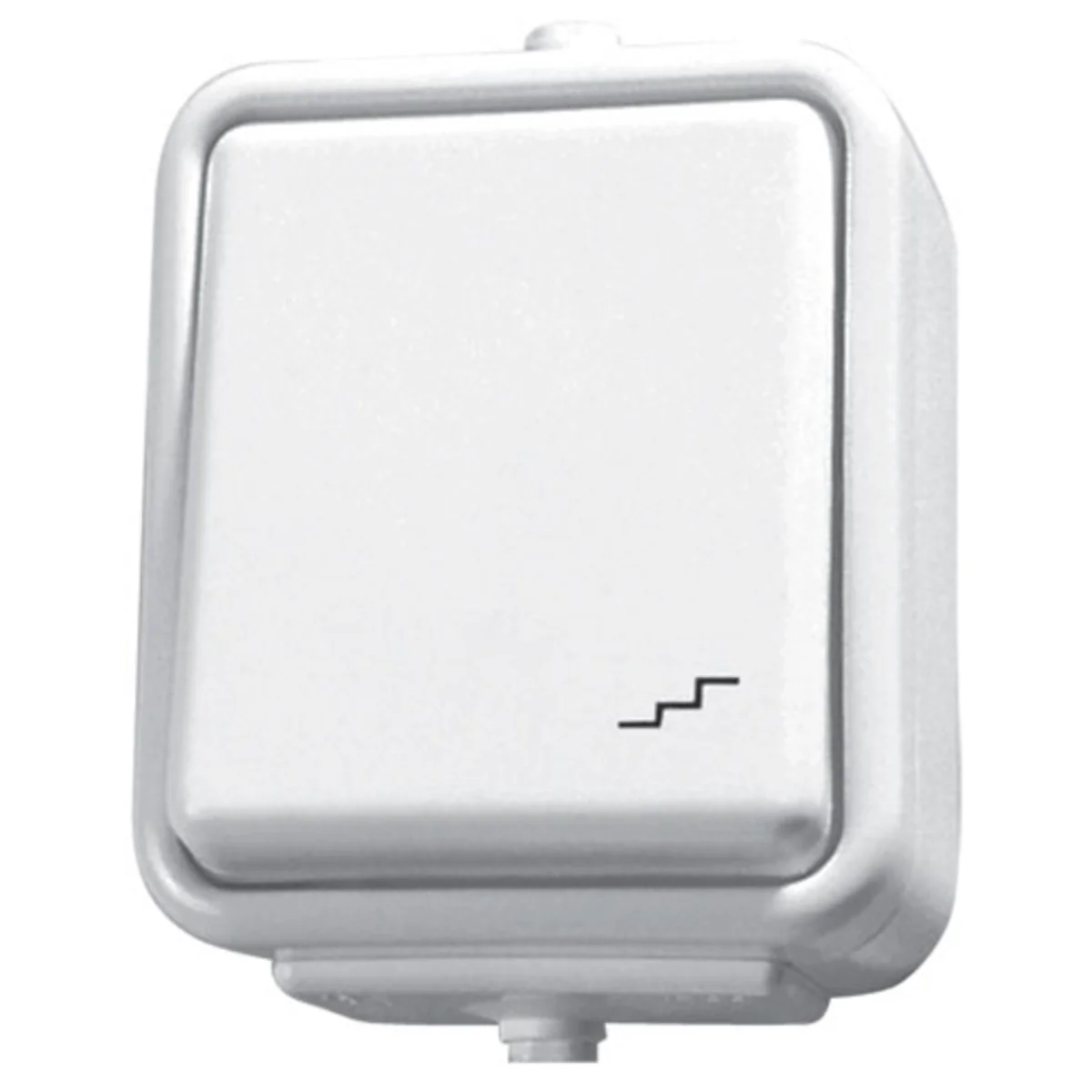

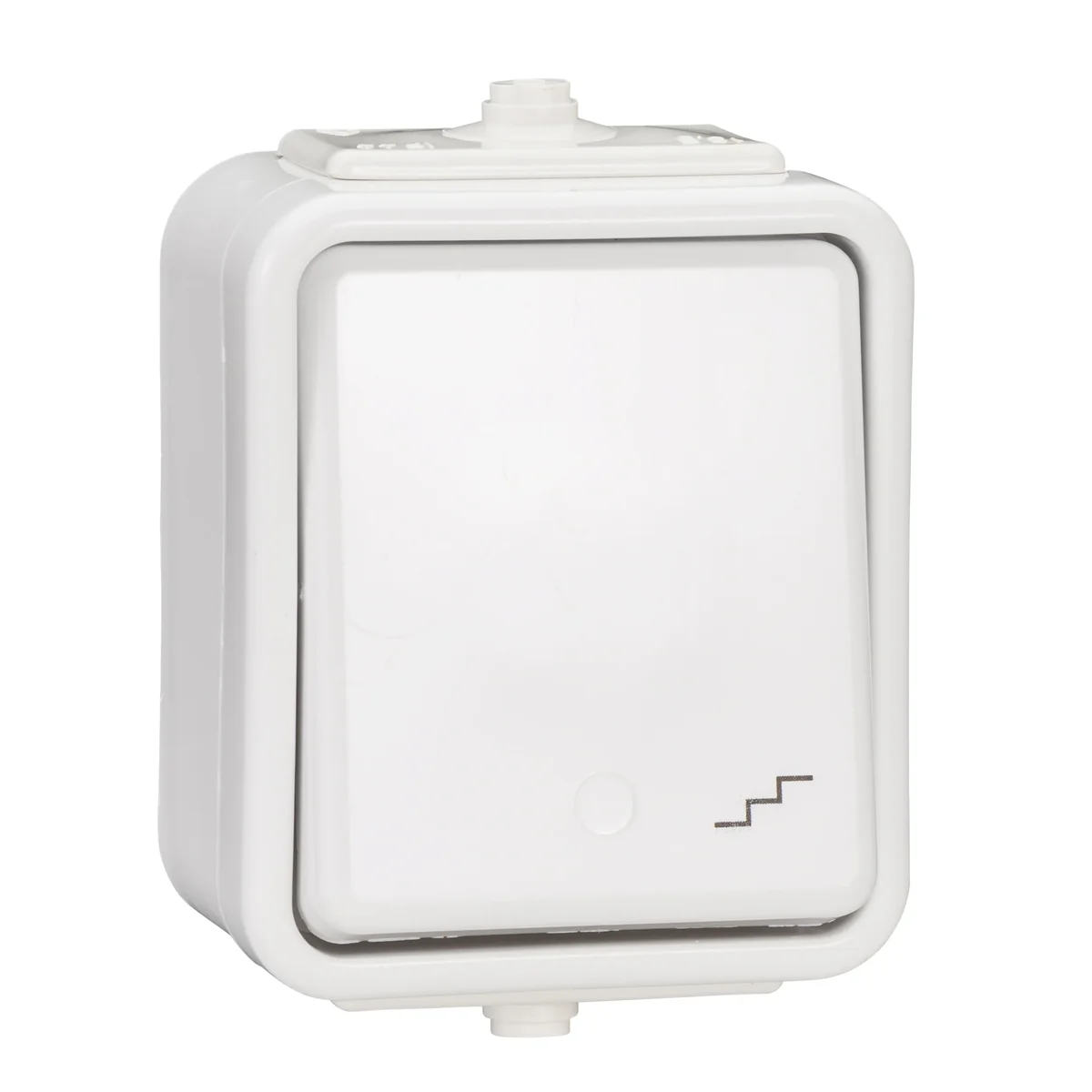

Stair switch, IP44, white WNT600C01
local index:
MNS001SCHN
Catalog No:
WNT600C01
EAN code:
5904093006404
Price:
4,40 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Stair switchof theCedar series, from Schneider Electric. The product catalog number is WNT600C01 .
- 1-pole 2-wire.
- Complete product.
SERIES DESCRIPTION
Surface-mounted Cedar series switches and sockets have a high degree of protection IP44 and are an ideal solution for rooms exposed to moisture. features of this unique series.
Technical data
-
Depth [mm]48
-
ColorWhite
-
MaterialPlastic
-
Rated voltage [V]230
-
Typestairs
-
Level of securityIP44
-
Width [mm]64
-
Height [mm]90
-
For the frame systemNO
-
Number of keys1
-
ShapeRectangular
-
InstallationSurface-mounted
-
Rated current [A]10
-
FamilyCEDAR
-
SymbolStairs
-
TypeSurface-mounted
-
BacklightNO
-
PKWIU27.33.11.0
Other technical data
-
Wiring systemTwo-way switch
-
Assembly arrangementBasic element with complete housing
-
Number of rockers1
-
With mounting plateNo
-
ColourWhite
-
Label space/information surfaceYes
-
Suitable for degree of protection (IP)IP44
-
Rated current10 A
-
Washing machine switchNo
-
Device height90 mm
-
Method of operationRocker/button
-
Push button switchNo
-
Mounting methodSurface mounted
-
MaterialPlastic
-
RAL-number (similar)9003
-
IlluminationNo
-
Nominal voltage250 V
-
Feedback-signal contactNo
-
Device width64 mm
-
Device depth48 mm
