Splashproof cross connector IP54 10A 250V screw terminals white AQW7/11

Name: Splashproof cross connector IP54 10A 250V screw terminals white
Brand: KONTAKT-SIMON
SKU: MNK001KONT
Price: 6.58 PLN
Availability: InStock

local index:

MNK001KONT

Catalog No:

AQW7/11

EAN code:

5902787574413

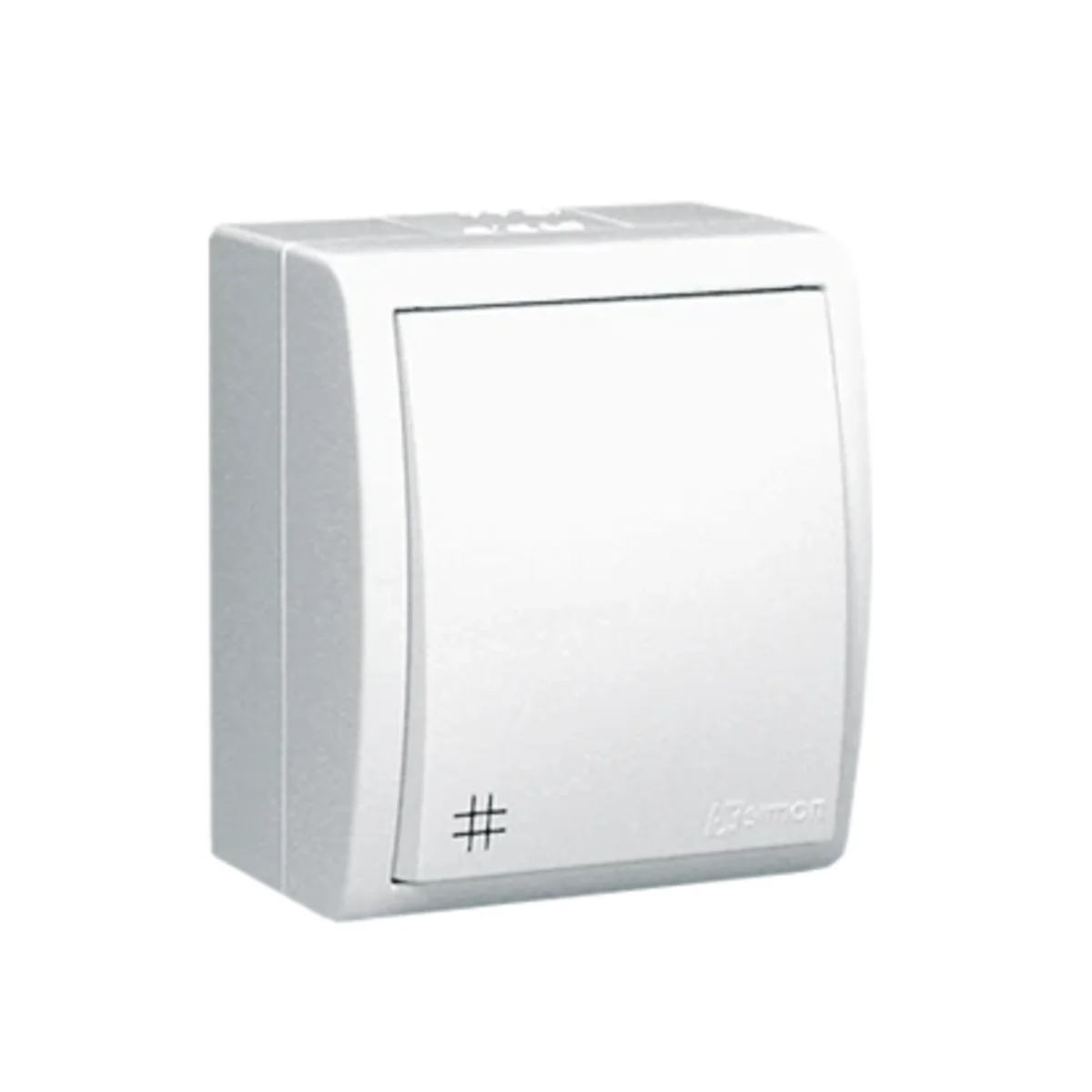

Splashproof cross connector IP54 10A 250V screw terminals white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 48

Number of keys: 1

See full description

Price:

6,58 €

gross / pcs.

(including VAT 23%)

Accessible 45 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Hermetic cross connector from the Simon Aquarius series. The product part number is AQW7/11.

FEATURES

Complete product.
Rocker switch.
Toggle switch.
Screw mounting (e.g. to a box).

SERIES DESCRIPTION

Simon Aquarius is a series of surface-mounted, splash-proof electrical installation accessories intended for use in unfavorable conditions. The hermetic cross connector is characterized by features this unique series.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Rectangular
Fixing

Screws
Rated voltage [V]

230
Type

Cross
Level of security

IP54
Type

Surface-mounted
Surface protection

Natural
Backlight

NO
For the frame system

NO
PKWIU

27.33.11.0

Depth [mm]

48
Color

White
Material

Plastic
Installation

Surface-mounted
Rated current [A]

10
Family

SIMON AQUARIUS
Width [mm]

60
Height [mm]

70
Surface finish

Shiny
Terminal type

Threaded
Exact material

ABS

Other technical data

Wiring system

Intermediate switch
Assembly arrangement

Basic element with complete housing
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Surface mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP54
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,086	0,086	0,948
Width (m)	0,070	0,110	0,190
Length (m)	0,060	0,053	0,230
Depth (m)	0,048	0,160	0,100
