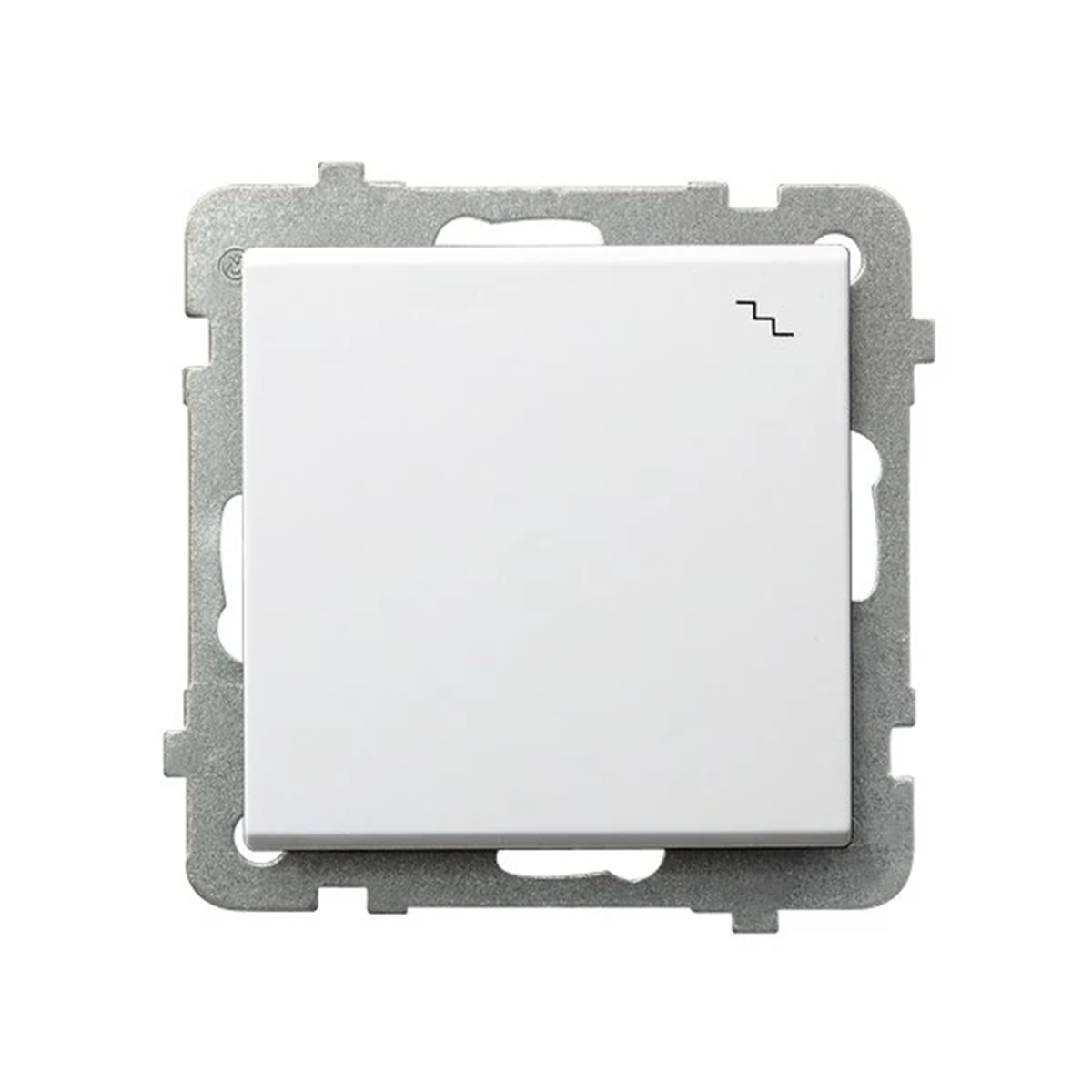

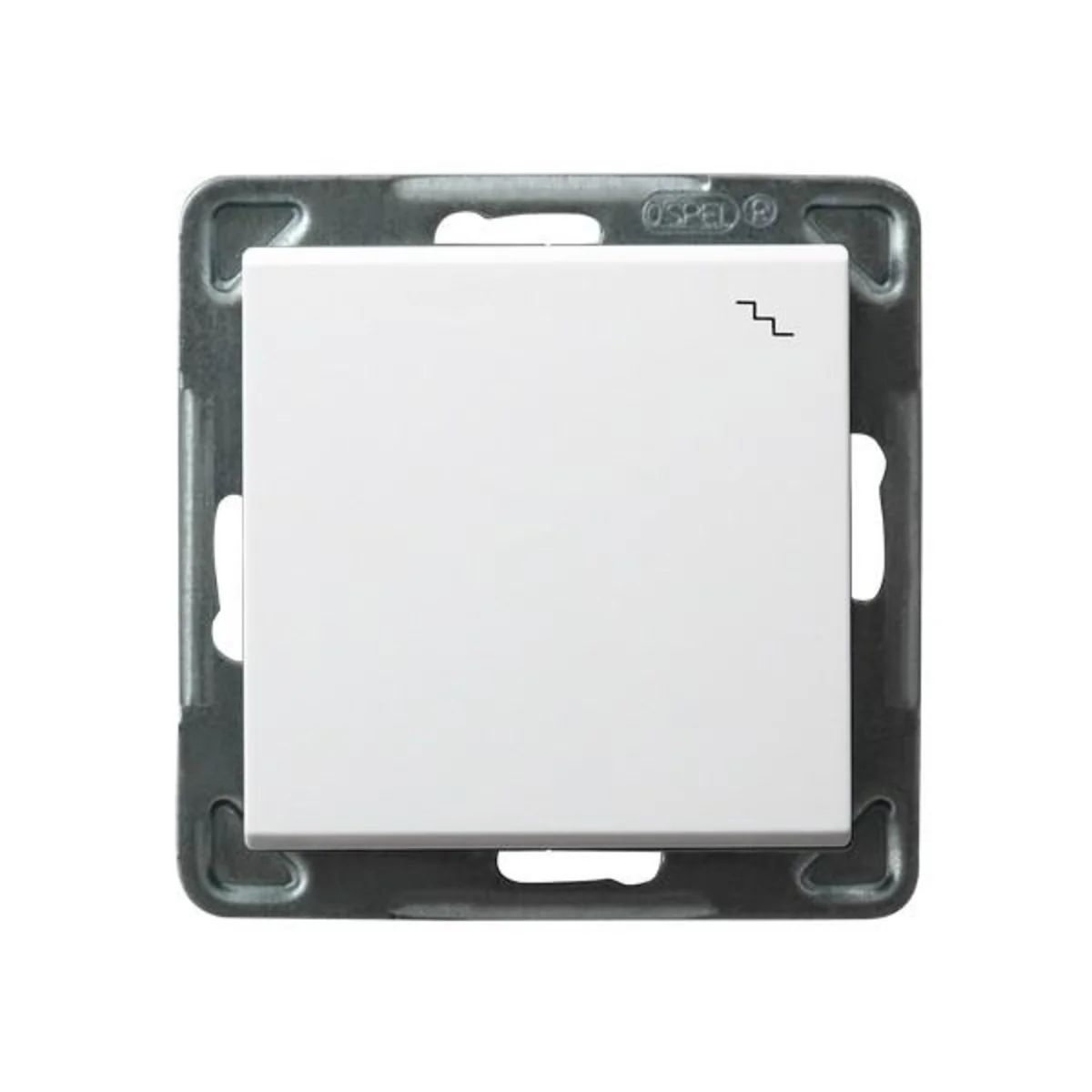

SONATA White stair switch, without a frame ŁP-3R/M/00

Indeks lokalny:
MMS068OSPE
Numer katalogowy:
ŁP-3R/M/00
Kod EAN:
5907577444082
Producent: OSPEL
Depth [mm]: 42
Number of keys: 1
Color: White
Cena:
29,18 zł
gross / szt.
(w tym VAT 23%)
Dostępne 16 szt.
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do zapytania ofertowego
Dodaj do schowka
Drukuj

Opis produktu

Stair switch from the Sonata series, from Ospel. The product catalog number is ŁP-3R/M/00.



FEATURES

  • Single.< /li>
  • "Stairs" symbol on the key.
  • Borderless module.
  • Terminals threadless.
  • Color white.
  • Rated current 16AX.
  • Voltage rated 230V.
  • flush mounting.
  • Protection rating IP20.
  • < li>Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

Collection Sonata  ;is an arrangement solution corresponding to the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Dane techniczne

  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA
  • Symbol
    Stairs
  • Type
    Flush-mounted
  • Surface protection
    Natural
  • Mounting depth [mm]
    25
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Width [mm]
    71
  • Height [mm]
    71
  • Backlight
    NO
  • Terminal type
    Threadless
  • Exact material
    Plastic Metal

Pozostałe dane techniczne

  • Wiring system
    Two-way switch
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Colour
    White
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    1
  • Type of fastening
    Mounting with claw and screw
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9003
  • Illumination
    No
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    42 mm
  • Min. depth of built-in installation box
    60 mm

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Pudełko
Ilość 10 szt.
Szerokość (m) 0,710
Długość (m) 0,710
Głębokość (m) 0,250
