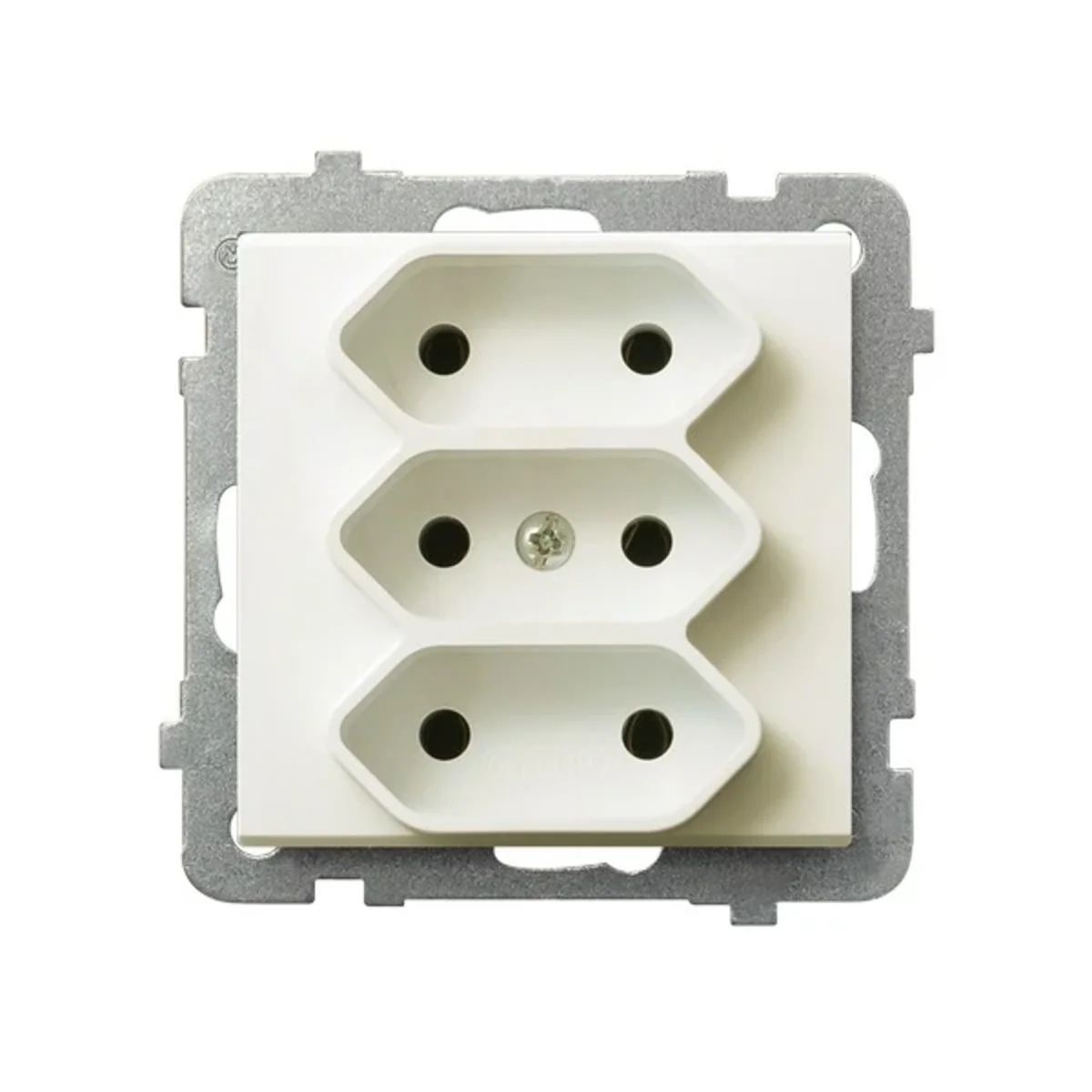

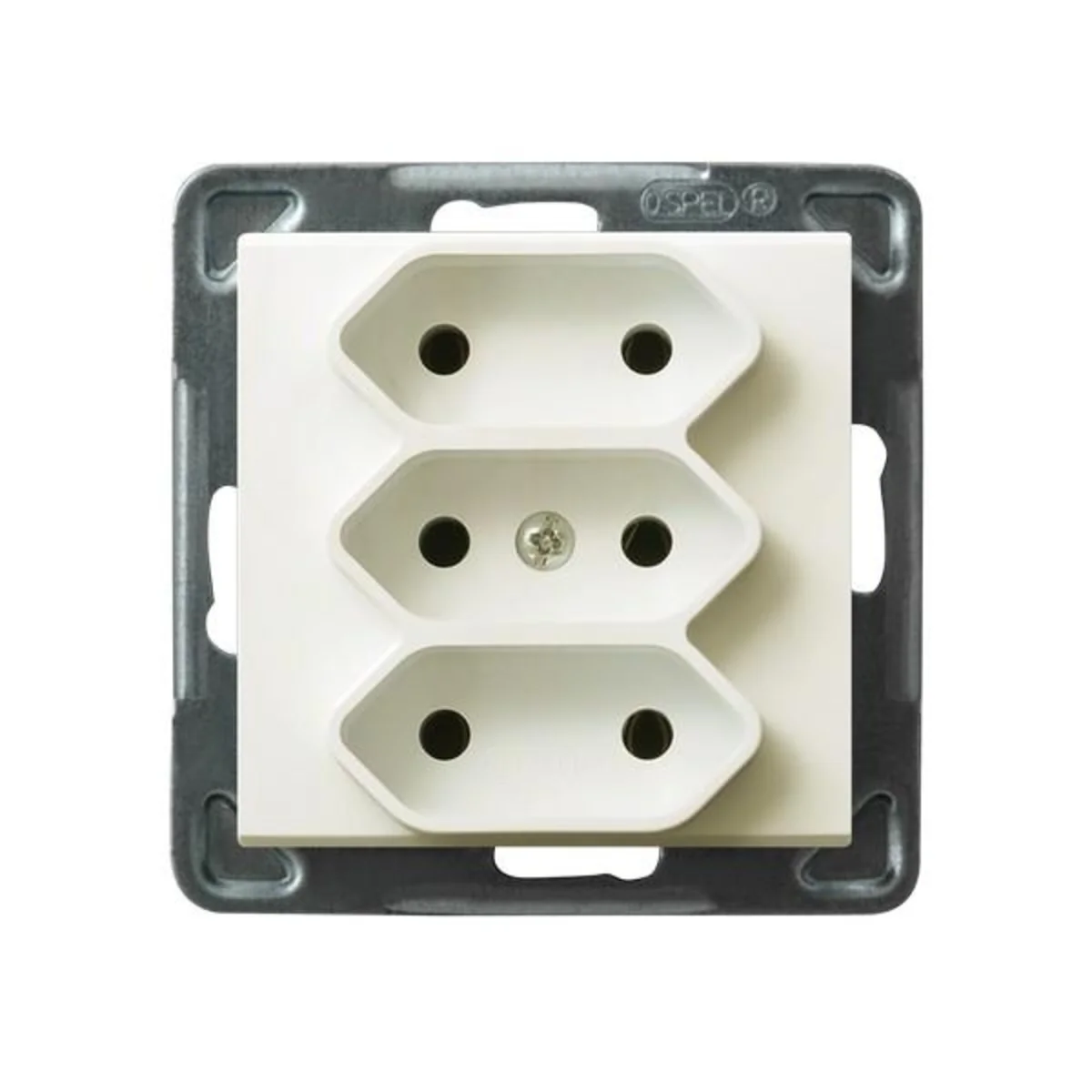

SONATA Triple socket EURO ecru GP-3R/M/27
local index:
MEE411OSPE
Catalog No:
GP-3R/M/27
EAN code:
5907577444884
Price:
4,90 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Electric socket for three flat plugs. To be equipped with a frame.
SERIES DESCRIPTION
The Sonata collection meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.
The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.
Technical data
-
Depth [mm]45
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
Rated current [A]2.5
-
FamilySONATA
-
Width [mm]71
-
GroundLack
-
Surface protectionNatural
-
BacklightNO
-
StandardEuropean
-
On the DATA keyNO
-
Exact materialPlastic Metal
-
Number of sockets3
-
ShapeSquare
-
Fixingclaws screws
-
Rated voltage [V]230
-
TypeElectric
-
Level of securityIP20
-
TypeFlush-mounted
-
Height [mm]71
-
Accurate colorEcru
-
Terminal typeThreaded
-
Shutters of current pathsNO
-
For the frame systemYes
-
PKWIU27.33.13.0
Other technical data
-
ModelMulti-standard socket
-
Okrągły styk ochronnyNo
-
Number of active contacts (flat)0
-
With built-in USB power supplyNo
-
Number of modules (module system)1
-
Connection typeScrewed terminal
-
With enhanced contact protectionNo
-
ColourWhite
-
TransparentNo
-
Eject-mechanismNo
-
With function lightingNo
-
Over voltage protectionNo
-
With miniature fuseNo
-
Mounting methodFlush-mounted
-
MaterialPlastic
-
Halogen freeYes
-
Surface finishingGlossy
-
With on/off switchNo
-
Rotated central insertNo
-
Nominal voltage250 V
-
Rated fault current0 mA
-
Impact strengthIK03
-
Device height75 mm
-
Min. depth of built-in installation box60 mm
-
Protective contactNo
-
Number of active contacts (round)0
-
With signal lampNo
-
Number of units3
-
Number of socket outlets switchable0
-
With hinged lidNo
-
Label space/information surfaceNo
-
RAL-number (similar)1013
-
LockableNo
-
Insulated mountingNo
-
With orientation lightingNo
-
Fault current protectionNo
-
Special power supplyNo special power supply
-
Type of fasteningMounting with claw and screw
-
Material qualityThermoplastic
-
Surface protectionUntreated
-
Anti-bacterial treatmentNo
-
With loop through functionNo
-
Nominal current16 A
-
Frequency0 ... 0 Hz
-
Suitable for degree of protection (IP)IP20
-
Device width75 mm
-
Device depth45 mm
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 10 pcs. |
| Width (m) | 0,162 |
| Length (m) | 0,290 |
| Depth (m) | 0,090 |
