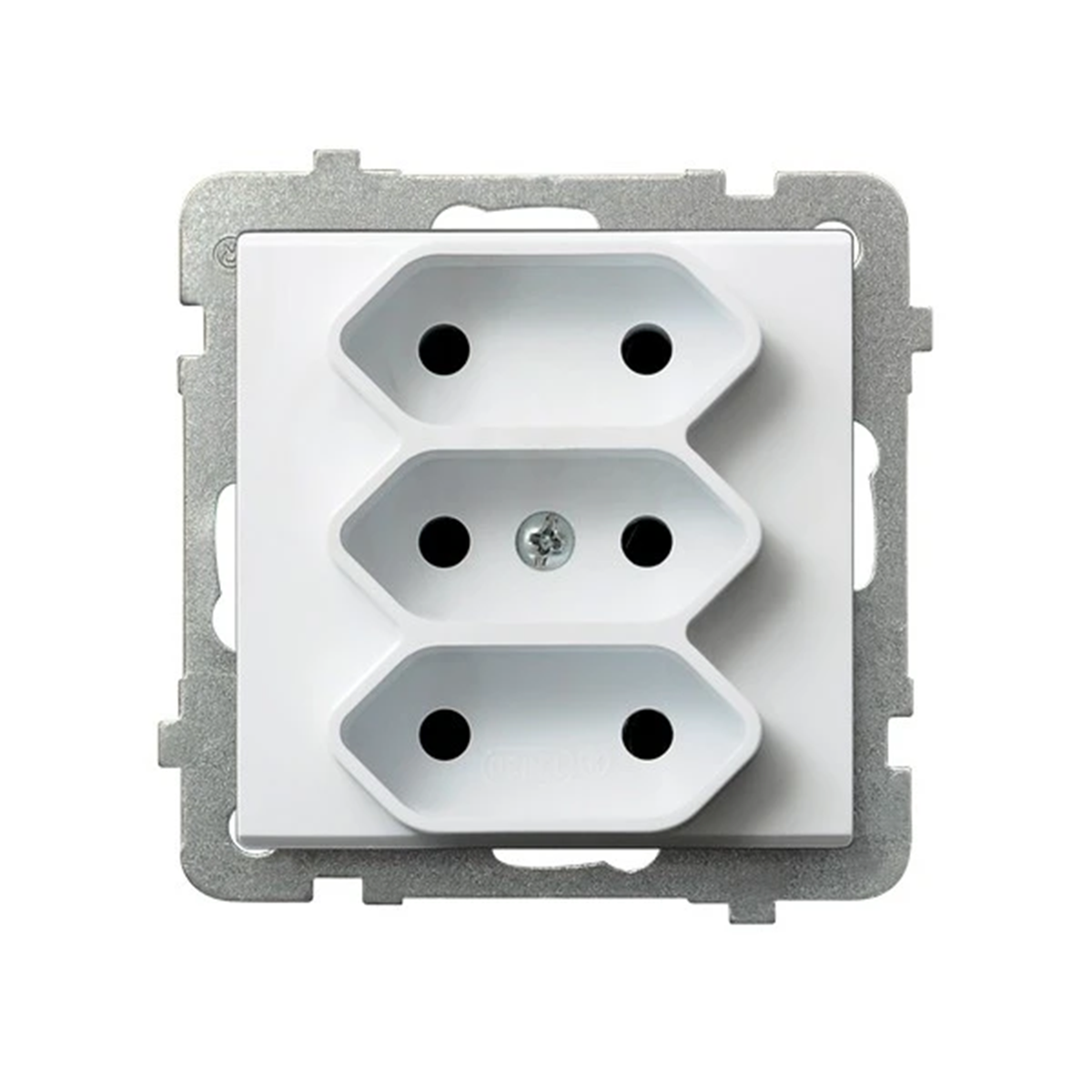

SONATA Triple EURO socket white GP-3R/M/00

Внутрішній артикул:
MEE410OSPE
№ каталоговий:
GP-3R/M/00
Код EAN:
5907577444341
Виробник: OSPEL
Depth [mm]: 45
Number of sockets: 3
Color: White
Ціна:
5,33 €
gross / шт.
(з ПДВ 23%)
Доставка за 3 години
до 2 тижнів (робочі дні)
Самовивіз через 1 год
Кількість шт.
(багаторазовий:
1
)
Додати в буфер обміну
Роздрукувати

Опис товару

Electric socket for three flat plugs. To be equipped with a frame.



SERIES DESCRIPTION

The Sonata  collection meets the highest technological standards, as well as a comprehensive and functional arrangement solution. This modular series is based on a strong and simple square.

The products of the Sonata series, differentiated in terms of usability and safety, are easily accessible  they are used in various rooms, both in living rooms, bedrooms, corridors, as well as in more demanding spaces – kitchens and bathrooms.

Технічні дані

  • Depth [mm]
    45
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    2.5
  • Family
    SONATA
  • Width [mm]
    71
  • Ground
    Lack
  • Surface protection
    Natural
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    71
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    Plastic Metal

Інші технічні дані

  • Model
    Multi-standard socket
  • Okrągły styk ochronny
    No
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of modules (module system)
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    White
  • Transparent
    No
  • Eject-mechanism
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Rated fault current
    0 mA
  • Impact strength
    IK03
  • Device height
    75 mm
  • Min. depth of built-in installation box
    60 mm
  • Protective contact
    No
  • Number of active contacts (round)
    0
  • With signal lamp
    No
  • Number of units
    3
  • Number of socket outlets switchable
    0
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    9003
  • Lockable
    No
  • Insulated mounting
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Untreated
  • Anti-bacterial treatment
    No
  • With loop through function
    No
  • Nominal current
    16 A
  • Frequency
    0 ... 0 Hz
  • Suitable for degree of protection (IP)
    IP20
  • Device width
    75 mm
  • Device depth
    45 mm

Інформація про виробника

  • Виробник
    OSPEL S.A.
  • Адреса
    42-436 Wierbka Główna 128 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Pudełko
Кількість 10 шт.
Ширина (м) 0,162
Довжина (м) 0,290
Глибина (м) 0,090
