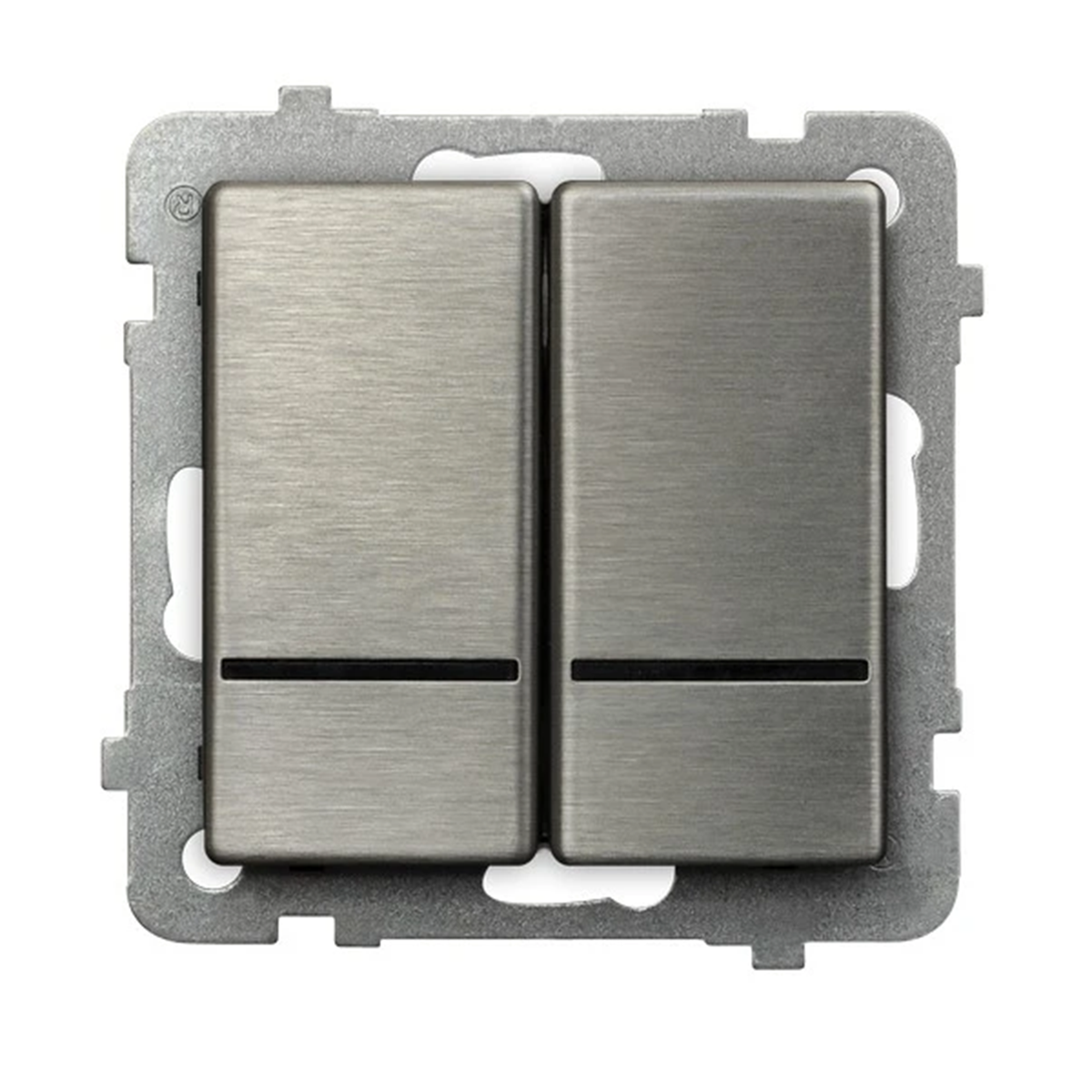

SONATA STEEL INOX Two-group connector, candlestick, with stainless steel base, without a frame ŁP-2RMS/M/37

local index:
MMT035OSPE
Catalog No:
ŁP-2RMS/M/37
EAN code:
5907577449957
Manufacturer: OSPEL
Depth [mm]: 42
Number of keys: 2
Color: Silver
Price:
34,00 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Candlestick connector from the Sonata Steel Inox series, from Ospel. The product catalog number is ŁP-2RMS/M/37.



FEATURES

  • Two-group.
  • With blue backlight (LTS lamp).
  • Module without frame .
  • Threadless terminals.
  • Color stainless steel.
  • Rated current  16AX.
  • Rated voltage 230V.
  • flush mounting.
  • Rating IP20.
  • Dimensions: 71 x 71 mm (height x width).



SERIES DESCRIPTION

The Sonata Stal Inox  series attracts attention with its appearance, it is a strong, characteristic accent on the wall. Particularly recommended for lofts and in the implementation of bold and minimalist projects.

Products from the Sonata Stal Inox series are made of high-quality, brushed stainless steel, characterized by modern style. These unusual and extremely elegant products will certainly find the appreciation of modern people and give the interiors a unique character.

Technical data

  • Depth [mm]
    42
  • Color
    Silver
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SONATA STAINLESS STEEL
  • Width [mm]
    71
  • Height [mm]
    71
  • Accurate color
    stainless steel
  • Mounting depth [mm]
    26
  • For the frame system
    Yes
  • Backlight type
    LTS lamp
  • PKWIU
    27.33.11.0
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws screws
  • Rated voltage [V]
    230
  • Type
    Candlestick
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    Brushing
  • Backlight
    Yes
  • Terminal type
    Threadless
  • Exact material
    Brushed steel
  • Backlight color
    Blue

Other technical data

  • Wiring system
    Off switch 2x1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Push button switch
    No
  • Mounting method
    Flush-mounted
  • With mounting plate
    No
  • Material quality
    Other
  • Surface protection
    Untreated
  • Colour
    Brass
  • Label space/information surface
    No
  • Function lighting
    Orientation
  • Suitable for degree of protection (IP)
    IP20
  • Rated current
    16 A
  • Feedback-signal contact
    No
  • Washing machine switch
    No
  • Device height
    75 mm
  • Built-in depth
    25 mm
  • Method of operation
    Rocker/button
  • Number of modules (module system)
    1
  • Number of rockers
    2
  • Type of fastening
    Mounting with claw and screw
  • Material
    Metal
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • RAL-number (similar)
    9023
  • Illumination
    Yes
  • Type of lighting
    Glow lamp
  • Nominal voltage
    250 V
  • Switching current for fluorescent lamps
    16 AX
  • Connection type
    Push-in clamp
  • Device width
    75 mm
  • Device depth
    42 mm

Bulk packaging

A kind of package Pudełko
Quantity 4 pcs.
Width (m) 0,140
Length (m) 0,162
Depth (m) 0,090
