SONATA STEEL INOX Terminal RTV socket ZAK-10 stainless steel GPA-10RMPZ/M/37
local index:
MEA025OSPE
Catalog No:
GPA-10RMPZ/M/37
EAN code:
5907577450144
Price:
24,54 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

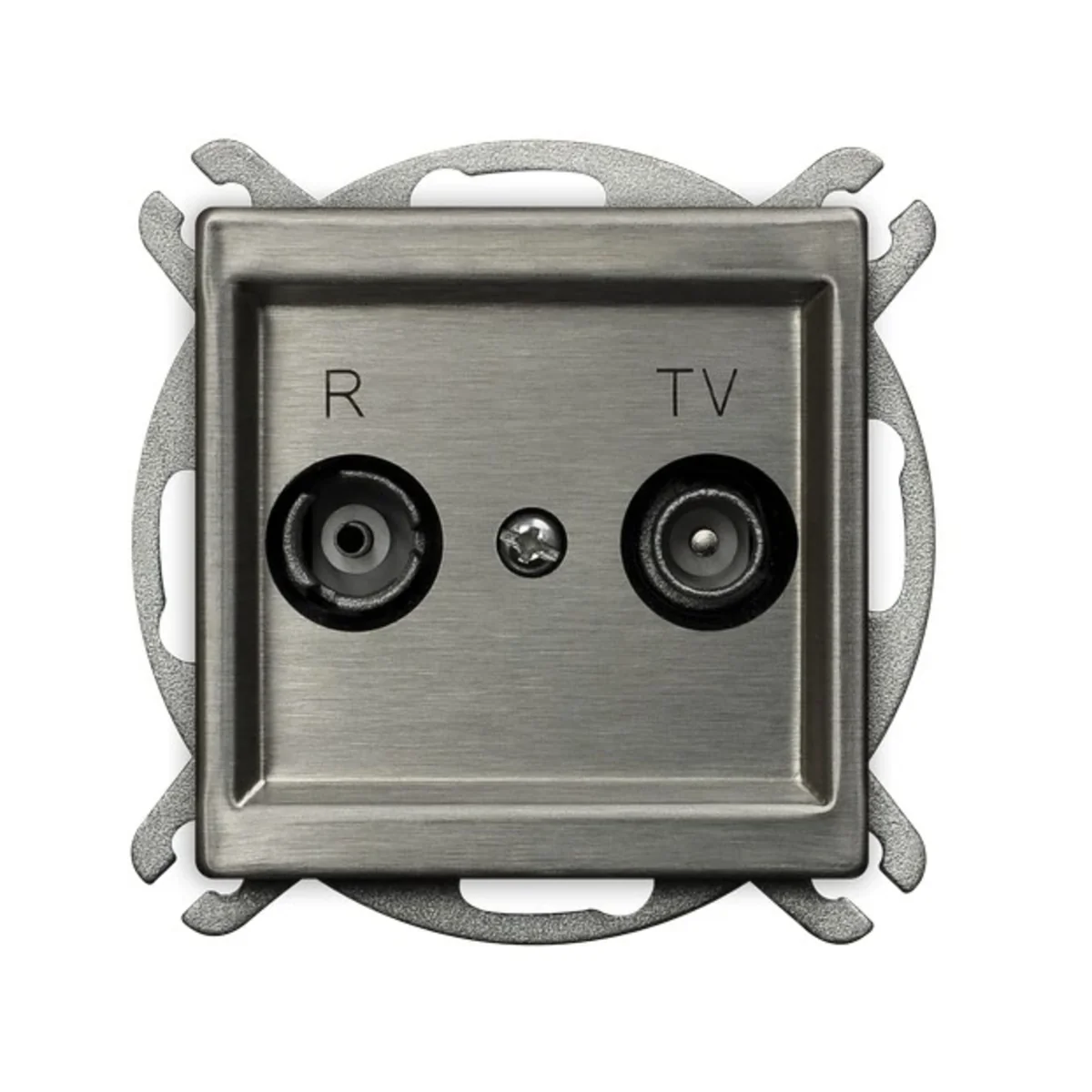

RTV antenna terminal socket from the Sonata Stal Inox series. It is designed to terminate a series installation. To be fitted with a frame.
Technical data
-
Depth [mm]36
-
ColorSilver
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]R: 10 TV: 10
-
VersionFinal
-
Surface protectionBrushing
-
Accurate colorstainless steel
-
Mounting depth [mm]26
-
VariantR TV
-
For the frame systemYes
-
PKWIU26.40.52.0
-
Number of sockets2
-
ShapeSquare
-
Fixingclaws screws
-
OverprintYes
-
FamilySONATA STAINLESS STEEL
-
Width [mm]71
-
TypeFlush-mounted
-
Height [mm]71
-
Frequency Range [MHz]R: 88-108 TV: 5-70 TV: 120-862
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
Exact materialPlastic Metal
Other technical data
-
ModelMultimedia end box
-
Number of modules (module system)1
-
Tap loss at 860 MHz0 dB
-
Number of outlets1
-
Through loss at 860 MHz10 dB
-
Suitable for remote power supplyNo
-
Type of fasteningMounting with claw and screw
-
RAL-number (similar)9023
-
Surface finishingGlossy
-
Material qualityThermoplastic
-
Mounting methodFlush-mounted
-
CoverComplete housing
-
Tap loss at 2150 MHz0 dB
-
Suitable for cable modemNo
-
Through loss at 2150 MHz0 dB
-
Frequency5 ... 860 MHz
-
ColourOther
-
Surface protectionLacquered
-
MaterialPlastic
-
Halogen freeYes
Bulk packaging
| A kind of package | Pudełko |
| Quantity | 4 pcs. |
| Width (m) | 0,140 |
| Length (m) | 0,162 |
| Depth (m) | 0,090 |
